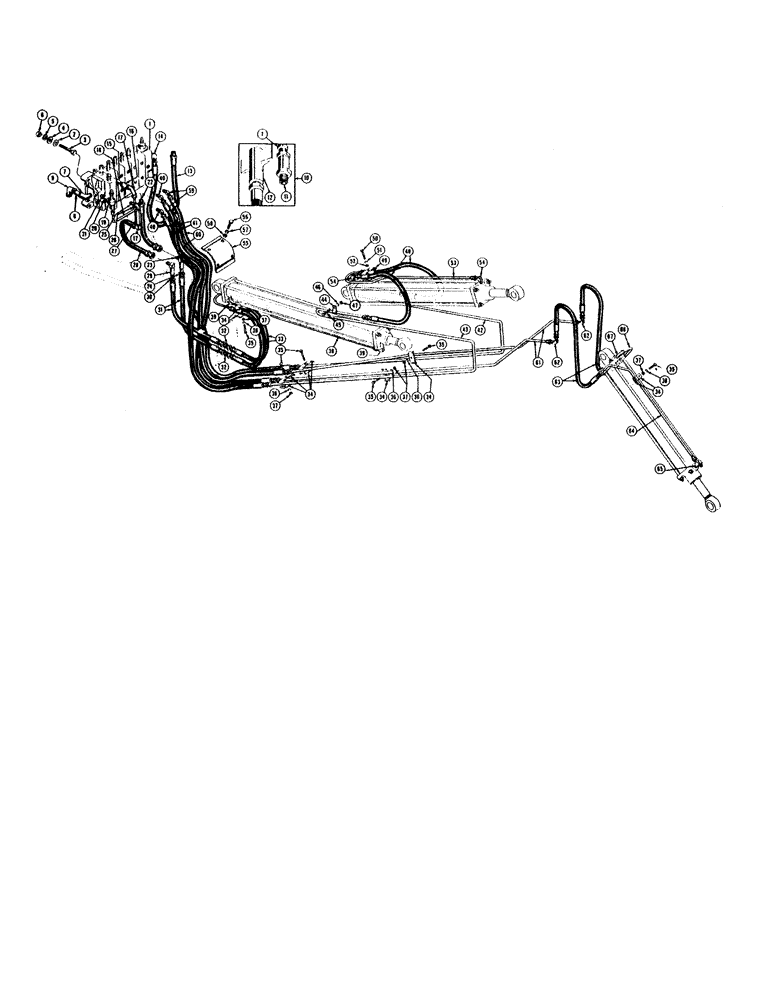

Запчасти Case 420B (204) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, (WITHOUT HIGH PRESSURE CARRY OVER)

VALVE

1шт.

1

34642

X

VALVE - hydraulic control, backhoe (See Figure 212 for breakdown) See D23812

1шт.

D23812

VALVE

- hydraulic control, backhoe (See Figure 212 for breakdown) (D23812 and 34642 are the same for field service)

1шт.

2

NLS

NO LONGER SERVICED

SHIM - valve mounting

1шт.

3

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2-20 NF x 2-1/2

3шт.

4

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D.)

3шт.

5

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2)

3шт.

7

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

2шт.

8

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe (3/4 NPT x 3 long)

1шт.

9

221-378

ELBOW,90 Degree, 3/4" NPT

- 90 degree female (3/4 JIC x 3/4 NPT)

1шт.

10

35146

DISCONNECT - quick (Not used on all models), Inlcudes: Ref. 11 and 12

1шт.

11

36262

DISCONNECT - quick (Male half)

1шт.

12

36263

DISCONNECT - quick (Female half)

1шт.

13

36232

HOSE ASSY.

HOSE - valve to quick disconnect (3/4" I.D. x 1-5/32" O.D. x 32")

1шт.

14

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4 JIC x 3/4 NPT)

1шт.

15

D21315

NIPPLE - pipe (1/2 NPT x 3-1/2 long)

1шт.

16

221-424

TEE,1/2" NPT

- pipe (1/2 NPT)

1шт.

17

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT)

2шт.

18

D20251

TUBE - control valve to relief valve

1шт.

19

33959

PIPE FITTING

VALVE - relief (See Figure 220 for breakdown) Use D24452 "985" on housing

1шт.

D24452

VALVE

- relief (See Figure 220 for breakdown) "2716" on housing

1шт.

20

D21315

NIPPLE - pipe (1/2 NPT x 3-1/2 long)

1шт.

21

221-60

TUBE

BUSHING - reducing (3/4 NPT x 1/2 NPT)

1шт.

22

D21317

HOSE - street elbow to R.H. male elbow (Replaces tube on some models) (1/2" I.D. x 7/8" O.D. x 22-1/2"), boom cylinder hydraulics

1шт.

23

50878

ROLLER

ELBOW - 90 degrees special, boom cylinder hydraulics

1шт.

24

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8-14 NF), boom cylinder hydraulics

1шт.

25

D21316

NIPPLE - pipe (1/2 NPT x 2 long), boom cylinder hydraulics

1шт.

26

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degrees street (1/2 NPT), boom cylinder hydraulics

1шт.

27

60374

VALVE

- control, flow (See Figure 218 for breakdown), boom cylinder hydraulics

1шт.

28

D21320

HOSE - flow control valve to L.H. male elbow (Replaces tube on same models) (1/2" I.D. x 7/8" O.D. x 15"), boom cylinder hydraulics

1шт.

29

50878

ROLLER

ELBOW - 90 degrees special, boom cylinder hydraulics

1шт.

30

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex., jam (7/8-14 NF), boom cylinder hydraulics

1шт.

31

D27478

HOSE ASSY.

HOSE - boom cylinder (Front section) (1/2" I.D. x 7/8" O.D. x 22"), hydraulics

2шт.

32

D21698

UNION

- bulkhead, boom cylinder hoses, hydraulics

2шт.

33

35209

HOSE ASSY.

HOSE - to boom cylinder (Rear section) (1/2" I.D. x 7/8" O.D. x 32"), hydraulics

2шт.

34

31665

COLLAR CLAMP

CLAMP - hose, rear section hose, boom cylinder hydraulics

8шт.

35

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Boom cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

5шт.

36

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , boom cylinder hydraulics 5/16"

5шт.

37

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), boom cylinder hydraulics

5шт.

38

35206

TUBE - boom cylinder rear port, hydraulics

1шт.

39

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT), boom cylinder hydraulics

2шт.

40

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male (5/8 JIC x 1/2 NPT), crowd cylinder hydraulics

2шт.

41

D21700

HOSE

- valve to tube (1/2" I.D. x 7/8" O.D. x 65"), crowd cylinder hydraulics

2шт.

42

D21712

TUBE - crowd cylinder, R.H., hydraulics

1шт.

43

D21713

TUBE - crowd cylinder, L.H., hydraulics

1шт.

44

D20043

CLAMP - tube, crowd cylinder hydraulics

2шт.

45

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd, Crowd cylinder hydraulics

2шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crowd cylinder hydraulics 1/4"

2шт.

47

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF), crowd cylinder hydraulics

2шт.

48

38410

HOSE

- tube to crowd cylinder (1/2" I.D. x 7/8" O.D. x 22-1/2"), hydraulics

2шт.

49

31665

COLLAR CLAMP

CLAMP - hose, crowd cylinder hydraulics

2шт.

50

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Crowd cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

1шт.

51

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , crowd cylinder hydraulics 5/16"

1шт.

52

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), crowd cylinder hydraulics

1шт.

53

36811

ELECTRIC CABLE

TUBE - crowd cylinder, rear port, hydraulics

1шт.

54

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male 90 degrees (5/8 JIC x 1/2 NPT), crowd cylinder hydraulics

2шт.

55

35192

BRACKET - hose mounting, crowd cylinder hydraulics

1шт.

56

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8-24 NF x 1-3/4, crowd cylinder hydraulics

4шт.

57

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, , crowd cylinder hydraulics 3/8"

4шт.

58

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF), crowd cylinder hydraulics

4шт.

59

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degrees male (5/8 JIC x 1/2 NPT), bucket cylinder hydraulics

2шт.

60

D21700

HOSE

- valve to tube (1/2" I.D. x 7/8" O.D. x 65"), bucket cylinder hydraulics

2шт.

61

D21715

TUBE - bucket cylinder, hydraulics

2шт.

62

D21699

ELBOW - 90 degrees bulkhead (5/8 JIC), bucket cylinder hydraulics

2шт.

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex., jam (7/8-14 NF) (Not shown), bucket cylinder hydraulics

2шт.

63

19178

HOSE

- bucket cylinder (1/2" I.D. x 7/8" O.D. x 33-1/2"), hydraulics

2шт.

64

35027

HYD TUBE

TUBE - bucket cylinder rear port, hydraulics

1шт.

65

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male (5/8 JIC x 1/2 NPT), bucket cylinder hydraulics

1шт.

66

D20255

TUBE - bucket cylinder front port, hydraulics

1шт.

67

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male (5/8 JIC x 1/2 NPT), bucket cylinder hydraulics

1шт.
