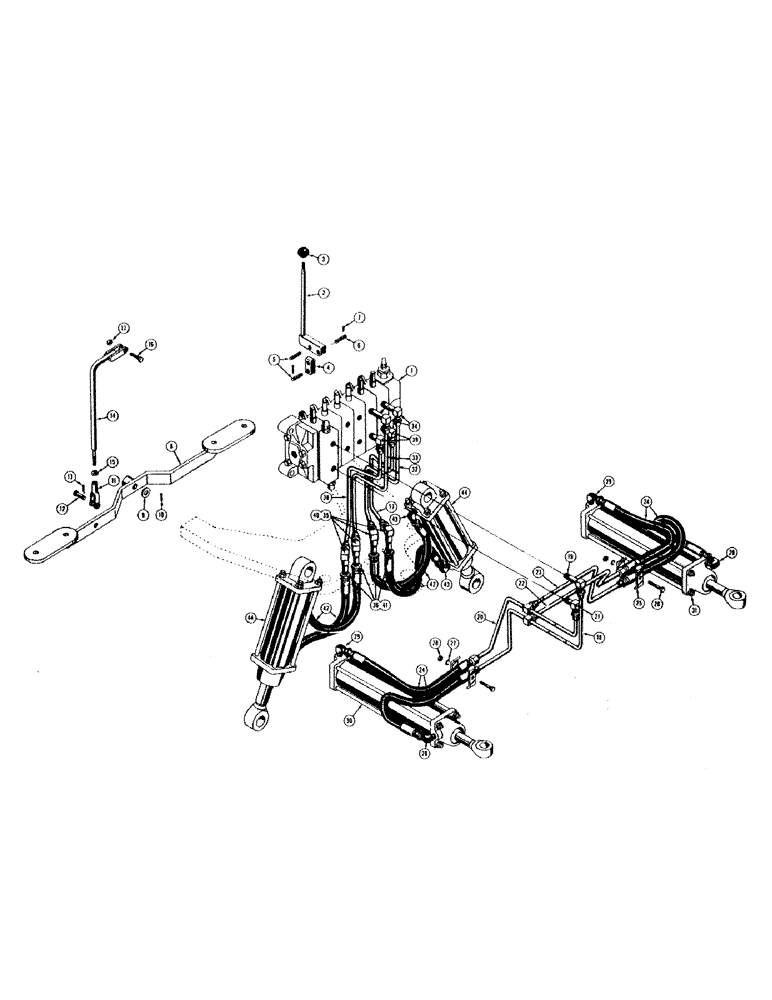

Запчасти Case 420B (202) - SWING AND STABILIZER CYLINDER HYDRAULICS, SWING CYLINDER

1

D23812

VALVE

- hydraulic control, backhoe (See Figure 212 for breakdown)

1шт.

D24433

VALVE

- hydraulic control, backhoe (See Figure 216 for breakdown)

1шт.

2

35382

LEVER - valve, boom cylinder control (11-1/4" long)

1шт.

35159

LEVER - valve, crowd and bucket cylinder control (9-3/4" long)

2шт.

35160

WASHER

LEVER - valve, stabilizer cylinder control (8-1/2" long)

2шт.

3

70213

KNOB

- control lever

5шт.

4

35161

LINK -, Serial Range: lever-valve

5шт.

5

35173

PIN

- valve lever to link (1-7/16" long)

10шт.

6

35172

PIN - valve to lever (1-1/8" long)

5шт.

7

132-25

COTTER PIN,3/32" x 5/8"

PIN - Split (Cotter), 3/32" x 5/8"

30шт.

8

36137

BAR - swing cylinder control

1шт.

35253

NUT

PEDAL - control bar

2шт.

74-412

SCREW - flat hd. machine (1/4-28 NF x 3/4)

4шт.

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

4шт.

9

195-45

WASHER,3/4"

1шт.

10

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - swing cylinder control rod

1шт.

12

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

13

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

14

36135

SUPPORT

ROD - swing cylinder control

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

1шт.

16

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8-24 NF x 1-3/4

1шт.

17

230-4616

LOCK NUT,3/8"-24, GA

NUT - hex., lock (3/8-24 NF)

1шт.

18

36193

TUBE - top of valve section to L.H. swing cylinder hydraulics

1шт.

19

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, special (1/2 JIC x 1/2 NPT), swing cylinder hydraulics

1шт.

20

36190

HYD TUBE

TUBE - bottom of valve section to L.H. swing cylinder hydraulics

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male (1/2 JIC x 1/2 NPT), swing cylinder hydraulics

1шт.

22

36196

SEAL

TUBE - R.H. swing cylinder hydraulics, bottom

1шт.

23

36194

LOCK WASHER

TUBE - R.H. swing cylinder hydraulics, top

1шт.

24

38349

HOSE - swing cylinder hydraulics(1/2" I.D. x 7/8" O.D. x 25-1/2")

4шт.

25

31665

COLLAR CLAMP

CLAMP - hose to foot rest, swing cylinder hydraulics

4шт.

26

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Swing cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

2шт.

27

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , swing cylinder hydraulics 5/16"

2шт.

28

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), swing cylinder hydraulics

2шт.

29

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male (1/2 JIC x 1/2 NPT), swing cylinder hydraulics

4шт.

30

38374

WASHER

CYLINDER - hydraulic, swing (L.H.) (See Figure 224 for breakdown)

1шт.

D23252

CYLINDER - hydraulic, swing (L.H.) (See Figure 224 for breakdown)

1шт.

31

38375

CYLINDER - hydraulic, swing (R.H.) (See Figure 224 for breakdown)

1шт.

D23253

CYLINDER - hydraulic, swing (R.H.) (See Figure 224 for breakdown)

1шт.

32

36198

TUBE - top of valve section to R.H., stabilizer cylinder hydraulics

1шт.

33

36200

SCREW

TUBE - top of valve section to L.H., stabilizer cylinder hydraulics

1шт.

34

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, special (1/2 JIC x 1/2 NPT), stabilizer cylinder hydraulics

2шт.

35

50879

PROFILE

ELBOW - 90 degrees male, special (1/2 JIC x 1/2 NPT), stabilizer cylinder hydraulics

2шт.

36

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4-16 NF), stabilizer cylinder hydraulics

2шт.

37

36206

FLEXIBLE HOSE

TUBE - bottom of valve section to R.H., stabilizer cylinder hydraulics

1шт.

38

36208

TUBE - bottom of valve section to L.H., stabilizer cylinder hydraulics

1шт.

39

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- extra long male (1/2 JIC x 1/2 NPT), stabilizer cylinder hydraulics

2шт.

40

50879

PROFILE

ELBOW - 90 degrees special, stabilizer cylinder hydraulics

2шт.

41

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4-16 NF), stabilizer cylinder hydraulics

2шт.

42

36210

HOSE

- (1/2" I.D. x 7/8" O.D. x 21-1/2"), stabilizer cylinder hydraulics

4шт.

43

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- (1/2 JIC x 1/2 NPT), stabilizer cylinder hydraulics

4шт.

44

38464

SEPARATOR

CYLINDER - hydraulic, stabilizer (See Figure 222 for breakdown)

2шт.
