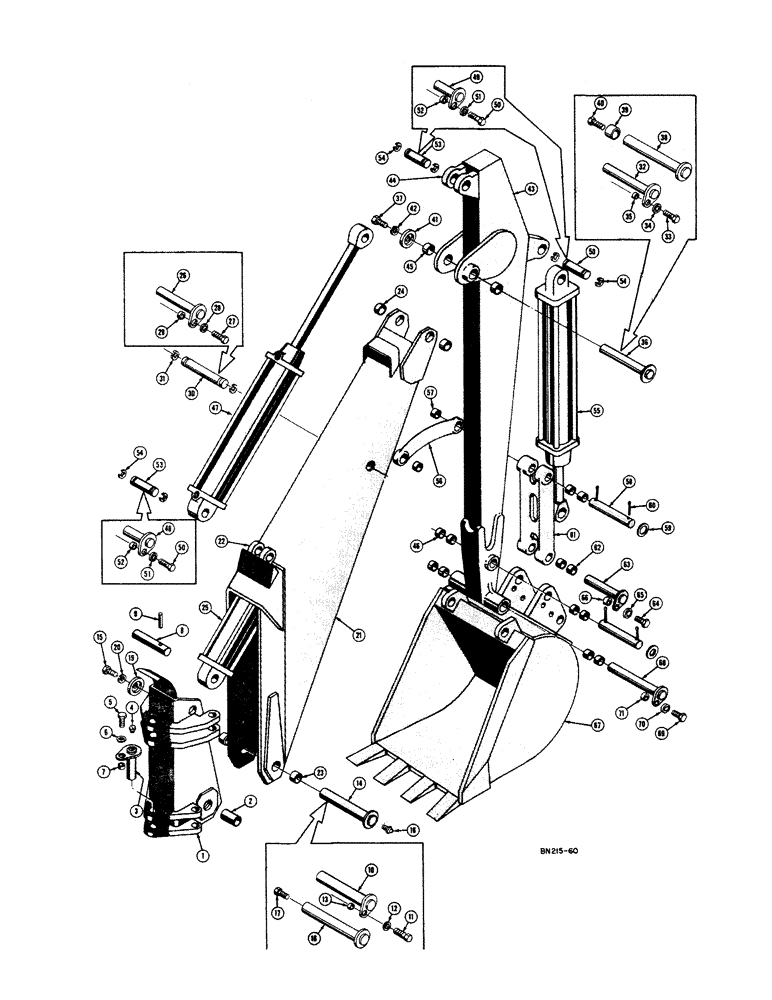

Запчасти Case 420B (196) - TOWER, BOOM, DIPPER ARM, AND BUCKET, TOWER, BOOM, DIPPER ARM

1

D23330

TOWER - boom swing, Includes: Ref. 2

1шт.

36113

TRACK ROD ASSY

TOWER - boom swing (Use D23330), Includes: Ref. 2

1шт.

2

D23870

BUSHING

- boom pivot

2шт.

31139

X

BUSHING - boom pivot (Use D23870)

2шт.

3

34895

PIN - pivot, Serial Range: tower-frame

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

2шт.

5

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

6

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

7

D23740

BUSHING

- bolt, lock head pin

2шт.

8

34949

PIN - pivot, boom, Serial Range: cylinder-tower

1шт.

9

49870

BOLT

PIN - driv-lok (3/8 x 2-1/2 - type E)

1шт.

10

36156

PIN - pivot, boom to tower (Use D23705)

1шт.

11

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2-20 NF x 3/4 (Used with 36156 pin), boom

1шт.

12

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (Used with 36156 pin), boom Int Tooth, 1/2"

1шт.

13

D23740

BUSHING

- bolt, lock head pin (Used with 36156 pin), boom

1шт.

14

D23705

PIN - pivot, boom to tower (See D26500)

1шт.

15

14-1220

HHCS - 3/4-16 NF x 1-1/4 (Used with 36156 and D23705 pins), boom

1шт.

16

D26500

PIN - pivot, boom to tower (11-5/8" long, for use on repaired boom)

1шт.

17

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

(Used with D26500 pin), boom Hex, 3/4"-10 x 1 1/4", G5

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000), boom

1шт.

19

34948

WASHER - boom pivot pin (13/16" I.D. x 3" O.D.)

1шт.

20

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Boom 3/4"

1шт.

21

36098

BOOM - backhoe, Includes: Ref. 22 - 24

1шт.

22

34714

BRAKE SHOE

ANCHOR - crowd cylinder, boom

1шт.

23

D23203

BUSHING

- lower pivot, boom

2шт.

24

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- upper pivot, boom

2шт.

25

36070

TOY

CYLINDER - hydraulic, boom (3-1/2") (See Figure 226 for breakdown) Use D24418

1шт.

D24418

CYLINDER - hydraulic, boom (4") (See Figure 228 for breakdown)

1шт.

26

34897

PIN - pivot, boom cylinder to boom (Use D23714 and D21856)

1шт.

27

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1 (Used with 34897 pin), boom

1шт.

28

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (Used with 34897 pin), boom Int Tooth, 1/2"

1шт.

29

D23740

BUSHING

- bolt, lock head pin (Used with 34897 pin), boom

1шт.

30

D23714

PIN - pivot, boom, Serial Range: cylinder-boom

1шт.

31

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

RING, Retaining, , used with D23714 pin, boom #X137, 1.268" Dia, E-Type

1шт.

32

34896

PIN - pivot, dipper arm to boom (Use D23710)

1шт.

33

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1 (Used with 34896 pin), boom

1шт.

34

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (Used with 34896 pin), boom Int Tooth, 1/2"

1шт.

35

D23740

BUSHING

- bolt, lock head pin (Used with 34896 pin), boom

1шт.

36

D23710

PIN

- pivot, boom to dipper arm (See D26501)

1шт.

37

14-1220

HHCS - 3/4-16 NF x 1-1/4 (Used with 34896 and D23710 pin), boom

1шт.

38

D26501

PIN - pivot, boom to dipper arm (10-7/8" long, for use on repaired boom)

1шт.

39

D20201

BUSHING

- D26501 pin, boom to dipper arm (For use on repaired boom)

1шт.

40

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

(Used with D26501 pin), boom Hex, 3/4"-10 x 1 1/4", G5

1шт.

41

38617

WASHER - boom to dipper arm pivot pin (1-17/32" I.D. x 2-1/2" O.D.)

1шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Boom 3/4"

1шт.

43

36030

ROLLER

ARM - dipper, Includes: Ref. 44 - 46

1шт.

44

34714

BRAKE SHOE

ANCHOR - crowd and bucket cylinder, dipper arm

2шт.

45

D21903

BUSHING

- boom pivot, dipper arm

2шт.

31148

BUSHING - boom pivot (Use D21903), dipper arm

2шт.

46

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket and link pivot. dipper arm

8шт.

47

36770

CYLINDER - hydraulic, crowd (See Figure 230 for breakdown), dipper arm

1шт.

48

D20285

PIN - pivot, crowd cylinder to boom (Use D23715 and D21856), dipper arm

1шт.

49

31109

PIN ASSY.

PIN - pivot, crowd cylinder to dipper arm (Use D23715 and D21856)

1шт.

49

31109

PIN ASSY.

PIN - pivot, bucket cylinder to dipper arm (Use D23715 and D21856)

1шт.

50

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1 (Used with D20285 and 31109 pin), dipper arm

2шт.

50

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1 (Used with 31109 pin), dipper arm

1шт.

51

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (Used with D20285 and 31109 pins), dipper arm Int Tooth, 1/2"

2шт.

51

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (Used with 31109 pin), dipper arm Int Tooth, 1/2"

1шт.

52

D23740

BUSHING

- bolt, lock head pin (Used with D20285 and 31109 pins), dipper arm

2шт.

52

D23740

BUSHING

- bolt, lock head pin (Used with 31109 pin), dipper arm

1шт.

53

D23715

PIN - pivot, crowd cylinder to boom and dipper arm

2шт.

53

D23715

PIN - pivot, bucket cylinder to dipper arm

1шт.

54

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

RING, Retaining, , D23715 pin, dipper arm #X137, 1.268" Dia, E-Type

4шт.

54

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

RING, Retaining, , D23715 pin, dipper arm #X137, 1.268" Dia, E-Type

1шт.

55

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER - hydraulic, bucket (See Figure 232 for breakdown) Use D23774, dipper arm

1шт.

D23774

CYLINDER - hydraulic, bucket (See Figure 232 for breakdown), dipper arm

1шт.

56

34973

LINK - bucket, dipper arm, Includes: Ref. 57

2шт.

57

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- link, dipper arm

2шт.

58

34999

PIN - pivot, link to bucket cylinder and dipper arm

2шт.

59

32625

WASHER - pin (1-9/32" I.D. x 2-1/2" O.D.), dipper arm

4шт.

60

132-152

PIN

- cotter (1/4 x 1-3/4), dipper arm

4шт.

61

34974

LINK - dump, bucket, dipper arm

1шт.

62

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- link, dipper arm

8шт.

63

35290

PIN

- pivot, bucket to dump link, dipper arm

1шт.

64

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1, dipper arm

1шт.

65

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Dipper arm Int Tooth, 1/2"

1шт.

66

D23740

BUSHING

- bolt, lock head pin, dipper arm

1шт.

67

D23360M

BUCKET - backhoe (See page 200 for breakdown and optional buckets), dipper arm

1шт.

68

35288

PIN - pivot, bucket to dipper arm

1шт.

69

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1, dipper arm

1шт.

70

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Dipper arm Int Tooth, 1/2"

1шт.

71

D23740

BUSHING

- bolt, lock head pin, dipper arm

1шт.
