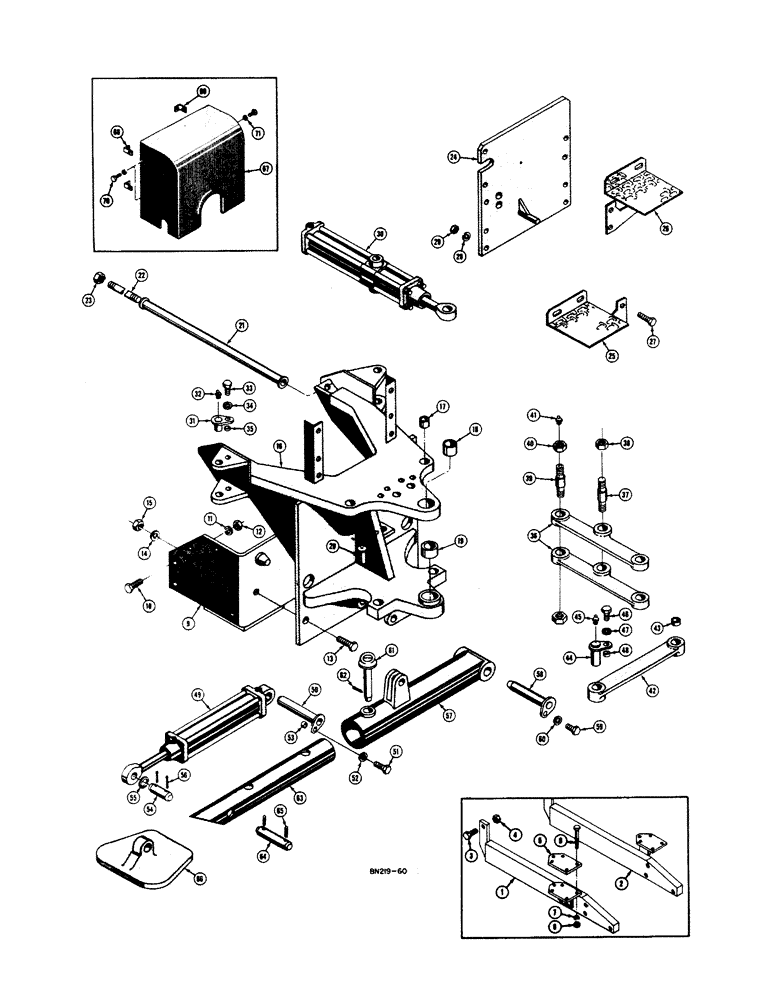

Запчасти Case 420B (192) - MOUNTING PARTS, SWING LINKAGE, AND STABILIZERS

1

D20665

ARM - support, L.H.

1шт.

2

D20666

ARM - support, R.H.

1шт.

3

14-1656

HHCS - 1-14 NF x 3-1/2

2шт.

4

232-46116

LOCK NUT,1"-14, GC

NUT - hex., lock (1-14 NF)

2шт.

5

DR10002

BRACKET - frame to rear axle

2шт.

6

14-10112

BOLT (MACHINE),Hex, 5/8" - 18 x 7", Gr 5

HHCS - 5/8-18 NF x 7

8шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

25-1110

NUT,5/8"-18, G5

- hex. (5/8-18 NF)

8шт.

9

D20670

PLATE - mounting

1шт.

10

14-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

HHCS - 3/4-16 NF x 3-1/2

6шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

12

25-1112

NUT,3/4"-16, G5

- hex. (3/4-16 NF)

6шт.

13

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS - 1-14 NF x 2-1/2

2шт.

14

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

15

25-1116

NUT,1"-14, G5

- hex. (1-14 NF)

2шт.

16

38440

BRACKET - mounting, Includes: Ref. 17 - 20

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- swing link

4шт.

18

36121

BUSHING

- tower pivot, upper

1шт.

19

D23203

BUSHING

- tower pivot, lower

1шт.

70466

BUSHING

- tower pivot, lower (Use D23203)

1шт.

20

35395

PIN - transport locking

1шт.

21

D20682

TUBE - spacer, tie rod

2шт.

22

20680

ROD - tie

2шт.

23

231-46112

LOCK NUT,3/4"-16, GB

NUT - hex., lock (3/4-16 NF)

4шт.

24

36646

CASING, BEARING ROLL

PLATE - mounting, valve

1шт.

25

36084

SCREW

REST - foot, L.H.

1шт.

26

36085

O-RING

REST - foot, R.H.

1шт.

27

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2-20 NF x 1-3/4

6шт.

28

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

6шт.

29

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

6шт.

30

38374

WASHER

CYLINDER - hydraulic, swing (L.H.) 3" tube O.D. (See Figure 224 for breakdown)

1шт.

D23252

CYLINDER - hydraulic, swing (L.H.) 2-7/8" tube O.D. (See Figure 224 for breakdown)

1шт.

38375

CYLINDER - hydraulic, swing (R.H.) 3" tube O.D. (See Figure 224 for breakdown)

1шт.

D23253

CYLINDER - hydraulic, swing (R.H.) 2-7/8" tube O.D. (See Figure 224 for breakdown)

1шт.

31

35031

PIN

- pivot, swing cylinder

4шт.

32

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degrees grease, 1/8 NPT (Lincoln #5300)

4шт.

33

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2-20 NF x 3/4

4шт.

34

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

35

D23740

BUSHING

- bolt, lockhead pin

4шт.

36

D20158

LINK - swing, front

4шт.

37

D21332

BOLT - pivot, swing, Serial Range: cylinder-link

2шт.

38

131-370

LOCK NUT

NUT - hex., lock (1-14 NF)

4шт.

39

D21332

BOLT - pivot, link to frame and link

4шт.

40

131-370

LOCK NUT

NUT - hex., lock (1-14 NF)

8шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

4шт.

42

36088

LINK - swing, rear, Includes: Ref. 43

2шт.

43

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rear swing link

4шт.

44

D21331

PIN -, Serial Range: link-tower

2шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

46

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 3/4

2шт.

47

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

48

D23740

BUSHING

- bolt, lockhead pin

2шт.

49

38464

SEPARATOR

CYLINDER - hydraulic stabilizer (See Figure 222 for breakdown)

2шт.

50

34961

PIN - pivot, stabilizer, Serial Range: cylinder-frame

2шт.

51

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2-20 NF x 3/4

2шт.

52

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

53

D23740

BUSHING

- bolt, lockhead pin

2шт.

54

35037

PIN - pivot, cylinder to stabilizer arm

2шт.

55

32625

WASHER - stabilizer pin (1-9/32" I.D. x 2-1/2" O.D. x 11/64")

4шт.

56

132-152

PIN

- cotter (1/4 x 1-3/4)

4шт.

57

36269

ARM - stabilizer, R.H.

1шт.

36270

ARM - stabilizer, L.H.

1шт.

58

34629

PIN - pivot, stabilizer, Serial Range: arm-frame

2шт.

59

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2-20 NF x 3/4

2шт.

60

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

61

38679

PIN - stabilizer arm to lower leg

2шт.

62

132-152

PIN

- cotter (1/4 x 1-3/4)

2шт.

63

36266

LEG - stabilizer

2шт.

64

36268

SPRING

PIN - pivot, stabilizer, Serial Range: leg-foot

2шт.

65

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Stabilizer pin 1/4" x 2", Slotted

4шт.

66

35731

BUSHING

FOOT - stabilizer, created (See D10651M)

2шт.

D100651M

FOOT - stabilizer, kit for street and cemetary (Optional) (Machinery item)

1шт.

D23326

FOOT

- stabilizer, street and cemetary

2шт.

D26104

PIN

- pivot, Serial Range: foot-leg

2шт.

D26918

SNAP RING,#125, Ext

- retaining, (3/32" thick)

2шт.

D25278

RING, SNAP

SNAP RING - retaining (1/16" thick)

4шт.

32625

WASHER - pin (1-9/32" I.D. x 2-1/2" O.D. x 11/64")

4шт.

67

D20557

SHIELD - valve

1шт.

68

D20644

BRACKET - mounting, L.H.

2шт.

69

D20645

BRACKET - mounting, R.H.

1шт.

70

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

HHCS - 3/8-24 NF 5/8

4шт.

71

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

4шт.
