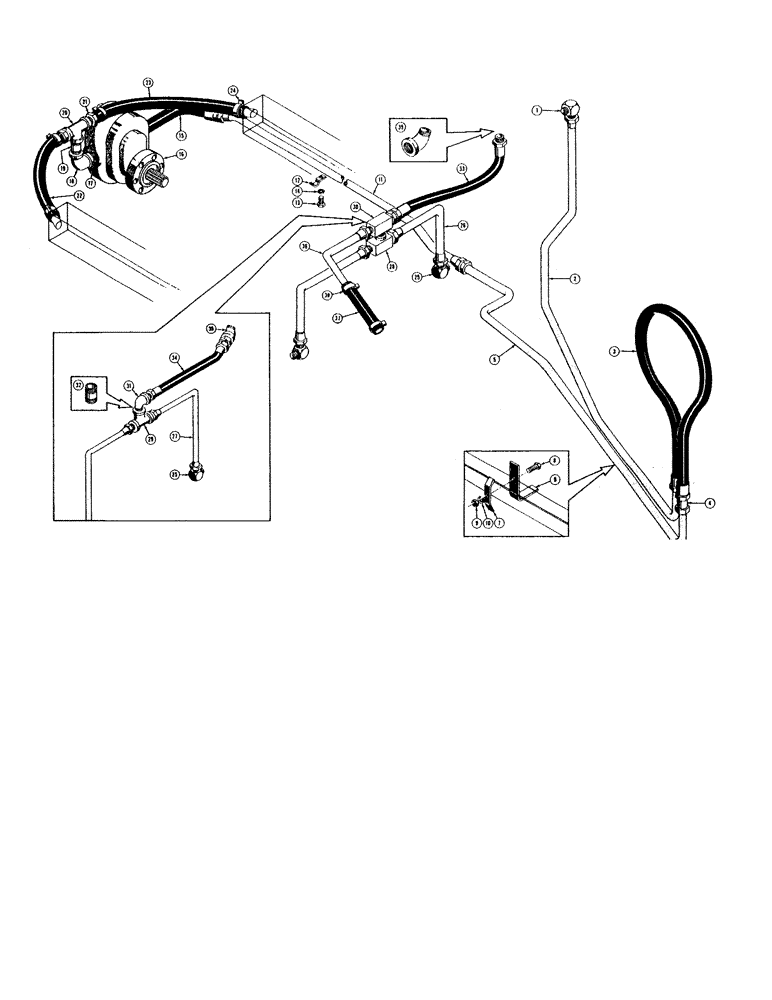

Запчасти Case 420B (190) - BASIC BACKHOE HYDRAULICS, (WITH EQUALIZER TUBES)

1

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 45 degree male (3/4 JIC x 3/4 NPT)

1шт.

2

D20440

TUBE - backhoe valve to loader valve

1шт.

3

36232

HOSE ASSY.

HOSE - backhoe valve to loader valve (3/4" I.D. x 1-5/32" O.D. x 32")

1шт.

4

221-330

COUPLING - pipe (3/4 NPT)

1шт.

35146

DISCONNECT - quick (Used on some models) (Not shown)

1шт.

36262

DISCONNECT - quick (Male half)

1шт.

36263

DISCONNECT - quick (Female half)

1шт.

5

D20436

TUBE - pump to backhoe, rear section

1шт.

6

D20438

BRACKET - pump pressure line clamp

1шт.

7

D20045

PLATE ASSY.

CLAMP - tube

1шт.

8

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

9

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

10

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

11

D21243

TUBE - pump to backhoe, front section

1шт.

12

49789

CLAMP

- tube

3шт.

13

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

3шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

D20994

HOSE - pump outlet (3/4" I.D. x 1-5/32" O.D. x 11-1/2")

1шт.

16

D25370

PUMP - hydraulic (See page 186 for breakdown)

1шт.

D24447

PUMP - hydraulic (See page 184 for breakdown) Use D25370

1шт.

17

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4 NPT x 1-3/8

1шт.

18

221-378

ELBOW,90 Degree, 3/4" NPT

- 90 degree female (3/4 NPT)

1шт.

19

221-216

NIPPLE, LUBE

NIPPLE - pipe, 3.4 NPT x 2-1/2

1шт.

20

221-425

FITTING,3/4" NPT

TEE - pipe, 3/4 NPT

1шт.

21

18987

TUBE - pump suction line

2шт.

22

32798

HOSE

- L.H. reservoir to pump (1" I.D. x 1-1/2" O.D. x 6")

1шт.

23

D23886

HOSE

- R.H. reservoir to pump (1" I.D. x 1-1/2" O.D. x 17")

1шт.

24

49766

AUGER

CLAMP - hose, pump suction hose

4шт.

25

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4 JIC x 3/4 NPT)

2шт.

26

D24718

TUBE - equalizer, tee to reservoir (From serial #4028525)

2шт.

27

D23883

TUBE - equalizer, tee to reservoir (Up to serial #4028525)

2шт.

28

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- equalizer tube (3/4 JIC x 3/4 NPT) (From serial #4028525)

1шт.

29

221-425

FITTING,3/4" NPT

TEE - equalizer tube (3/4 NPT) (Up to serial #4028525)

1шт.

30

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- filter return (3/4 JIC x 3/4 NPT)

1шт.

31

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, filter return 90º, 3/4"-14, NPT

1шт.

32

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4 NPT x 1-3/8 (Used on field installed high pressure carry-over)

1шт.

33

D23889

HOSE - filter to equalizer tube with high pressure carry-over (3/4" I.D. x 1-1/4" O.D. x 17-1/2")

1шт.

34

D21034

HOSE - filter to equalizer tube without high pressure carry-over (3/4" I.D. x 1-5/32" O.D. x 22")

1шт.

35

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 90 degrees street (3/4 NPT)

1шт.

36

D24725

TUBE - high pressure carry-over (Front section)

1шт.

37

D24728

HOSE

- coupling, high pressure carry-over (3/4" I.D. x 1-1/4" O.D. x 4-1/2")

1шт.

38

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, high pressure carry-over line

2шт.
