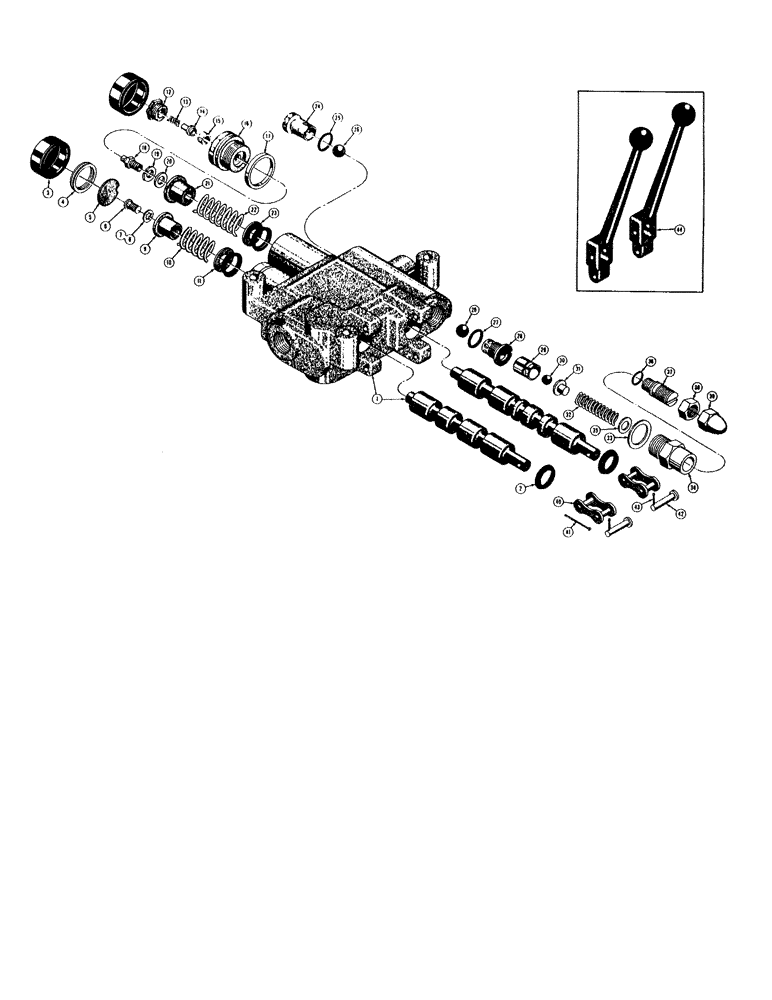

Запчасти Case 420B (180) - D24387 LOADER HYDRAULIC CONTROL VALVE

D24387

SPOOL

VALVE - hydraulic control

1шт.

The above valve has 5/8" dia. check balls as identified by the number "2712" on housing. If number "1225" is on the housing, refer to section on 38256 control valve.

1шт.

1

D24393

HOUSING AND SPOOLS - matched set (Use D24387)

1шт.

2

36642

SEAL

"O" RING - seal, spool

4шт.

3

36645

CAP

- rubber, spool end

2шт.

4

36633

LID

SNAP RING - retaining stop disc

1шт.

5

36631

HOUSING

- stop, spool

1шт.

6

36626

HOSE CLIP

BOLT - centering spring

1шт.

7

36628

LOCK WASHER

- lock

2шт.

8

36644

X

WASHER - flat (Use 36628)

1шт.

9

CAS36630

COLLAR

- stop

1шт.

10

36632

SPRING

- centering, 3 position spool

1шт.

11

36650

WASHER

- spool stop

1шт.

12

36656

CLIP

CAP - float detent spring

1шт.

13

36658

ROD

SPRING - float detent

1шт.

14

NLS

NO LONGER SERVICED

HOLDER - finger, float detent

1шт.

15

36655

- float detent

3шт.

16

36653

- float detent

1шт.

17

36666

WASHER

- float detent cap

1шт.

18

36651

NUT

ADAPTER - float detent

1шт.

19

36662

GEAR

WASHER - lock, float spool

1шт.

20

36661

SHAFT

WASHER - float spool

1шт.

21

36652

COLLAR

- float spool

1шт.

22

D32602

VALVE SPRING

- centering, 4 position spool

1шт.

23

36650

WASHER

- spool stop

1шт.

24

D23929

PLUG

- check ball

1шт.

25

D23932

X

"O" RING - seal, D23929 plug

1шт.

26

D23930

BALL

- check

2шт.

27

D23928

O-RING

- seal, valve seat

1шт.

28

D24394

SEAT - relief valve

1шт.

29

D24392

COLLAR - jam

1шт.

30

O7210AB

X

BALL - relief valve (1/2" dia.)

1шт.

31

CAS34120

BUSHING

SPACER - relief valve spring

1шт.

32

36659

SPRING

- relief valve

1шт.

33

34115

GASKET

- relief valve body

1шт.

34

34113

BODY

- relief valve

1шт.

35

36660

WASHER

- relief valve spring

1шт.

36

34112

CLIP

"O" RING - seal, adjusting screw

1шт.

37

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

38

34111

X

NUT - jam, relief valve adjusting screw

1шт.

39

34109

CAP - dust, relief valve

1шт.

40

36640

DRAG LINK

LINK - valve lever

2шт.

41

132-13

PIN

- cotter (1/16 x 1-1/2)

2шт.

42

36627

SEAT

PIN - control valve lever

2шт.

43

36625

X

PIN - cotter (5/64 x 1/2)

2шт.

44

D23722

HANDLE

LEVER - valve

2шт.
