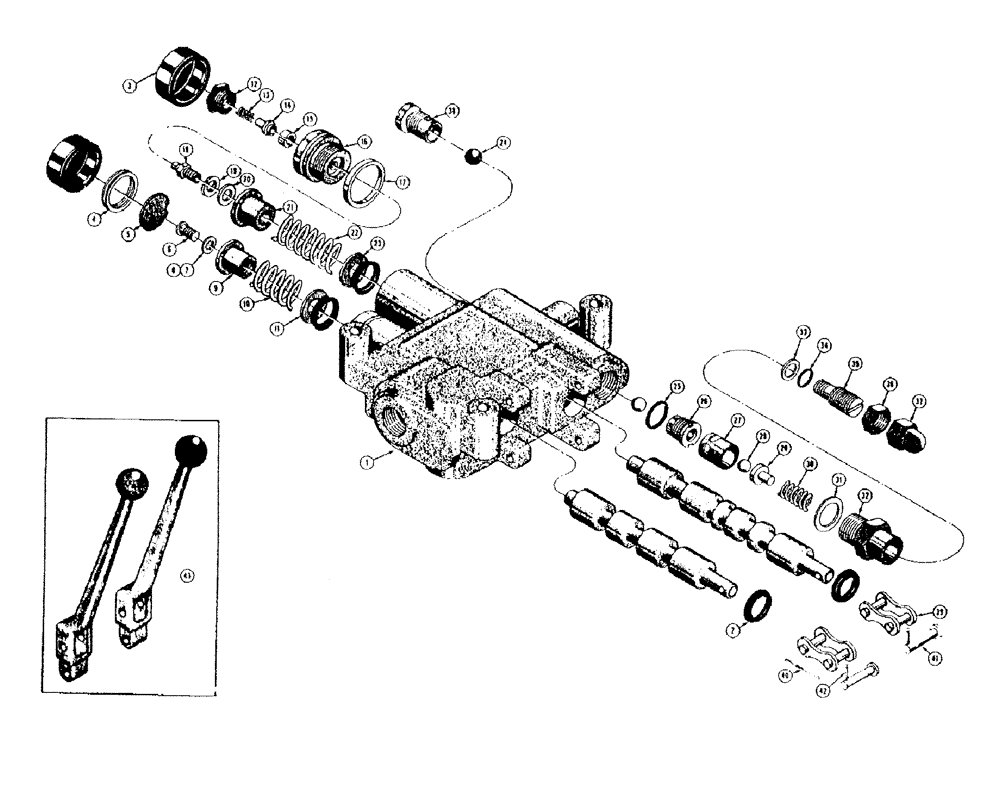

Запчасти Case 420B (178) - 38256 LOADER HYDRAULIC CONTROL VALVE

38256

PIN

VALVE - hydraulic control, Includes: Ref. 1 - 42

1шт.

The above valve has 9/16" dia. check balls and is identified by the number "1225" on the housing. If the number "2712" is on the housing, refer to section on D24387 control valve. Service is provided on component parts only. When a complete valve is required, order D24387, see Figure 180

1шт.

1

5465

SPARE PART HOUSING AND SPOOLS - matched set, use D24387 see Figure 180

1шт.

2

36642

SEAL

O-RING - seal, spool

4шт.

3

36645

CAP

CAP - rubber, spool end

2шт.

4

36633

LID

SNAP RING - retaining, stop disc

1шт.

5

663023R1

CAP

DISC - stop, spool

1шт.

6

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - centering spring

1шт.

7

36628

LOCK WASHER

WASHER - lock

2шт.

8

36644

X

WASHER - flat, use 36628

1шт.

9

36630

DRAWBAR SUPPORT

COLLAR - stop

1шт.

10

36632

SPRING

SPRING - centering

1шт.

11

36650

WASHER

WASHER - stop

1шт.

12

36656

CLIP

CAP - float detent spring

1шт.

13

36658

ROD

SPARE PART SPRING - float detent

1шт.

14

NLS

NO LONGER SERVICED

HOLDER - finger, float detent

1шт.

15

NLS

NO LONGER SERVICED

FINGER - float detent

3шт.

16

36653

CAP - float detent

1шт.

17

NLS

NO LONGER SERVICED

GASKET - float detent cap

1шт.

18

36651

NUT

ADAPTOR - float detent

1шт.

19

36662

GEAR

WASHER - lock, float spool

1шт.

20

36661

SHAFT

WASHER - float spool

1шт.

21

36652

COLLAR

COLLAR - float spring

1шт.

22

D32602

VALVE SPRING

SPRING - centering, 4 position spool

1шт.

23

36650

WASHER

WASHER - float stop

1шт.

24

O4896CS

SPARE PART BALL - check

2шт.

25

O8416AB

X

O-RING - seal, valve seat

1шт.

26

36635

SHIELD

SEAT - relief valve

1шт.

27

D24392

COLLAR - jam

1шт.

28

O7210AB

X

BALL - relief valve 1/2" dia.

1шт.

29

CAS34120

BUSHING

SPACER - relief valve spring

1шт.

30

36659

SPRING

SPRING - relief valve

1шт.

31

34115

GASKET

GASKET - relief valve body

1шт.

32

34113

BODY

BODY - relief valve

1шт.

33

CAS36630

COLLAR

WASHER - relief valve spring

1шт.

34

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

O-RING - seal, adjusting screw

1шт.

35

34110

ADJUSTMENT SCREW

SCREW - adjusting, relief valve

1шт.

36

34111

X

NUT - jam, relief valve adjusting screw

1шт.

37

34109

SPARE PART CAP - dust, relief valve

1шт.

38

36634

DISC

PLUG - check ball

1шт.

39

36640

DRAG LINK

LINK - valve lever

2шт.

40

132-13

PIN

PIN - cotter 1/16" x 1-1/2"

2шт.

41

36627

SEAT

PIN - lever, control valve

2шт.

42

36625

X

PIN - cotter, lever pin 5/64" x 1/2"

2шт.

43

D23722

HANDLE

LEVER - valve

2шт.
