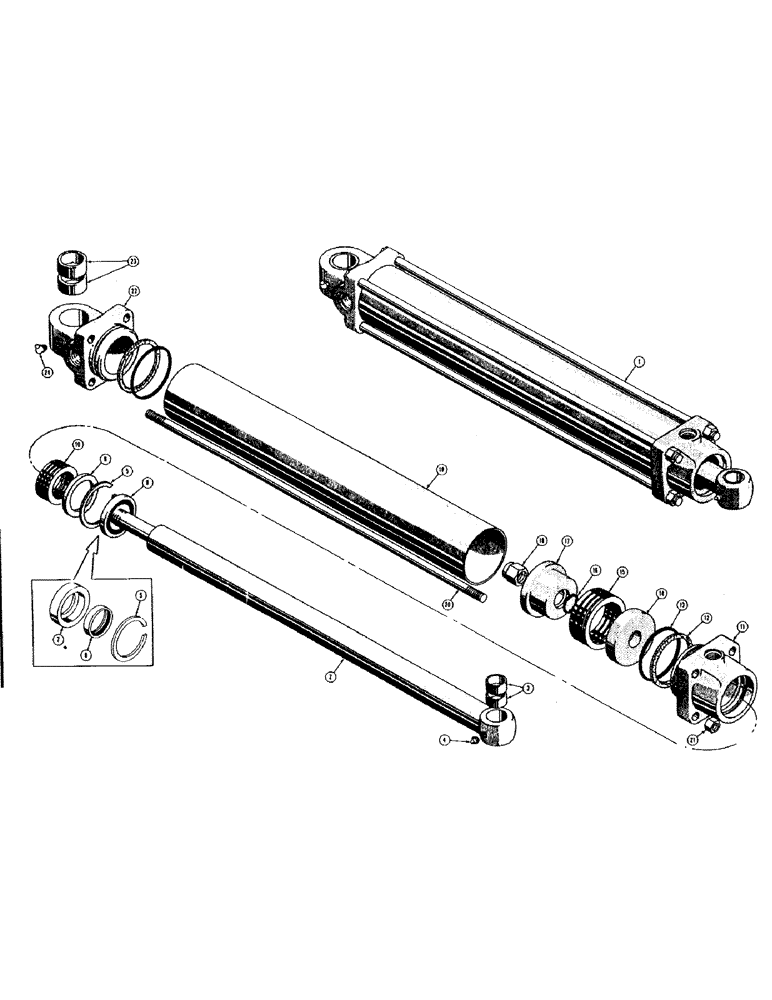

Запчасти Case 420B (176) - D20411 AND D20412 HYDRAULIC BUCKET CYLINDERS

1

D20411

CYLINDER - bucket, hydraulic (L.H.), Includes: Ref. 2 - 24

1шт.

D20412

CYLINDER - bucket, hydraulic (R.H.), Includes: Ref. 2 - 24

1шт.

2

D20405

ROD - piston, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

6

D23962

SEAL

- wiper, oil

1шт.

7

D23933

GLAND

- wiper seal

1шт.

8

17603

WIPER SEAL

- wiper (Use D23962 and D23933)

1шт.

9

36259

WASHER

- packing, piston rod (Use D23962 and D23933)

1шт.

10

17597

PACKING

- piston rod

1шт.

11

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

12

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

13

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING - seal, cylinder tube

2шт.

14

30630

CARTRIDGE

WASHER - piston packing

1шт.

15

17598

PACKING

- piston

1шт.

16

O3522CK

X

"O" RING - seal (Used with D23738 piston)

1шт.

17

30631

X

PISTON - cylinder (No. "O" ring) (Use D23738, D23739, and O3522CK)

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) (When replacing 30631 piston without "O" ring, also order 1-O3522CK "O" ring and 1-D23739 nut)

1шт.

18

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex, lock (3/4-16 NF) (Use with 30631 piston)

1шт.

D23739

LOCK NUT

NUT - hex, lock (3/4-16 NF) (Use with D23738 piston)

1шт.

19

NLS

NO LONGER SERVICED

TUBE - cylinder (39859)

1шт.

20

39857

GASKET

ROD - tie

4шт.

21

230-4616

LOCK NUT,3/8"-24, GA

NUT - hex, lock (3/8-24 NF)

8шт.

22

D20038

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

23

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

24

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degrees grease, 1/8 NPT (Lincoln #5300)

1шт.
