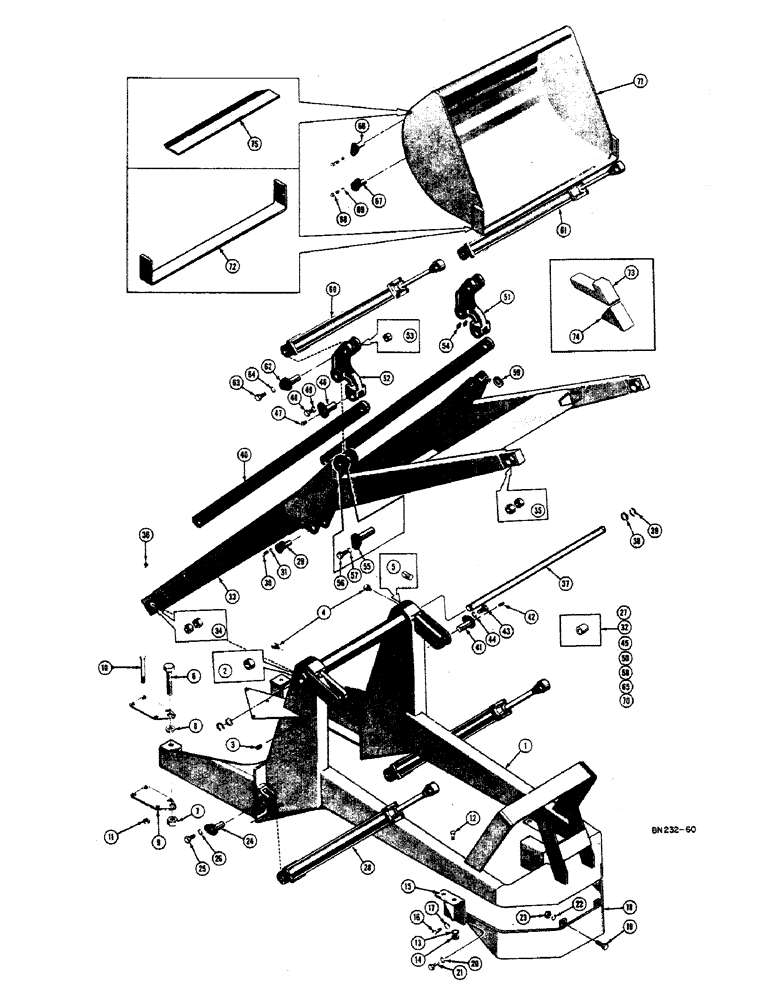

Запчасти Case 420B (166) - FRAME, LIFT ARM, BUCKETS, AND CYLINDERS

1

D20705

FRAME - complete, Includes: Ref. 2

1шт.

2

DR10018

BUSHING - cross shaft

2шт.

3

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - hydraulic oil reservoirs (1 NPT)

3шт.

4

31543

BREATHER

- hydraulic oil tank (Two used on backhoe models)

1шт.

5

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - hydraulic oil reservoir (1/4 NPT)

1шт.

6

16-16120

X

HHCS - 1-14 NF x 7-1/2

2шт.

7

131-370

LOCK NUT

NUT - hex., lock (1-14 NF)

2шт.

8

195-53

WASHER,1" x 2" x .134"

- plain (1-1/16" I.D. x 2" O.D.)

2шт.

9

DR10002

BRACKET - frame to rear axle

4шт.

10

14-10120

BOLT,Hex, 5/8" - 18 x 7-1/2", Gr 5

HHCS - 5/8-18 NF x 7-1/2

8шт.

11

131-154

LOCK NUT,5/8"-18, GA

NUT - hex., lock (5/8-18 NF)

8шт.

12

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2-20 NF x 1-1/2

4шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

14

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

4шт.

15

DR10204

BRACKET - mounting, frame (Front)

2шт.

16

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

18

D21274

GUARD - hydraulic pump

1шт.

19

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2-20 NF x 3/4

2шт.

20

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

21

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2-20 NF x 1-1/4

2шт.

22

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

23

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

2шт.

24

D21331

PIN - pivot, lift, Serial Range: cylinder-frame

2шт.

25

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

26

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

27

D23740

BUSHING

- bolt, lock head pin

2шт.

28

D20700

CYLINDER - hydraulic, loader lift (See Figure 174 for breakdown)

2шт.

29

D21235

PIN - lift cylinder to lift arm

2шт.

30

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

31

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

32

D23740

BUSHING

- bolt, lock head pin

2шт.

33

D20731

ARM - lift, loader, Includes: Ref. 34 and 35

1шт.

34

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- lift arm (Rear)

4шт.

35

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- lift arm (Front)

4шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

2шт.

37

DR10000

SHAFT - cross, lift arm pivot

1шт.

38

DR10004

WASHER

- cross shaft (1-17/32" I.D. x 2-1/2" O.D. x 1/8")

2шт.

39

DR10197

X

SNAP RING - cross shaft retaining

2шт.

40

DR10745

ROD - leveling

2шт.

41

D20724

PIN - pivot, leveling rod to loader frame

2шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

43

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

44

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

45

D23740

BUSHING

- bolt, lock head pin

2шт.

46

D20724

PIN - pivot, leveling, Serial Range: rod-lever

2шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

48

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

49

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

50

D23740

BUSHING

- bolt, lock head pin

2шт.

51

DR10752

LEVER - leveling, L.H., Includes: Ref. 53

1шт.

52

DR10753

LEVER - leveling, R.H., Includes: Ref. 53

1шт.

53

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- leveling levers

8шт.

54

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

4шт.

55

DR10766

PIN - pivot, leveling lever to lift arm

2шт.

56

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

57

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

58

D23740

BUSHING

- bolt, lock head pin

2шт.

59

32625

WASHER - spacer, pin (1-9/32" I.D. x 2-1/2" O.D. x 11/64"

1шт.

O2057B

WASHER - spacer, pin (1-5/16" I.D. x 2-1/2" O.D. x 1/16")

1шт.

60

D20412

CYLINDER - hydraulic, bucket (R.H.) (See Figure 176 for breakdown)

1шт.

61

D20411

CYLINDER - hydraulic, bucket (L.H.) (See Figure 176 for breakdown)

2шт.

62

D21331

PIN - pivot, leveling lever to bucket cylinder

2шт.

63

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

64

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

65

D23740

BUSHING

- bolt, lockhead pin

2шт.

66

D21560

PIN - pivot, bucket, Serial Range: cylinder-bucket

2шт.

67

D21235

PIN - pivot, lift, Serial Range: arm-bucket

2шт.

68

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

4шт.

69

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

70

D23740

BUSHING

- bolt, lockhead pin

4шт.

71

DR10538M

BUCKET - loader, 15 cu. ft. (63-3/8" width) (Machinery item), Includes: Ref. 72

1шт.

71

D10388M

BUCKET - loader, 2/3 cu. yd. (63-3/8" width) Dry material (Machinery item), Includes: Ref. 72

1шт.

71

DR10536M

BUCKET - loader, 21 cu. ft. (79-3/8" width) (Machinery item), Includes: Ref. 72

1шт.

71

D10387

BUCKET - loader, 1 cu. yd. (79-3/8" width) (Machinery item), Includes: Ref. 72

1шт.

72

DR10209

EDGE

- cutting

1шт.

72

D20549

EDGE

- cutting

1шт.

73

35204

SHANK - tooth (Optional)

8шт.

74

35205

X

TOOTH - digging (Optional)

8шт.

75

D10235M

GUARD - spill, optional (Machinery item)

1шт.
