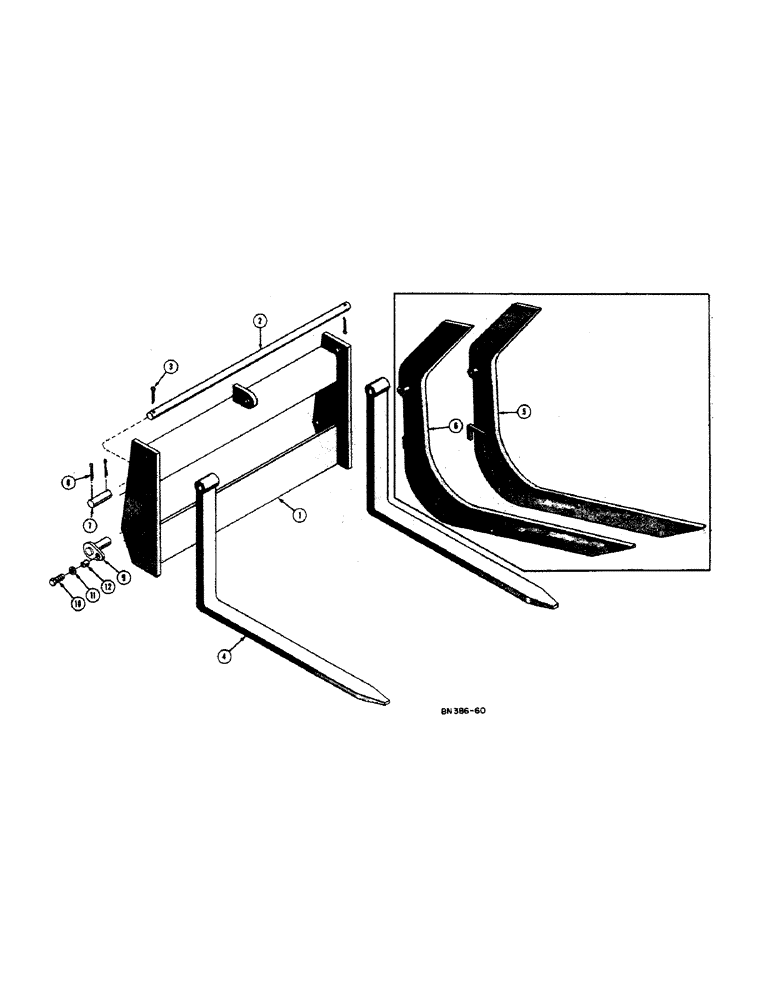

Запчасти Case 420B (164) - LOGGING AND PALLET FORKS

1

D21661

SUPPORT - fork

1шт.

2

D21656

SHAFT

- fork support

1шт.

3

132-152

PIN

- cotter (1/4 x 1-3/4)

2шт.

4

D21575

FORK TEDDER

FORK - pallet lift

2шт.

5

D21945

FORK - logging, L.H.

1шт.

6

D21946

FORK - logging, R.H.

1шт.

7

31715

PIN

- support retaining

2шт.

8

132-152

PIN

- cotter (1/4 x 1-3/4)

4шт.

9

D21235

PIN - pivot, lift, Serial Range: arm-support

2шт.

10

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

11

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

12

D23740

BUSHING

- bolt, lockhead pin

2шт.
