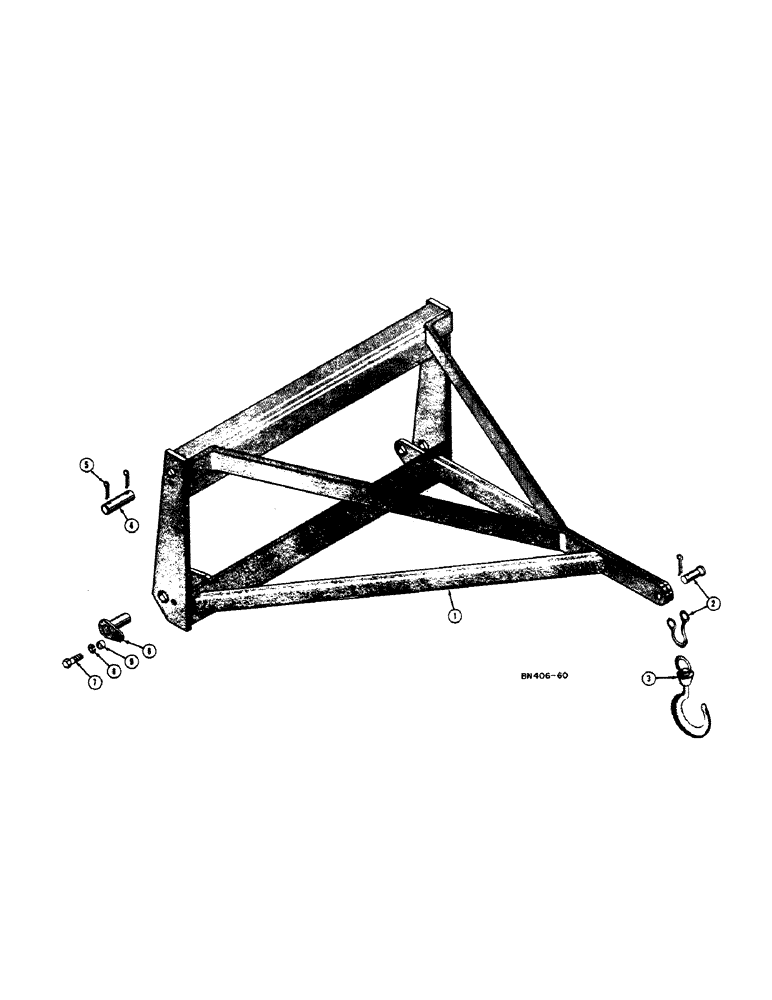

Запчасти Case 420B (164[A]) - CRANE BOOM ATTACHMENT

1

D10352M

CRANE BOOM ATTACHMENT (Machinery item), Includes: Ref. 2 - 5

1шт.

2

D21824

SHACKLE - swivel hook

1шт.

3

D21823

HOOK - swivel

1шт.

4

31715

PIN

- pivot, bucket cylinder to crane

2шт.

5

132-152

PIN

- cotter (1/4 x 1-3/4)

4шт.

6

D21235

PIN - pivot, lift, Serial Range: arm-support

2шт.

7

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

8

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

9

D23740

BUSHING

- bolt, lockhead pin

2шт.
