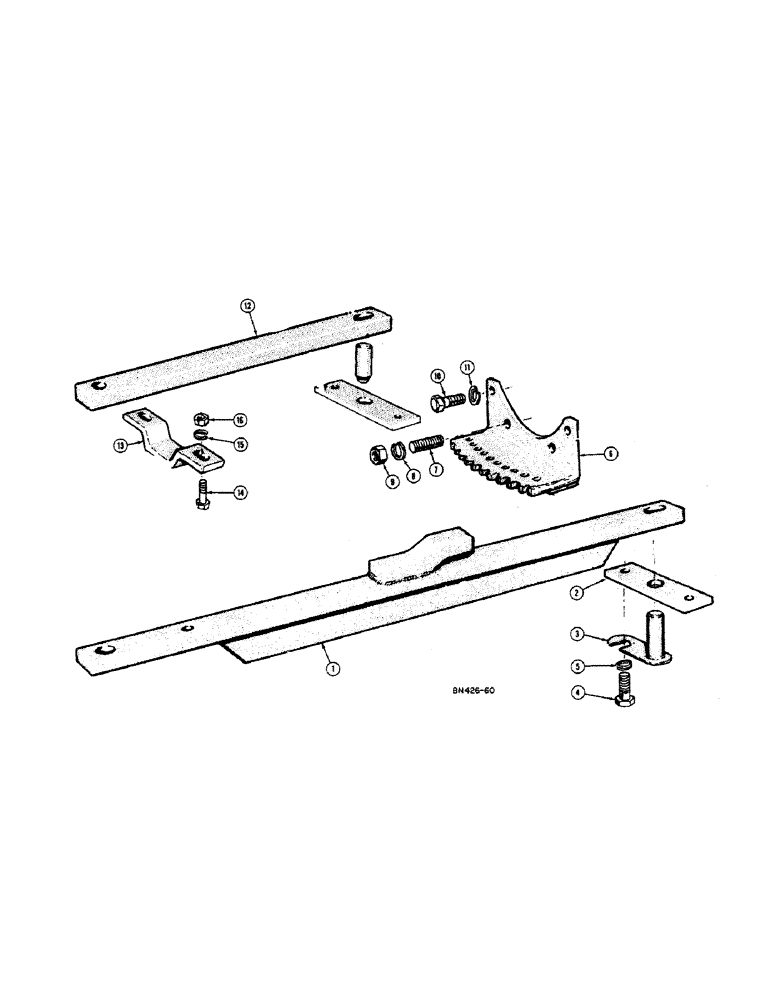

Запчасти Case 420B (162) - DRAWBAR

1

G14020

DRAWBAR - (Model 420B)

1шт.

1

G10620

DRAWBAR - (Models 320B and 420BD)

1шт.

2

G10617

SUPPORT

- pin

1шт.

3

G10621

PIN - drawbar

1шт.

4

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

G13077

SUPPORT - drawbar

1шт.

7

VT3541

STUD - drawbar support to transmission case (5/8-18 NF x 2)

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

25-1110

NUT,5/8"-18, G5

- hex. (5/8-18 NF)

2шт.

10

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

G16814

DRAWBAR - short

1шт.

13

G16813

SUPPORT - lower rear, short drawbar

1шт.

14

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2-20 NF x 1-3/4

2шт.

15

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

16

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

2шт.
