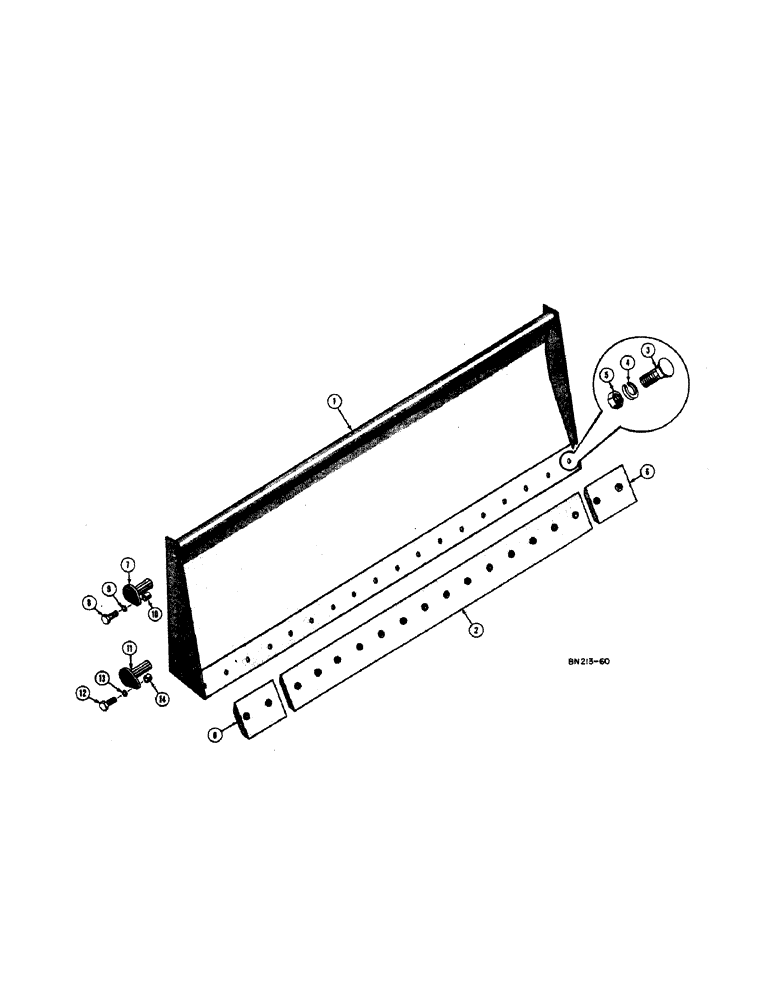

Запчасти Case 420B (162[A]) - BULL DOZER BLADE ATTACHMENT

1

D10274M

BULL DOZER BLADE ATTACHMENT - (Machinery item), Includes: Ref. 2 - 6

1шт.

2

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

3

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, #3 head (1/2-13 NC x 1-3/4)

18шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

18шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2-13 NC)

18шт.

6

38150

EDGE

BLADE - cutting, end

2шт.

7

D21560

PIN - pivot, bucket, Serial Range: cylinder-moldboard

2шт.

8

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

9

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

10

D23740

BUSHING

- bolt, lock head pin

2шт.

11

D21235

PIN - pivot, lift, Serial Range: arm-moldboard

2шт.

12

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

2шт.

13

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

14

D23740

BUSHING

- bolt, lock head pin

2шт.
