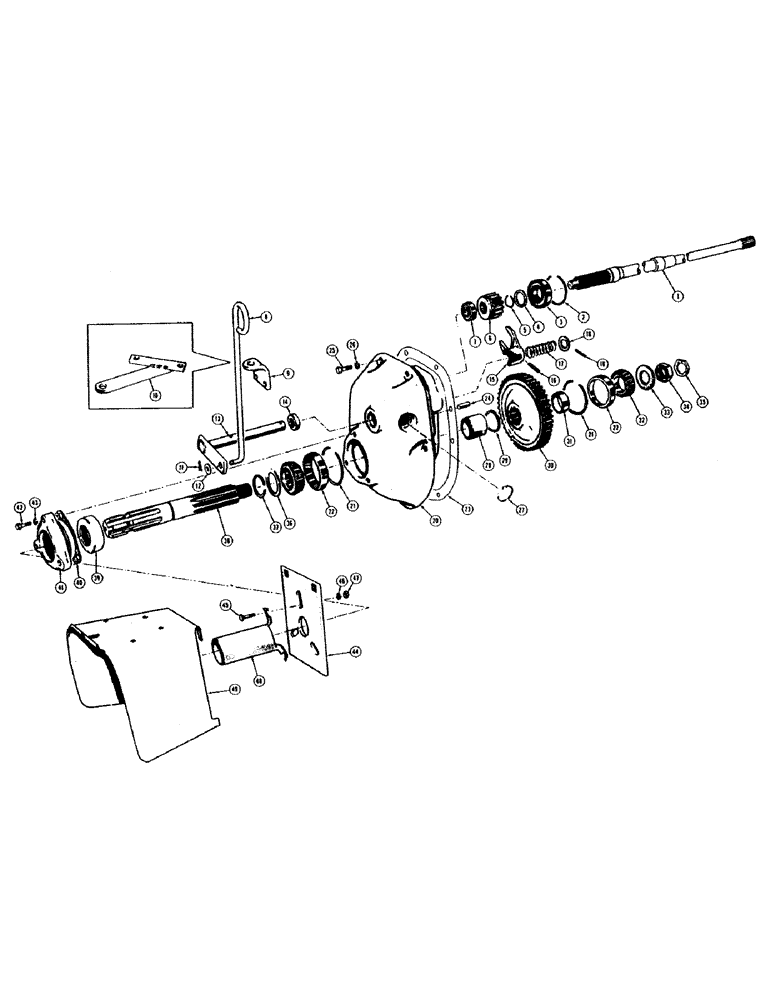

Запчасти Case 420B (160) - P.T.O.

1

G13009

SHAFT

- P.T.O. drive

1шт.

2

O6947AB

X

SNAP RING - drive shaft front bearing retaining

1шт.

3

G10624

BALL BEARING

BEARING - P.T.O. drive shaft, front

1шт.

4

O124GR

WASHER

- drive shaft bearing retainer (Front)

1шт.

5

O2402B

X

SNAP RING - drive shaft front bearing retaining

1шт.

6

G10675

GEAR

- P.T.O. drive (14T)

1шт.

7

G10623

BALL BEARING

BEARING - P.T.O. drive shaft, rear

1шт.

8

G10870

ROD - P.T.O. clutch control

1шт.

9

G10721

SUPPORT

- control rod (With Eagle Hitch)

1шт.

10

G13076

SUPPORT

- control rod (Without Eagle Hitch)

1шт.

11

132-46

COTTER PIN,1/8" x 3/4"

PIN, Split (Cotter), 1/8" x 3/4"

1шт.

12

95-6

WASHER,3/8"

- plain (3/8)

1шт.

13

G10452

X

LEVER - P.T.O. shift

1шт.

14

O4244AB

SEAL - oil, shift lever

1шт.

15

G10677

X

FORK - shift, drive gear

1шт.

16

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Shift fork 1/4" x 1 1/4", Slotted

1шт.

17

VT3677

X

SPRING - shifter fork throwout

1шт.

18

O578B

X

WASHER - shifter lever retainer

1шт.

19

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Shift lever 3/16" x 1 1/4", Slotted

1шт.

20

G14255

HOUSING - P.T.O.

1шт.

21

O852AB

SNAP RING - driven shaft bearing retainer

2шт.

22

G57451

BEARING, CUP

CUP - bearing, driven shaft

2шт.

23

G10447

GASKET

- P.T.O. housing to transmission case

1шт.

24

G10711

PIN

- dowel, P.T.O., Serial Range: housing-transmission

2шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

26

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

6шт.

27

VT3399

PLUG - expansion

1шт.

28

G10456

SPACER

- driven gear, rear

1шт.

29

VT2050

X

WASHER - spring tension

1шт.

30

G10676

GEAR

- P.T.O. driven (46T)

1шт.

31

VT3687

X

SPACER - driven shaft gear, front

1шт.

32

G57452

ROLLER BEARING

CONE - bearing, driven shaft

2шт.

33

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1)

1шт.

34

25-1116

NUT,1"-14, G5

- hex. (1-14 NF)

1шт.

35

G49002

NUT

- driven shaft (1" Palnut)

1шт.

36

O138BL

X

WASHER - driven shaft bearing retainer (Rear)

1шт.

37

O6384AB

SNAP RING - driven shaft

1шт.

38

G10444

X

SHAFT - P.T.O. driven

1шт.

39

G13803

OIL SEAL

SEAL - oil, P.T.O. rear

1шт.

40

VT3519

X

GASKET - rear oil seal retainer

1шт.

41

VT191

X

RETAINER - rear oil seal

1шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

43

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

3шт.

44

VT2297

X

PLATE - guard mounting

1шт.

45

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - rd. hd. 3/8-16 NC x 3/4

2шт.

46

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

2шт.

47

25-106

NUT,3/8"-16, G5

- hex. (3/8-16 NC)

2шт.

48

VT5012

X

GUARD - P.T.O. driven shaft

1шт.

49

O8303AB

X

GUARD - universal joint

1шт.
