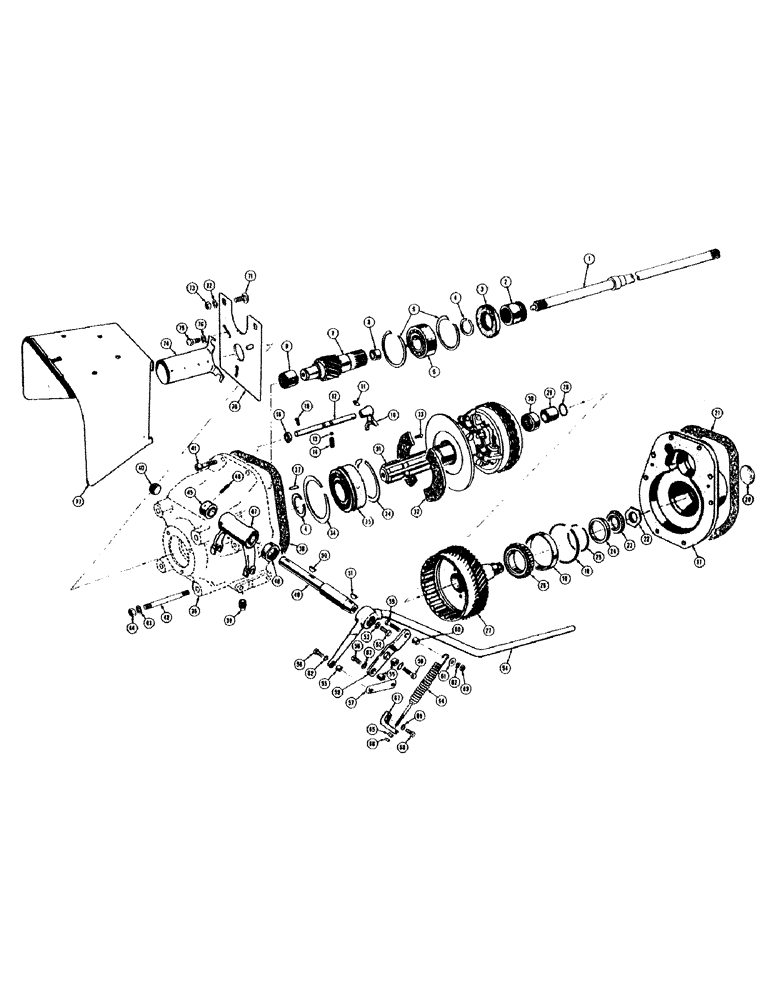

Запчасти Case 420B (156) - INDEPENDENT P.T.O.

1

G14278

SHAFT - P.T.O. drive (42-5/8" long)

1шт.

2

G16777

COLLAR - clutch shaft

1шт.

3

G13814

OIL SEAL

- drum housing

1шт.

4

16384AB

SNAP RING - bearing shaft and bearing to input gear

2шт.

5

0934CK

SNAP RING - bearing, input gear

2шт.

6

G13612

BALL BEARING

BEARING - rear, input hear

1шт.

7

G14083

GEAR - input drive (14T), Includes: Ref. 8

1шт.

8

G46142

BUSHING - input gear

1шт.

9

G10420

NEEDLE BEARING

BEARING - needle, rear of input gear

1шт.

10

G16762

FORK - shaft, throwout

1шт.

11

VT2013

X

SCREW - lock, shift fork

1шт.

12

G16763

SHAFT - shift, throwout

1шт.

13

VT4913

X

BALL - detent, throwout shaft rail (3/8" dia.)

1шт.

14

G47039

SPRING

- detent ball, throwout shift shaft

1шт.

15

83-48

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - socket hd. cap (1/4 x 1/2)

1шт.

16

G13815

OIL SEAL

OIL SEAL - shift shaft

1шт.

17

G14276

HOUSING - clutch drum

1шт.

18

G46143

RING

SNAP RING - rear bearing, driven gear

1шт.

19

O10794AB

X

CUP - rear bearing, clutch drum

1шт.

20

41-40

PLUG,Exp, 2 1/2"

- Welch (2-1/2)

1шт.

21

G10447

GASKET

- drum housing to transmission case

1шт.

22

G49010

LOCK NUT

- adjusting, clutch drum

1шт.

23

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, fron (Clutch drum)

1шт.

24

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, front (Clutch drum)

1шт.

25

G46701

RING, SNAP

SNAP RING - front bearing, driven gear

1шт.

26

G15211

ROLLER BEARING

CONE - rear bearing, clutch drum

1шт.

27

G16855

GEAR - P.T.O. clutch

1шт.

28

G46173

RING, SNAP

SNAP RING -driven shaft bearing race

1шт.

29

G15212

RACE

- bearing, driven shaft

1шт.

30

F7232

BEARING

- front, driven shaft

1шт.

31

G17123

CLUTCH - (See Figure 154 for breakdown)

1шт.

32

G14450

KIT

- lining, clutch plate brake, Includes: Ref. 33

1шт.

33

187-1010

SCREW - brake lining (#10-32 NF x 1/2)

6шт.

34

O8432AB

X

SNAP RING - rear bearing, driven shaft

2шт.

35

G13611

BALL BEARING

BEARING - rear, driven shaft

1шт.

36

G1724

HOUSING - rear, P.T.O.

1шт.

37

G16764

PIN - dowel

2шт.

38

G46815

GASKET

- rear housing to clutch housing

1шт.

39

221-1003

PLUG - pipe, sq. hd. (3/8)

1шт.

40

221-1025

PLUG

- pipe, socket hd. (3/4)

1шт.

41

165-102

CAPSCREW,Prev Torque, 3/8" - 16 x 1 3/4"

SCREW - self-locking (3/8 x 16 NC x 1-3/4)

2шт.

42

G49501

STUD

- housing to transmission case (3/8-24 NF x 5-3/4)

4шт.

43

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

4шт.

44

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

4шт.

45

G16873

SPACER - yoke shaft

1шт.

46

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, , Shift yoke to shaft 3/16" x 1 1/8", Slotted

1шт.

47

G10439

COUPLING

YOKE - shift

1шт.

48

G13818

OIL RESERVOIR

OIL SEAL - clutch lever shaft

1шт.

49

G16869

SHAFT

- shift yoke

1шт.

50

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

2шт.

51

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

1шт.

52

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

53

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

54

G14245

LEVER - control, P.T.O. clutch

1шт.

55

G16872

BUSHING - pivot

3шт.

56

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

HHCS - 3/8-24 NF x 5/8

3шт.

57

G16878

LINK - connecint, control lever to pivot link

1шт.

58

G16877

LINK - pivot, over-center

1шт.

59

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8-16 NC x 1-1/2

1шт.

60

G16875

RETAINER - spring, clutch control lever

1шт.

61

V20200

WASHER - spacer, control lever (11/32" I.D. x 1" O.D. x 1/16")

1шт.

62

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

3шт.

63

25-106

NUT,3/8"-16, G5

- hex. (3/8-16 NC)

1шт.

64

G45129

SPRING

- over-center

1шт.

65

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16-18 NC)

1шт.

66

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex. jam (5/16-18 NC)

1шт.

67

G16883

BRACKET - anchor, over-center spring

1шт.

68

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

69

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

1шт.

70

G16775

PLATE - guard mounting

1шт.

71

11-612

BOLT

- 3/8-16 NC x 3/4

2шт.

72

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

2шт.

73

25-106

NUT,3/8"-16, G5

- hex. (3/8-16 NC)

2шт.

74

VT5012

X

GUARD - P.T.O. driven shaft

1шт.

75

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

76

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

3шт.

77

O8303AB

X

GUARD - universal joint

1шт.
