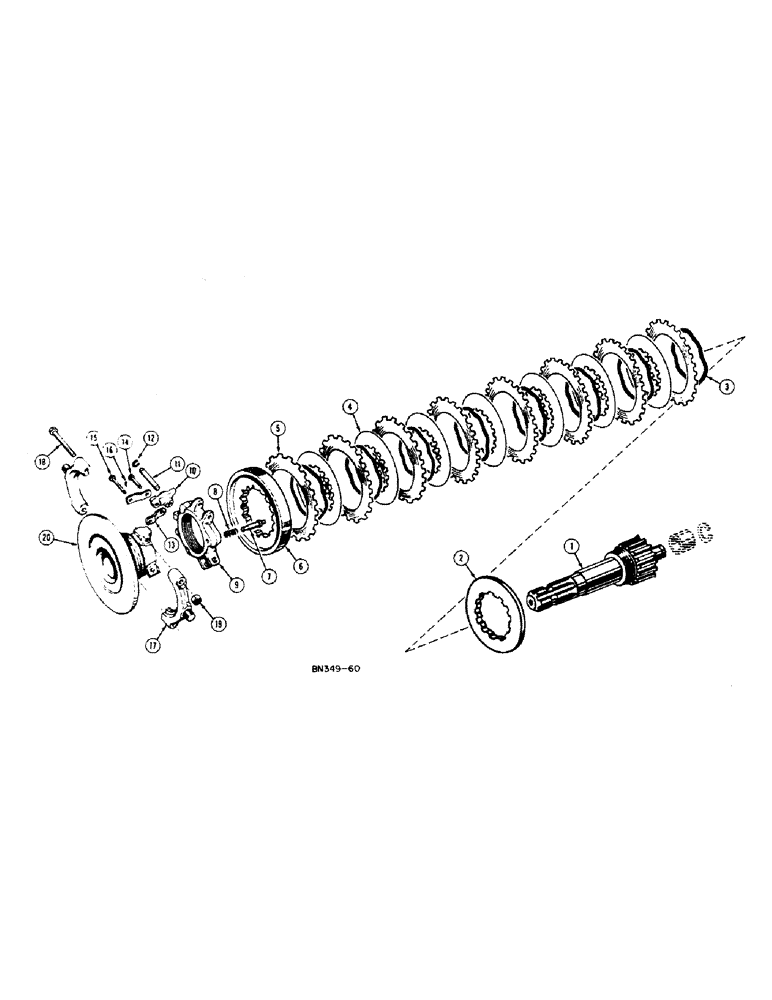

Запчасти Case 420B (154[A]) - INDEPENDENT P.T.O. CLUTCH

1

G17123

SHAFT - driven

1шт.

2

G16868

X

PLATE - backup, clutch

1шт.

3

O9039AB

SPRING

- separator, clutch drive plate

8шт.

4

A7102

CLUTCH DRIVING PLATE

PLATE - clutch driven

7шт.

5

A11127

PLATE

- clutch drive

8шт.

6

G16867

PLATE

- clutch pressure

1шт.

7

O9041AB

X

PIN - lock, clutch adjusting

2шт.

8

O5839AB

X

SPRING - lock pin, clutch adjusting

2шт.

9

O9040AB1

X

YOKE - clutch adjusting

1шт.

10

O9042AB

X

FINGER - clutch

3шт.

11

G10658

AXLE PIN

PIN - pivot, clutch finger

3шт.

12

G10659

SNAP RING,#31, Ext

RING, Snap, , pivot pin #31, Ext

6шт.

13

90945AB

LINK - clutch lever

6шт.

14

A8823

PIN,6.29mm OD x 26.99mm L

- link

3шт.

15

A8824

PIN

- yoke finger

3шт.

16

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

17

4259AA

X

COLLAR - throw out (Two part)

1шт.

18

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2

2шт.

19

131-3

LOCK NUT,5/16"-24, GB

NUT - stop (5/16-24 NF)

2шт.

20

G1304

SLEEVE

- sliding, clutch

1шт.
