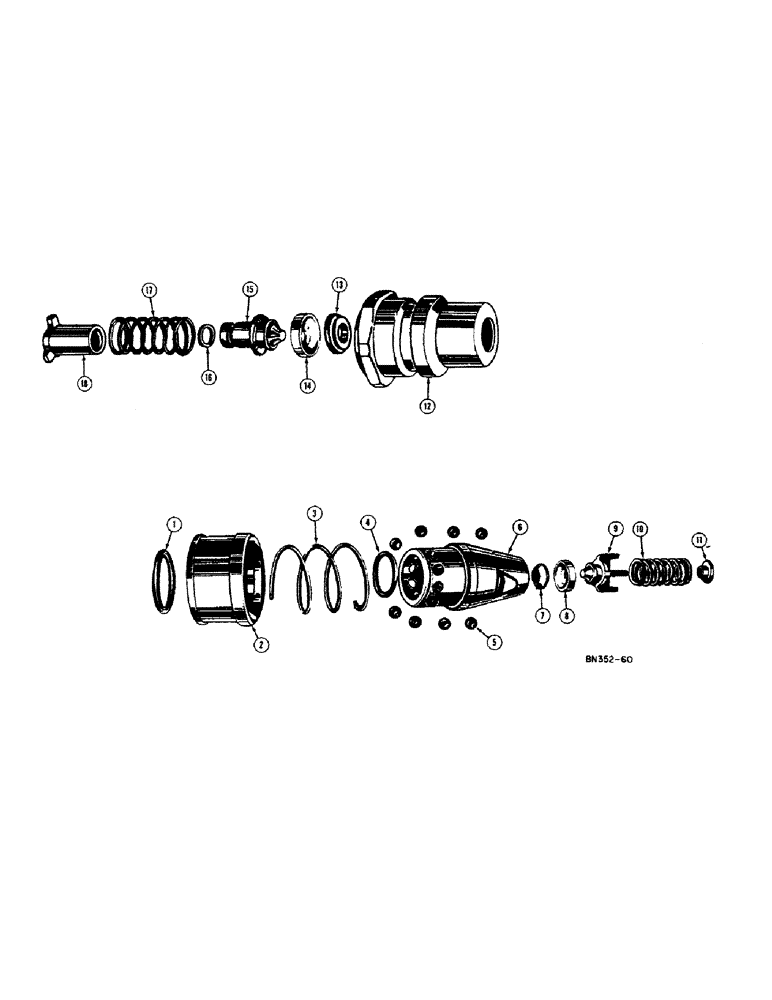

Запчасти Case 420B (152) - BREAK - AWAY COUPLING, PORTABLE HYDRAULIC CYLINDER AND HOSE

G45235

ARM

SOCKET - break-away, Includes: Ref. 1 - 10

2шт.

1

O8380AB

X

RING - coupling socket, rubber

1шт.

2

O8378AB

X

SLEEVE - coupling socket, body ball retainer

1шт.

3

O8379AB

X

SPRING - coupling socket

1шт.

4

O8377AB

X

"O" RING - coupling socket body

1шт.

5

O8635AB

X

BALL - coupling socket locking

8шт.

6

O8371AB

BODY - female coupling socket

1шт.

7

O8372AB

X

SEAL - female piston

1шт.

8

A11325

X

RETAINER - seal

1шт.

9

6119A

X

PISTON - coupling socket

1шт.

10

O8860AB

X

SPRING - coupling socket piston

1шт.

11

G16517

SPACER

- control, hydraulic flow

2шт.

4025AA

X

PLUG - break-away, Includes: Ref. 12 - 18

2шт.

12

O8381AB

X

BODY - coupling plug male

1шт.

13

O8372AB

X

SEAL - coupling piston

1шт.

14

A11325

X

RETAINER - seal

1шт.

15

O8859AB

X

PISTON - coupling plug

1шт.

16

O8386AB

X

"O" RING - coupling plug piston sleeve

1шт.

17

O8375AB

X

SPRING - coupling piston

1шт.

18

51200858

SLEEVE

- coupling plug piston

1шт.

G30455

KIT - service, break-away couplings

1шт.

51200858

SLEEVE

- male coupling

1шт.

A11325

X

RETAINER - seal

1шт.

6119A

X

PISTON - female coupling

1шт.

O8372AB

X

SEAL - piston

2шт.

O8375AB

X

SPRING - male coupling

1шт.

O8377AB

X

"O" RING - female coupling

1шт.

O8386AB

X

"O" RING - male coupling

1шт.

O8859AB

X

PISTON - male coupling

1шт.

O8860AB

X

SPRING - female coupling

1шт.
