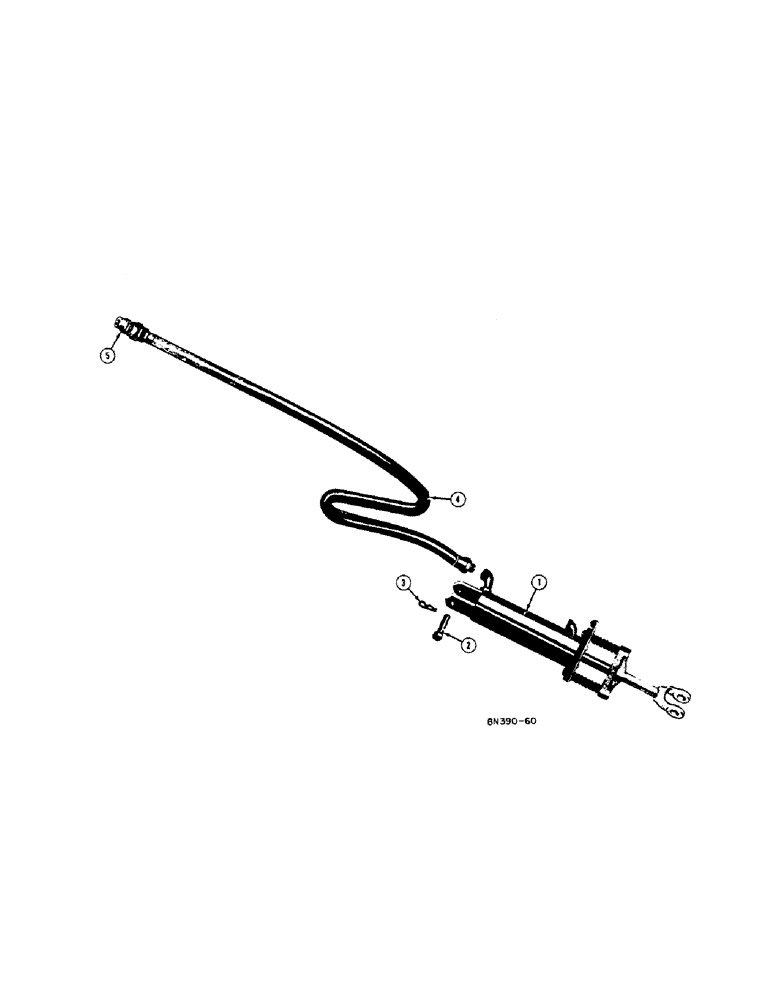

Запчасти Case 420B (152[A]) - PORTABLE HYDRAULIC CYLINDER AND HOSE

1

B3785AA

CYLINDER - portable hydraulic (See Figure 154 for breakdown)

1шт.

2

O8361AB

X

PIN - coupling, portable cylinder

2шт.

3

VC1419

X

PIN - cotter, hairpin

2шт.

4

VT3343

HOSE - hydraulic, rear (3/8" I.D. x 110" long)

2шт.

5

4025AA

X

PLUG - break-away coupling (See above for breakdown)

2шт.
