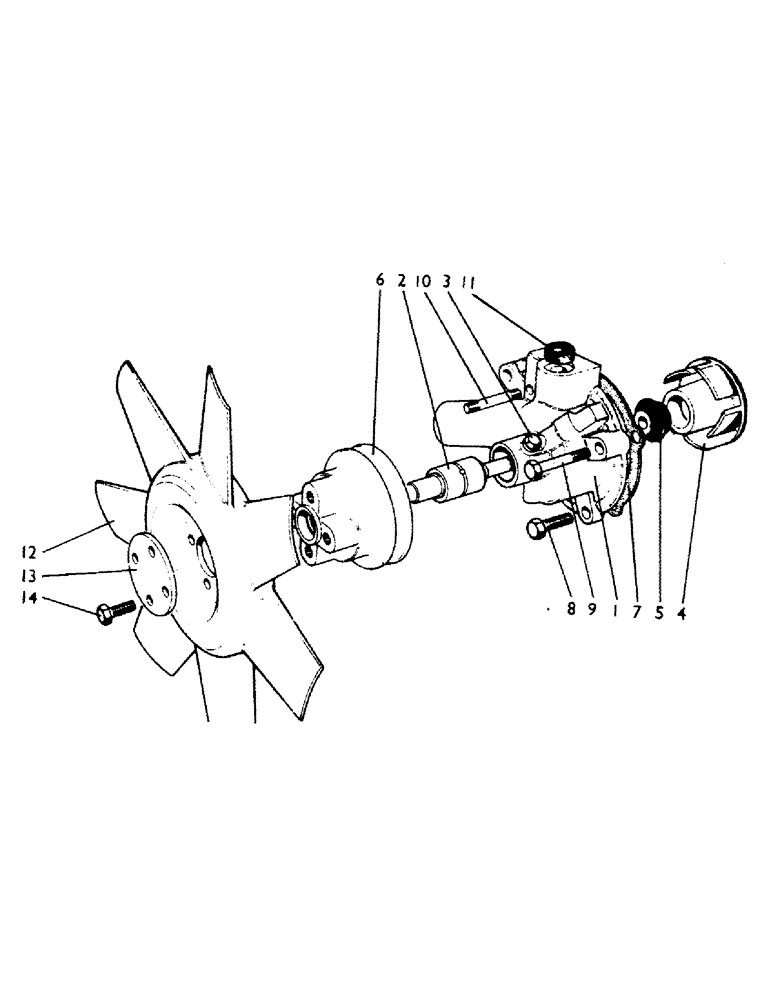

Запчасти Case 380CK (016) - WATER PUMP AND RADIATOR, WATER PUMP

K925067

PUMP

WATER PUMP ASSEMBLY, Includes: Ref. 1 - 5

1шт.

1

K925066

BODY

- water pump

1шт.

2

K11651

BEARING

SHAFT AND BEARING - water pump

1шт.

3

K946260

SCREW

- bearing locating

1шт.

K11673

WASHER

TABWASHER

1шт.

4

K907924

IMPELLER

- water pump

1шт.

5

K68949

SEAL

- gland

1шт.

6

K942475

PULLEY

- fan

1шт.

7

K907925

GASKET

-, Serial Range: pump-block

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Water pump to block Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

9

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4", water pump to block

1шт.

10

K608140

STUD

- 5/16" - 18 NC x 2-1/4", water, Serial Range: pump-block

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

11

K915330

SEALING RING

SEAL - rubber, water pump to cylinder head

1шт.

12

K921852

FAN

- seven blade, 14" dia.

1шт.

13

K921361

SHIM

PLATE - retaining

1шт.

14

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

K912196

V-BELT

Fan and alternator

1шт.

K961770

KIT

- repair, water pump

1шт.
