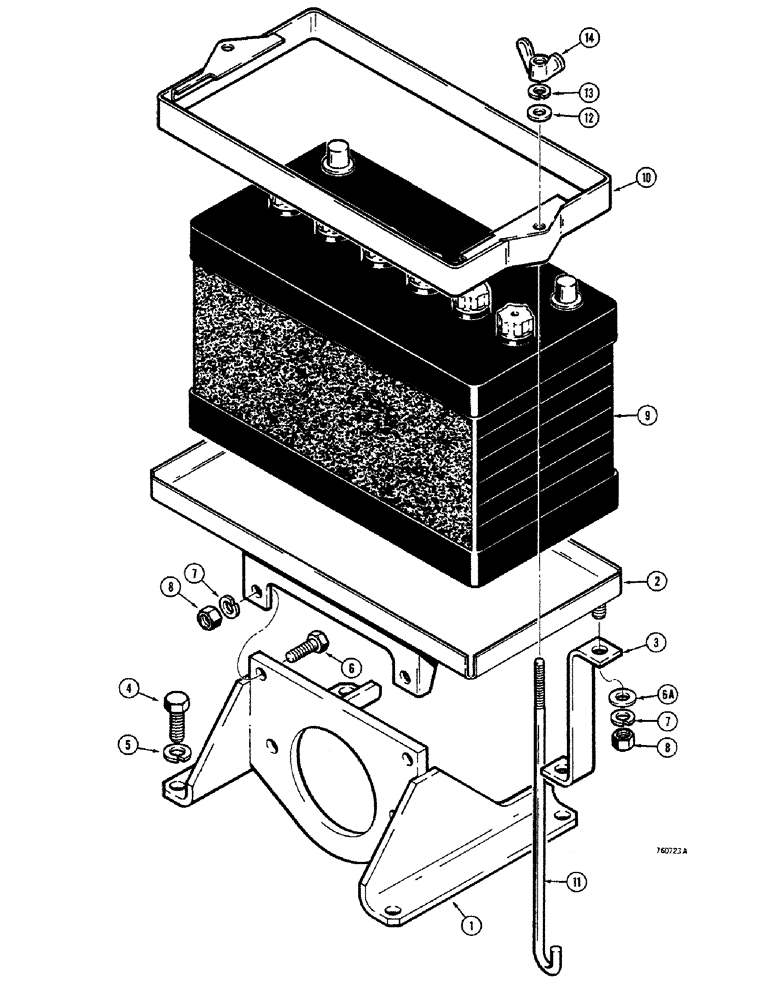

Запчасти Case 380CK (122) - BATTERY, HOLDDOWN AND BRACKETS

1

K947067

MOUNTING PARTS

BRACKET - pump mounting

1шт.

2

K947068

CARRIER

- battery

1шт.

3

K947074

SUPPORT

- battery carrier

2шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-7

LOCK WASHER,7/16"

4шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6a

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

9

A38411

DRY BATTERY

- 12 volt

1шт.

10

A38808

FRAME

HOLDDOWN - battery

1шт.

11

D42052

BOLT

BOLT - hook

2шт.

12

195-521

WASHER,5/16", SAE

- plain

2шт.

13

NLS

NO LONGER SERVICED

WASHER - lock, 5/16"

2шт.

14

129-419

WING NUT,5/16"-18

NUT - wing

2шт.
