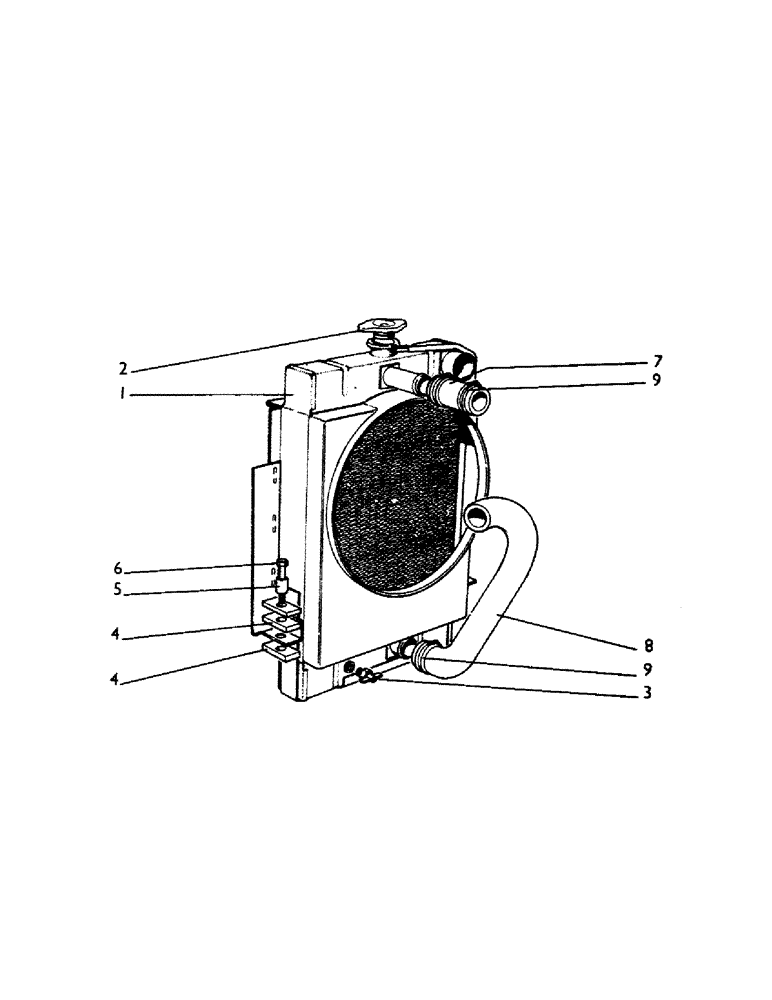

Запчасти Case 380CK (016[1]) - RADIATOR

1

K922737

RADIATOR

Includes: Ref. 2

1шт.

2

K922544

CAP

- radiator filler, 4 PSI

1шт.

3

K622060

PLUG, DRAIN

DRAINCOCK - radiator, 1/4 BSP

1шт.

K19501

WASHER

WASHER - fiber, 1/2"

1шт.

4

K921836

WEDGE

DAMPENER - vibration

4шт.

5

K908823

TUBE,0.562" OD x 0.875" L

SPACER

2шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

K37575

HOSE

- radiator inlet

1шт.

8

K915206

HOSE

- radiator outlet

1шт.

9

214-121

CLAMP,#24, 1 1/2", Spring

- hose, 1-7/8" I.D.

3шт.

214-122

X,#32, 2", Spring

CLAMP - hose, 2" I.D.

1шт.
