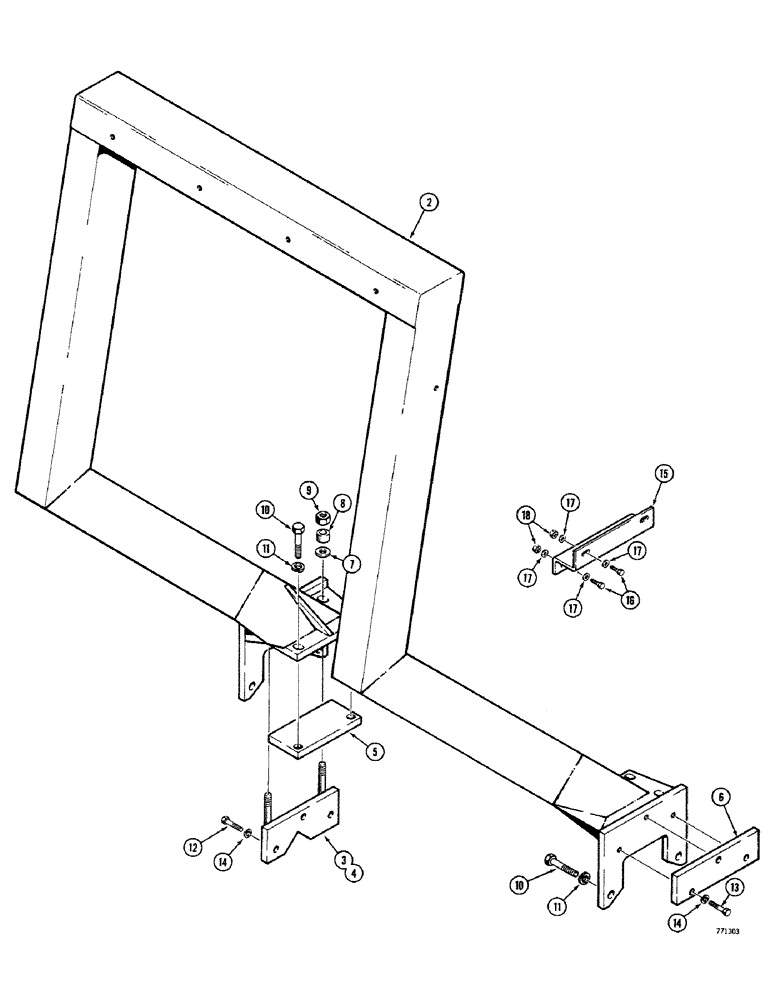

Запчасти Case 380CK (115A) - TWO-POST ROPS

1

NSS

NOT SOLD SEPARAT

ROPS ASSEMBLY - see Figure 2 for ordering, includes all parts on this figure, not shown assembled, Includes: Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

ROLL BAR - ROPS - order ref 1 above

1шт.

3

H629360

PLATE - mounting, R.H.

1шт.

4

H629378

PLATE - mounting, L.H.

1шт.

5

H343988

PLATE - spacer

2шт.

6

H343947

SPACER - fender, not used on LCG models, see Figure 98

2шт.

7

195-533

WASHER,1/2", SAE

- flat, 1/2"

4шт.

8

H350967

SPACER - fender, not used on LCG models, see Figure 98

4шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

10

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

HHCS - 1/2" - 13 NC x 2", grade 8

8шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

12

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

HHCS - 7/16" - 14 NC x 1-1/2"

6шт.

13

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

Not used on LCG models, see Figure 98 Hex, 7/16"-14 x 1 1/4", G5

6шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

15

H338277

SPACER - fender, not used on LCG

2шт.

16

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

17

195-518

WASHER,1/4", SAE

- flat, 1/4"

16шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.
