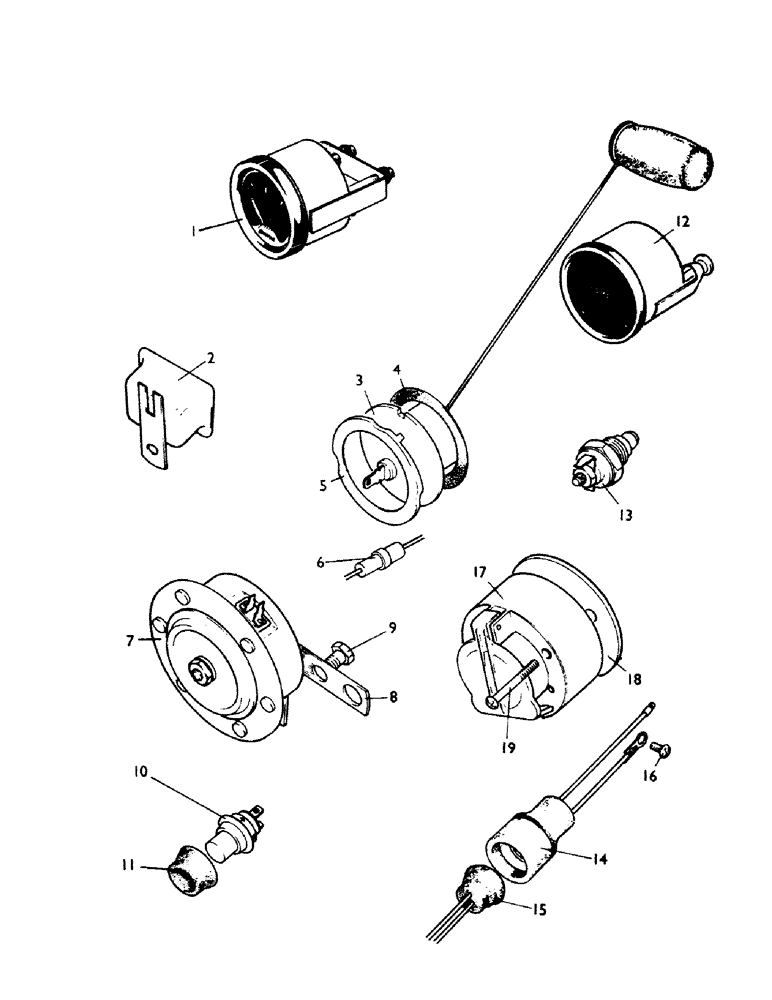

Запчасти Case 380CK (108) - FUEL GAUGE, HORN, TEMPERATURE GAUGE AND TRAILER CONNECTIONS
№
Артикул
Название
Примечание
Количество
1
K942442
ELECTRICAL GAUGE
GAUGE - fuel (Smith's BF 2100/02)
1шт.
2
K942740
STABILIZER
- voltage (Smith's BR 1300/01A)
1шт.
3
K946184
FUEL GAUGE
SENDING UNIT - tank (Smith's TBS 1514/006)
1шт.
4
K942450
RING
- sealing, Serial Range: unit-tank
1шт.
5
K942451
RING
- locking, sending unit
1шт.
6
K962988
HOLDER
- fuse (Part of wiring harness)
2шт.
K904459
FUSE
- 25 amp
2шт.
K924223
FUSE
- 5 amp
1шт.
K928513
CLIP - fuse to, Serial Range: holder-panel
2шт.
7
K907861
NO LONGER SERVICED
HORN - includes bracket
1шт.
8
K908033
CARRIER
PLATE - carrier, horn
1шт.
9
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
HHCS - 1/4" - 20 NC x 1/2"
2шт.
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
10
K928180
SWITCH
BUTTON - horn, push (Lucas 31872), Includes: Ref. 11
1шт.
11
K928150
BOOT
COVER - rubber
1шт.
K928149
WASHER
- 3/4" special
1шт.
K928148
SPRING
WASHER - lock, special, 3/4"
1шт.
K928147
NUT - special, 3/4" - 16 NF
1шт.
12
K921148
ELECTRICAL GAUGE
GAUGE - temperature (AC-Delco 7966282)
1шт.
13
K921149
TEMPERATURE SENDER
SENDER - temperature gauge (AC-Delco 7966281)
1шт.
K626444
WASHER
- copper
1шт.
14
K921077
SOCKET/RECEPTACLE
SOCKET - trailer connection, female
1шт.
15
K960896
PLUG - trailer socket
1шт.
16
K605633
SCREW
- 1/4" - 20 NC x 1/2"
1шт.
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
1шт.
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
1шт.
17
K913566
POINT
SOCKET - trailer connection
1шт.
17a
K963625
PLUG
SOCKET - trailer connection, male (Not shown)
1шт.
18
K928546
PLATE
- socket
1шт.
19
K614950
SCREW
- #10 x 32 NF x 1-1/4"
3шт.
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
3шт.
K617080
NUT
- #10 x 32 NF
3шт.
K923592
ELECTRICAL WIRE
WIRE - ground
1шт.
K627704
GROMMET
- 1"
1шт.
K963802
HOLDER
for bulb
1шт.
