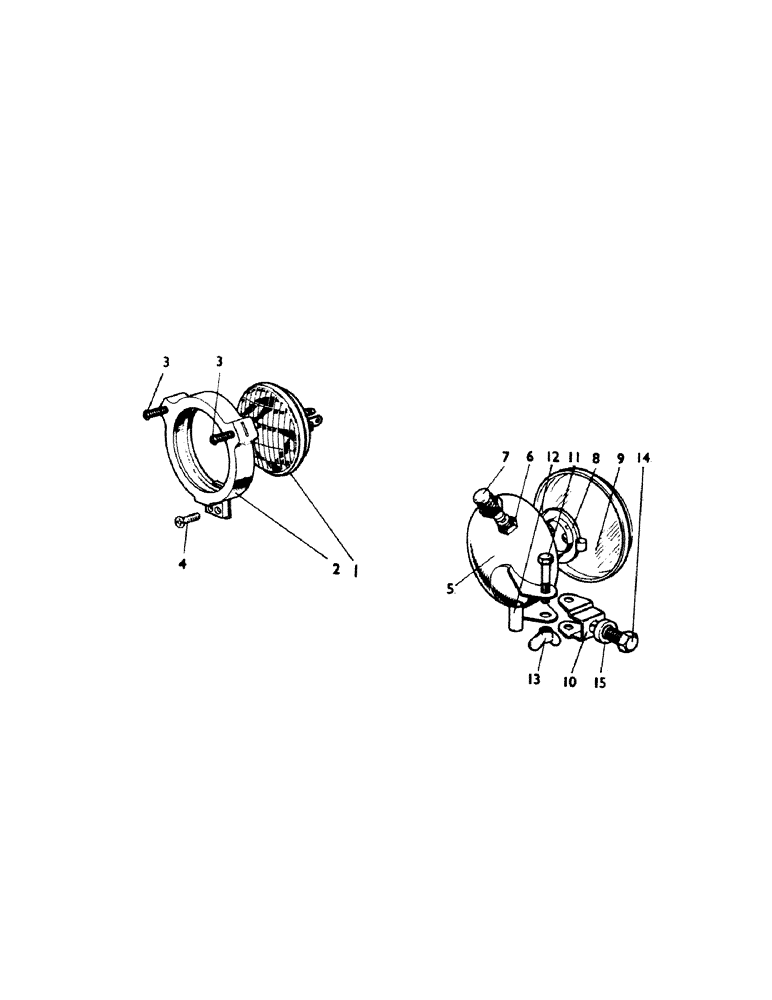

Запчасти Case 380CK (104) - HEADLIGHTS, FLOODLIGHTS AND REAR LIGHTS, HEADLIGHTS AND FLOODLIGHTS

K915874

HEADLAMP

HEADLIGHT - double filament, Inlcudes: Ref. 1 - 3

2шт.

1

K962146

BEAM

UNIT - sealed beam, 12 volt - 40/40 watt

1шт.

2

K961759

MOUNTING PARTS

MOUNT - rubber

1шт.

3

K962345

KIT

- mounting

1шт.

4

K604042

SCREW

- no. 8 - 32 NC x 7/8"

4шт.

129-16

NUT,#8-32

4шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

K628241

BUSHING

SPACER - rubber

2шт.

5

K921081

LAMP

FLOODLIGHT - rear, Inlcudes: Ref. 6 - 9

1шт.

K962620

LIGHT SWITCH

SWITCH - floodlight

1шт.

6

K961082

NUT

- switch

1шт.

7

K962621

COVER ASSY

COVER - rubber, switch

1шт.

8

K963547

PLATE

- center, with contacts

1шт.

K961771

NO LONGER SERVICED

LEAD - feed

1шт.

9

K962334

LENS

- floodlight

1шт.

10

K910853

BRACKET - floodlamp

1шт.

11

K610050

BOLT

- 1/4" - 28 NF x 2-1/4"

1шт.

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

12

K912300

COLLAR

SPACER -, Serial Range: bracket-floodlight

1шт.

13

K607215

NUT

- wing, 1/4" - 28 NF

1шт.

14

K603141

SCREW

HHCS - 1/2" - 13 NC x 1-1/4"

1шт.

15

K627067

BUSHING

SPACER

1шт.

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
