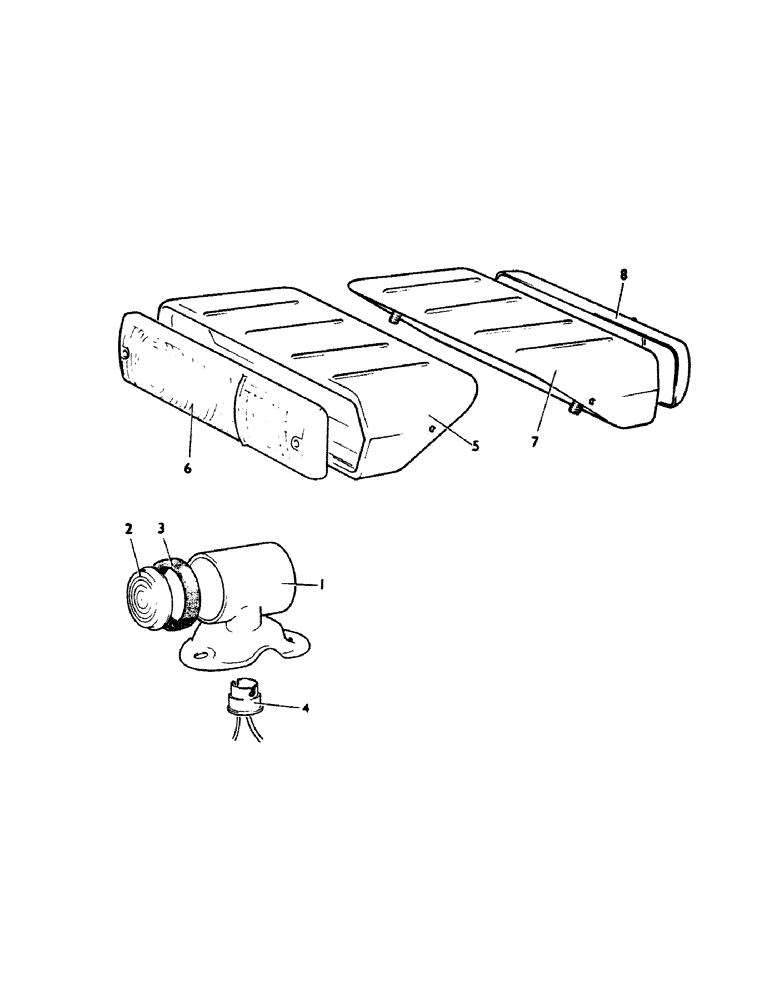

Запчасти Case 380CK (104[1]) - REAR LIGHTS

1

K921080

STOP LIGHT

LAMP - side/rear, L.H., Inlcudes: Ref. 2 - 4

1шт.

K921079

LAMP

- side/rear, R.H., Inlcudes: Ref. 2 - 4

1шт.

2

K960887

LENS

- clear

1шт.

K960888

LENS

- red

1шт.

3

K960889

MOUNTING PARTS

MOUNT - lens, black rubber

2шт.

4

K961772

BULB

SOCKET - lamp

1шт.

K961827

MOUNT - rubber, socket

1шт.

K615404

SCREW

- no. 10 - 32 NF x 1/2"

4шт.

129-141

JAM NUT,Jam, 1/4"-20, G5

- hex, no. 10 - 32 NF

4шт.

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

4шт.

5

K929167

INDICATOR LIGHT

LAMP - side/flasher, L.H., Inlcudes: Ref. 6

1шт.

K929166

INDICATOR LIGHT

LAMP - side/flasher, R.H., Inlcudes: Ref. 6

1шт.

6

K963519

LENS

- L.H., includes washers and screws

1шт.

K963518

LENS

- R.H., includes washers and screws

1шт.

7

K929169

LIGHT

LAMP - stop/tail/flasher, L.H., Inlcudes: Ref. 8

1шт.

K929168

LIGHT

LAMP - stop/tail/flasher, R.H., Inlcudes: Ref. 8

1шт.

8

K963517

LENS

- L.H., includes washers and screws

1шт.

K963516

LENS

- R.H., includes washers and screws

1шт.

K963507

GASKET

- lens

1шт.

K963508

ADAPTER

10шт.

K963509

CABLE

WIRE - ground

4шт.

K624522

SCREW

- self-tapping, ground, Serial Range: wire-fenders

4шт.

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

4шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

K617080

NUT

- #10 - 32 NF, Serial Range: lamp-fender

8шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

K626310

WASHER

- 3/16"

8шт.
