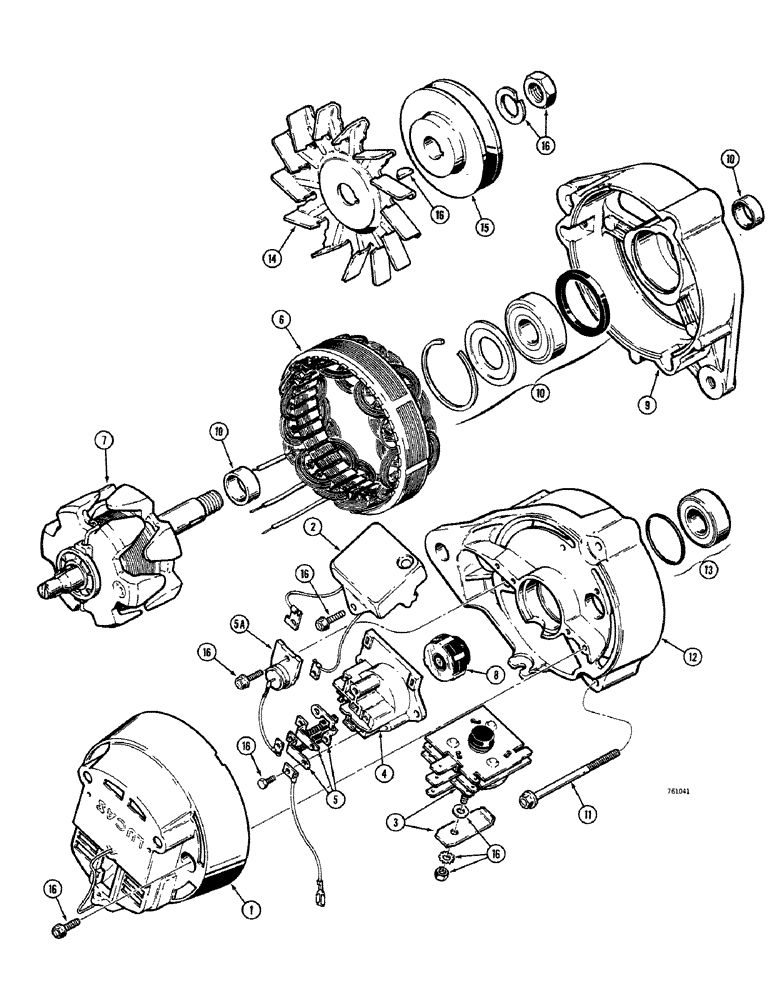

Запчасти Case 380CK (103A) - K925009 ALTERNATOR

K925009

ALTERNATOR

ASSEMBLY - Lucas 54021353, Inlcudes: Ref. 1 - 16

1шт.

1

K964183

COVER

- rear

1шт.

2

K962774

REGULATOR

- voltage

1шт.

3

K962783

RECTIFIER

-, Serial Range: AC-DC

1шт.

K963772

BOX

BRUSH HOLDER ASSEMBLY, Inlcudes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

HOLDER - brushes

1шт.

5

K964151

BRUSH, COMMUTATOR

BRUSH SET - alternator

1шт.

5a

K964182

PROTECTOR

SURGE DIODE ASSEMBLY

1шт.

6

K963776

STATOR - alternator

1шт.

K963888

ROTOR ASSEMBLY, Inlcudes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ROTOR - alternator

1шт.

8

K964178

SLIP RING

ASSEMBLY

1шт.

K963919

BRACKET

FRAME ASSEMBLY - front, Inlcudes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

FRAME - front

1шт.

10

K963778

BEARING ASSY

KIT - bearing, front

1шт.

11

K964181

BOLT (MACHINE)

BOLT - tie

3шт.

K964180

BRACKET

FRAME ASSEMBLY - rear, Inlcudes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

FRAME - rear

1шт.

13

K963779

KIT

- bearing, rear

1шт.

14

K942129

FAN

- alternator

1шт.

15

K942045

PULLEY

- alternator

1шт.

16

K963927

KIT

- hardware, includes all nuts, washers, screws, plugs, keys and split bushing for front frame

1шт.
