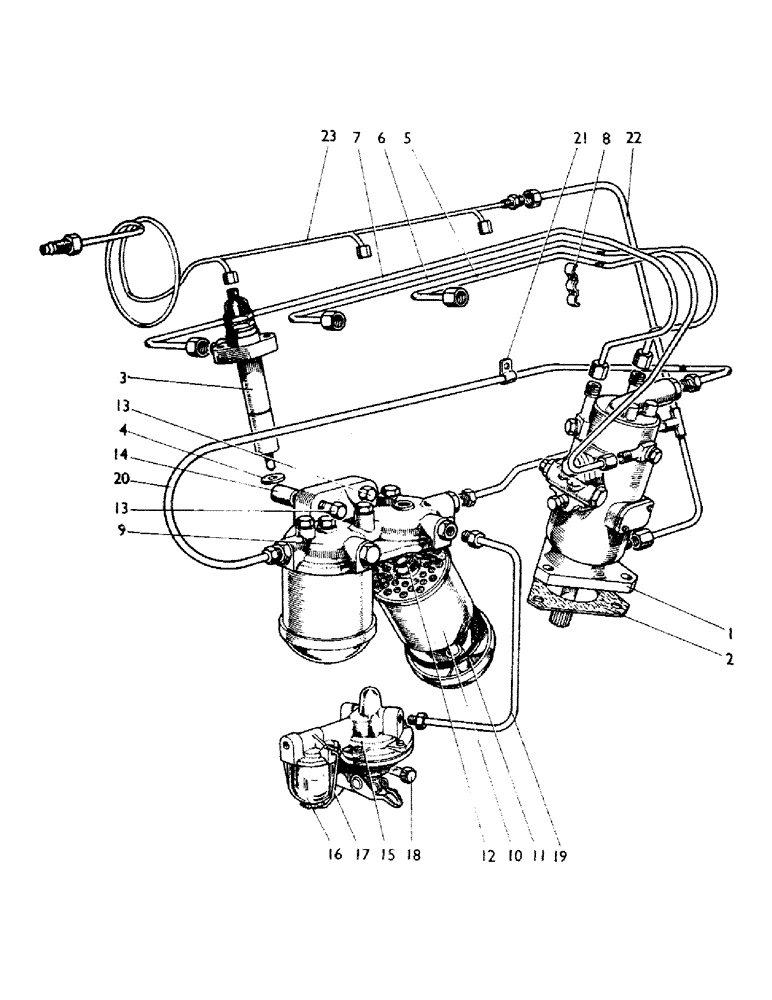

Запчасти Case 380CK (014) - INJECTION PUMP AND FUEL SYSTEM

1

K916784

PUMP

- fuel injection (CAV 3233000)

1шт.

2

K68349

GASKET

- fuel injection pump mounting

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

K19471

WASHER

- 5/16"

3шт.

3

K942175

NOZZLE CAP

INJECTOR - fuel, Includes: Ref. 4

3шт.

K904261

NOZZLE CAP

HOLDER - fuel injector (CAV BKBL 97S5152)

1шт.

K942176

NOZZLE CAP

NOZZLE - fuel injector (CAV BDLL 140S6592)

1шт.

4

K901092

WASHER

- copper

1шт.

5

K908162

PIPE

TUBE - fuel injection pump to No. 1 cylinder

1шт.

6

K908164

PIPE

TUBE - fuel injection pump to No. 2 cylinder

1шт.

7

K908166

PIPE

TUBE - fuel injection pump to No. 3 cylinder

1шт.

K900845

NUT

NUT - fuel injection tubes

6шт.

K900846

FERRULE

SLEEVE - fuel injection tubes

6шт.

8

K908168

WASHER

CLIP - fuel injection tubes

2шт.

K12217

SCREW,0.185" x 5/8"

- fuel injection tube clips

2шт.

K11109

NUT

- fuel injection tube clips

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

K963878

FILTER

ASSEMBLY - fuel, Includes: Ref. 10 - 12

1шт.

10

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT - fuel filter (CAV) See alternate element below, Includes: Ref. 11

2шт.

10

K915319

ELEMENT

- fuel filter (AC-Delco) See alternate filter above, Includes: Ref. 11

2шт.

11

K960936

RING

WASHER - sealing

2шт.

12

K960937

O-RING

SEAL - "O"ring

2шт.

13

K600409

BOLT

- filter to block, 3/8" - 16 NC x 2-1/8"

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

K11762

COPPER WASHER

- copper-asbestos, 3/8"

2шт.

14

K627041

BUSHING

SPACER

2шт.

15

K908819

PUMP

- fuel (AC-Delco E/FP63154/B), Includes: Ref. 16 and 17

1шт.

K911917

DIAPHRAGM

- fuel pump

1шт.

K961732

FILTER

- gauge, fuel pump

1шт.

16

K961733

BOWL

- fuel pump

1шт.

K961734

GASKET

- filter bowl

1шт.

17

K961735

BRACKET

BAIL AND SCREW ASSEMBLY - filter bowl

1шт.

K902136

GASKET

- fuel, Serial Range: pump-block

1шт.

18

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

K19471

WASHER

- med. sect. lock, 5/16"

2шт.

K14988

WASHER

- copper-asbestos, 5/16"

2шт.

K911928

PUSH ROD,9.51mm OD x 35.99mm L

PUSH ROD - fuel pump

1шт.

19

K908169

PIPE,0.25" OD x 5.594, 1.641" L

TUBE - fuel pump to filter

1шт.

20

K908171

PIPE,0.25" OD

TUBE - fuel filter to injection pump

1шт.

21

K621619

CLIP

- fuel line

1шт.

K621646

CLIP

- fuel line

1шт.

22

K908173

PIPE

TUBE - fuel filter to leak-off tube

1шт.

23

K916306

PIPE

TUBE - leak-off

1шт.
