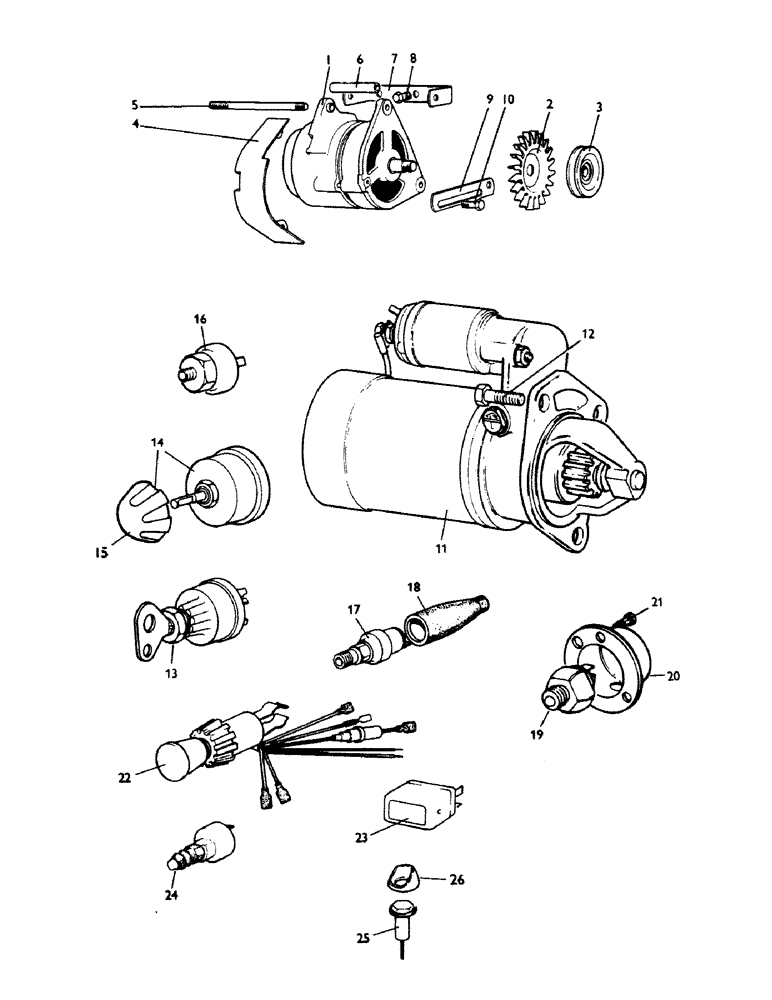

Запчасти Case 380CK (102) - ELECTRICAL COMPONENTS

1

K925009

ALTERNATOR

- parts list Figure 103A, Inlcudes: Ref. 2 and 3

1шт.

2

K942129

FAN

- alternator

1шт.

3

K942045

PULLEY

- alternator

1шт.

4

K942117

GUARD

- alternator fan and pulley

1шт.

K623594

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

5

K925011

STUD

- 5/16" - 18 NC x 7-1/8", Serial Range: alternator-bracket

1шт.

231-1435

LOCK NUT,5/16"-18, GB

NUT - Nyloc, 5/16" - 18 NC

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

K627027

BUSHING

SPACER -, Serial Range: alternator-bracket

2шт.

7

K912758

BRACKET

- support

1шт.

8

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

K942044

STRAP

- adjuster

1шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

K913007

X

STARTER - parts list Figure 103C

1шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Starter to engine Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

K945294

IGNITION SWITCH

SWITCH - for cold start switch, see Figure 23A

1шт.

K962338

KEY

KEY - switch

1шт.

14

K914091

LIGHT SWITCH

SWITCH - lights, Inlcudes: Ref. 15

1шт.

15

K901981

KNOB

- switch

1шт.

16

K903851

PRESSURE SWITCH

SWITCH - oil pressure lamp (AC-Delco 7954181)

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fiber, 3/8"

1шт.

17

K921317

SENDER UNIT

SWITCH - oil filter lamp (AC-Delco 7954473)

1шт.

18

K923874

COVER

- oil switches

2шт.

19

K940288

SWITCH

- neutral start (Lucas 39686)

1шт.

K626895

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

K626858

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

K626894

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

20

K940284

COVER

- neutral start switch

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- switch cover

1шт.

K15535

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - O-ring, 1-1/2" I.D.

1шт.

21

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Switch to gear box cover Hex, 1/4"-20 x 1/2", G5, Full Thd

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

22

K913565

LIGHT SWITCH

SWITCH - direction indicators (Hella 51/64)

1шт.

23

K913564

INDICATOR LIGHT

UNIT - flasher indicators (Hella 91 PEG 2/1/1)

1шт.

22

K944664

FLASHER SWITCH

SWITCH - hazard warning

1шт.

K944665

FUSE

- 15 amp

1шт.

K963613

KNOB

- switch

1шт.

23

K929185

FLASHER UNIT

UNIT - flasher, hazard warning (Lucas 9FL 12V)

1шт.

24

K929737

SWITCH ASSY

SWITCH - stop lamp (AC-Delco 1533672)

1шт.

K940727

ELEC CONNECTOR

CONNECTOR - insulated, switch center terminal

1шт.

K943744

COVER

- stop lamp switch

1шт.

25

K917371

SIGHTGLASS

LAMP - warning, low oil pressure (Green)

1шт.

25

K917370

PROTECTIVE COVER

LAMP - warning, alternator (Red)

1шт.

25

K921367

SIGHTGLASS

LAMP - warning, hydraulic filter (Amber)

1шт.

26

K919304

GUARD

HOOD - warning lamps

3шт.
