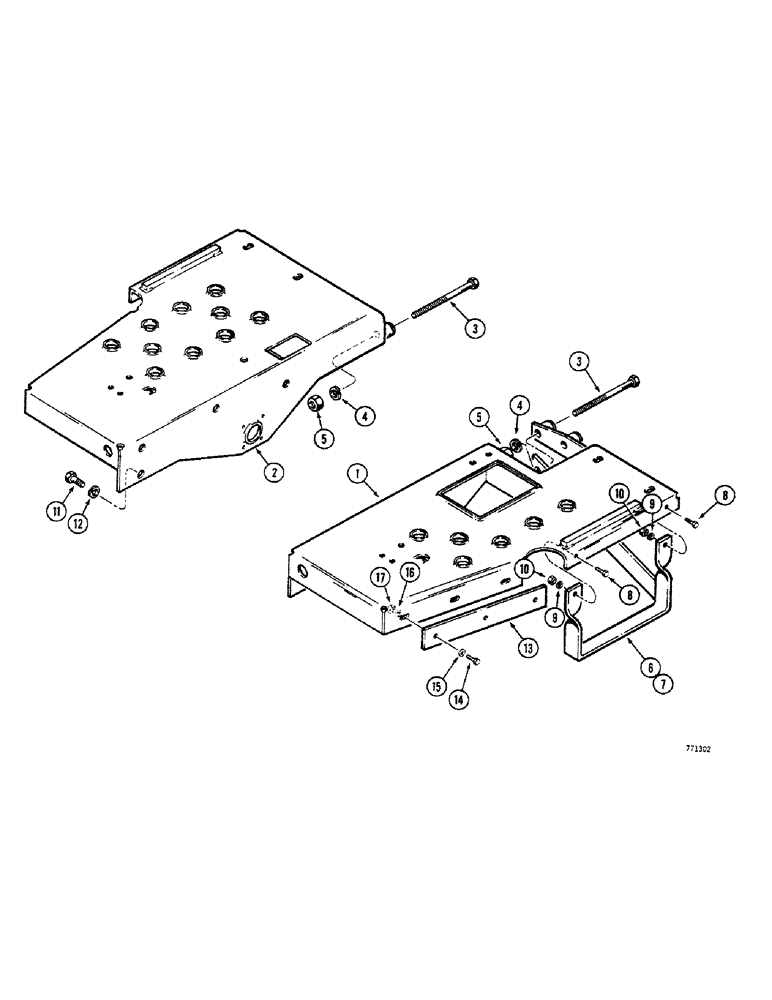

Запчасти Case 380CK (101A) - FULL FENDER FLOOR PLATES

1

K943550

FRAME

PLATE - floor, R.H.

1шт.

2

K943553

FRAME

PLATE - floor, L.H.

1шт.

3

13-792

BOLT

HHCS - 7/16" - 14 NC x 5-3/4"

2шт.

4

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

2шт.

6

K944297

X

STEP - R.H.

1шт.

7

K944296

X

STEP - L.H.

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Steps to floor plates Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

11

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Floor plates to frame Hex, 7/16"-14 x 1", G5, Full Thd

8шт.

12

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

13

K772177

STRIP

- nylon

2шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

HHCS - 5/16" - 18 NC x 7/8", plated, Fenders to floor plates

6шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

12шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.
