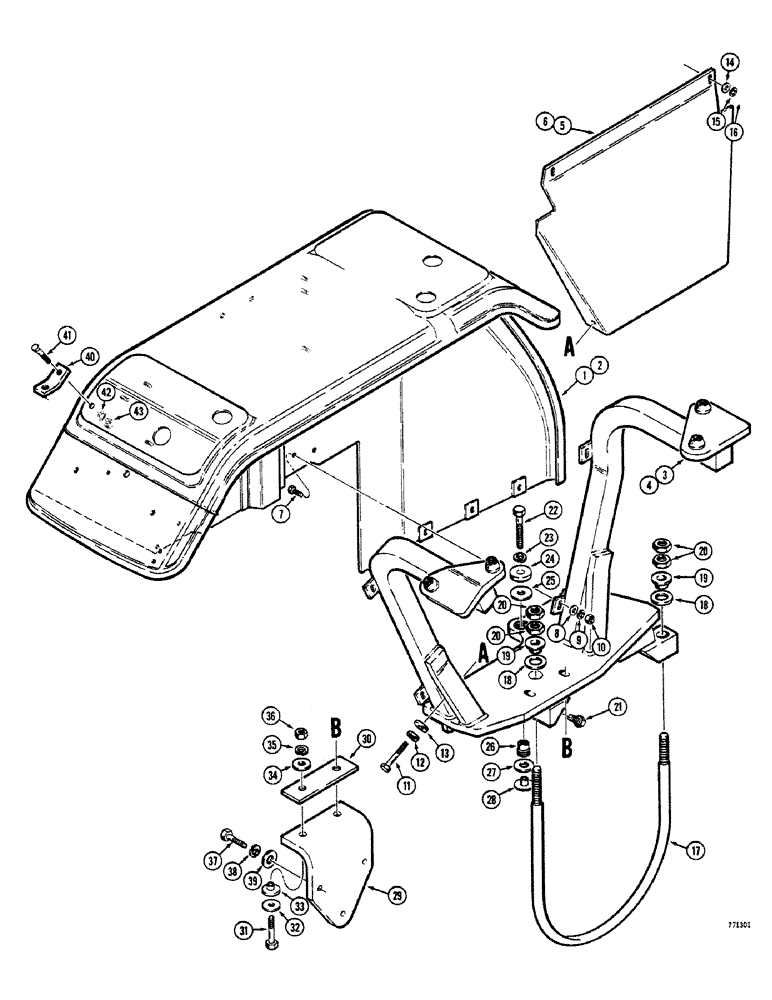

Запчасти Case 380CK (100) - FULL FENDERS

1

K775027

FENDER

- R.H.

1шт.

2

K775030

FENDER

- L.H.

1шт.

3

K771967

FRAME

SUPPORT - fender, R.H.

1шт.

4

K771966

FRAME

SUPPORT - fender, L.H.

1шт.

5

K773487

GUARD

SHIELD - mud, R.H. fender

1шт.

6

K773488

GUARD

SHIELD - mud, L.H. fender

1шт.

7

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

HHCS - 5/16" - 18 NC x 7/8", fender to support

16шт.

8

K626682

WASHER

- flat, 5/16"

16шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

10

9635082

NUT,5/16" - 18, Gr 5

16шт.

11

K600316

BOLT

HHCS - 5/16" - 18 NC x 2

4шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

13

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

- special, 5/16"

4шт.

14

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

15

95-4

WASHER,1/4"

- lock, 1/4"

4шт.

16

25-104

NUT,1/4"-20, G5

4шт.

17

K772171

BOLT

- U, 3/4" - 10 NC

2шт.

18

K19476

WASHER

- flat, 3/4"

4шт.

19

K771554

BUSHING

- nylon

4шт.

20

K607086

NUT

- hex, jam, 3/4" - 10 NC

8шт.

21

K771994

SCREW

BOLT - special, wedge block cushion

4шт.

22

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

HHCS - 1/2"-13 NC x 2-3/4", plated

4шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

24

K692049

WASHER

- flat, 1/2" special

4шт.

25

K773970

WASHER

- nylon, 1/2" special

4шт.

26

K773969

ADJUSTER

- fender support plate

4шт.

27

K692050

WASHER

- nylon, 1/2" special

4шт.

28

K771563

BUSHING

- nylon

4шт.

29

K772147

SUPPORT

PLATE - support, if used

2шт.

30

K772134

PAD

- support plate, if used

2шт.

31

K691839

BOLT

HHCS - 1/2" - 13 NC x 2-1/4"

4шт.

32

K691835

WASHER

- flat, 1/2", special

4шт.

33

K771938

BUSHING

- nylon

4шт.

34

K626686

WASHER

- flat, 1/2", special

4шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

36

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

37

113-2401

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

6шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

39

K626686

WASHER

- flat, 1/2", special

6шт.

40

K773886

BRACKET

- rear flood lamp

1шт.

41

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

42

92-8

LOCK WASHER,1/2"

plated 1/2"

1шт.

43

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.
