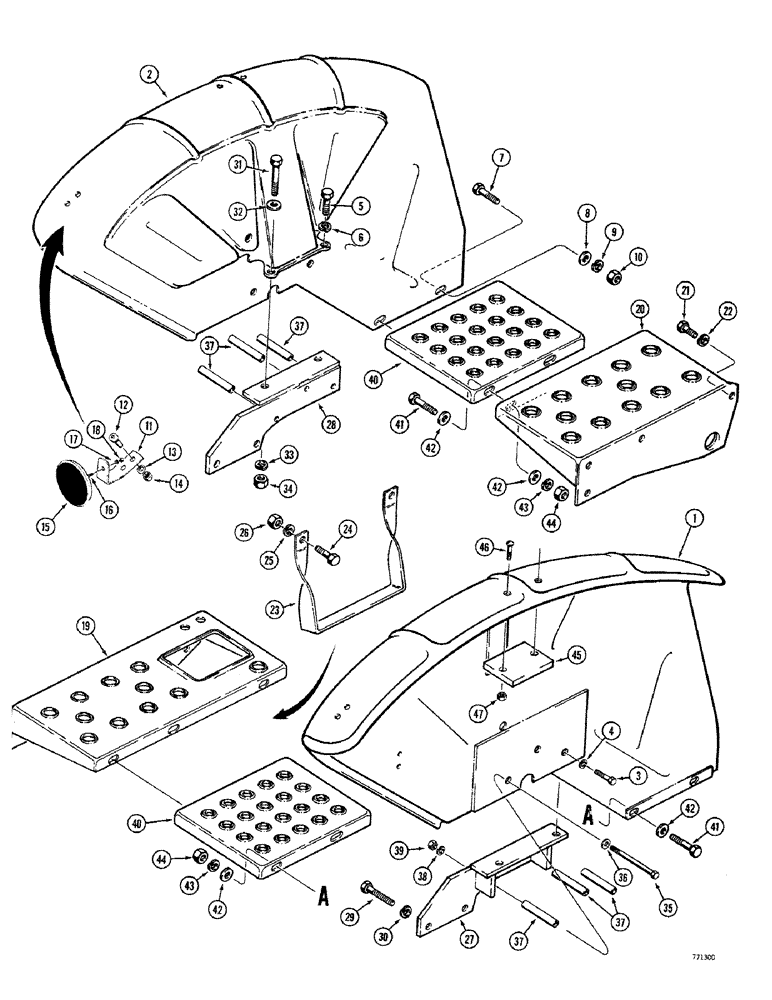

Запчасти Case 380CK (098) - SHELL FENDERS AND FLOOR PLATES

1

K914247

FENDER

- shell, R.H.

1шт.

2

K914302

FENDER

- shell, L.H.

1шт.

3

K603049

BOLT

HHCS - 7/16" - 14 NC x 7/8"

6шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

5

K603139

SCREW

HHCS - 1/2" - 13 NC x 7/8"

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

8

195-102

WASHER,1/4"

flat 1/4"

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

11

K943021

BRACKET

- reflector, if used

2шт.

12

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10 - 32 NF x 1/2"

4шт.

13

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

14

129-37

NUT,#10-32

4шт.

K964716

REFLECTOR

ASSEMBLY - service, Includes: Ref. 15 - 18

2шт.

15

NSS

NOT SOLD SEPARAT

REFLECTOR

1шт.

16

K603911

SCREW

- no. 8 - 32 NC x 3/4", plated, not serviced on original equipment reflectors

1шт.

17

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

18

129-16

NUT,#8-32

1шт.

19

K917620

PLATFORM

PLATE - floor, R.H.

1шт.

20

K921689

FRAME

PLATE - floor, L.H.

1шт.

21

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

9шт.

22

92-7

LOCK WASHER,7/16"

9шт.

23

K915422

SUPPORT

STEP - if used

1шт.

24

K602736

SCREW

HHCS - 1/4" - 20 NC x 7/8"

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

27

A145255

SUPPORT - fender, R.H., special parts used on lcg models only

1шт.

28

A145256

SUPPORT - fender, L.H., special parts used on lcg models only

1шт.

29

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Special parts used on LCG models only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Special parts used on LCG models only 1/2"

4шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Special parts used on LCG models only Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

32

195-533

WASHER,1/2", SAE

- flat, 1/2", special parts used on lcg models only

4шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Special parts used on LCG models only 1/2"

4шт.

34

129-105

NUT,Hex, 1/2" - 13, Gr 5

Special parts used on LCG models only 1/2"-13, G5

4шт.

35

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

Special parts used on lcg models only Hex, 3/8"-16 x 4 1/2", G5

6шт.

36

195-525

WASHER,3/8", SAE

- flat, 3/8", special parts used on lcg models only

6шт.

37

A145139

SPACER - fender, special parts used on lcg models only

6шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Special parts used on LCG models only 3/8"

6шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Special parts used on lcg models only 3/8"-16, G5

6шт.

40

A145254

PLATE - floor extension, special parts used on lcg models only

2шт.

41

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Special parts used on LCG models only Hex, 1/4"-20 x 3/4", G5, Full Thd

8шт.

42

195-102

WASHER,1/4"

flat, special parts used on lcg models only 1/4"

16шт.

43

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Special parts used on LCG models only 1/4"

8шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Special parts used on LCG models only

8шт.

45

A145629

PLATE - side lamp, if used, special parts used on lcg models only

2шт.

46

173-206

X

SCREW - round head, no. 10 - 24 NC x 1", special parts used on lcg models only

4шт.

47

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, , Special parts used on LCG models only #10-24, GA

4шт.
