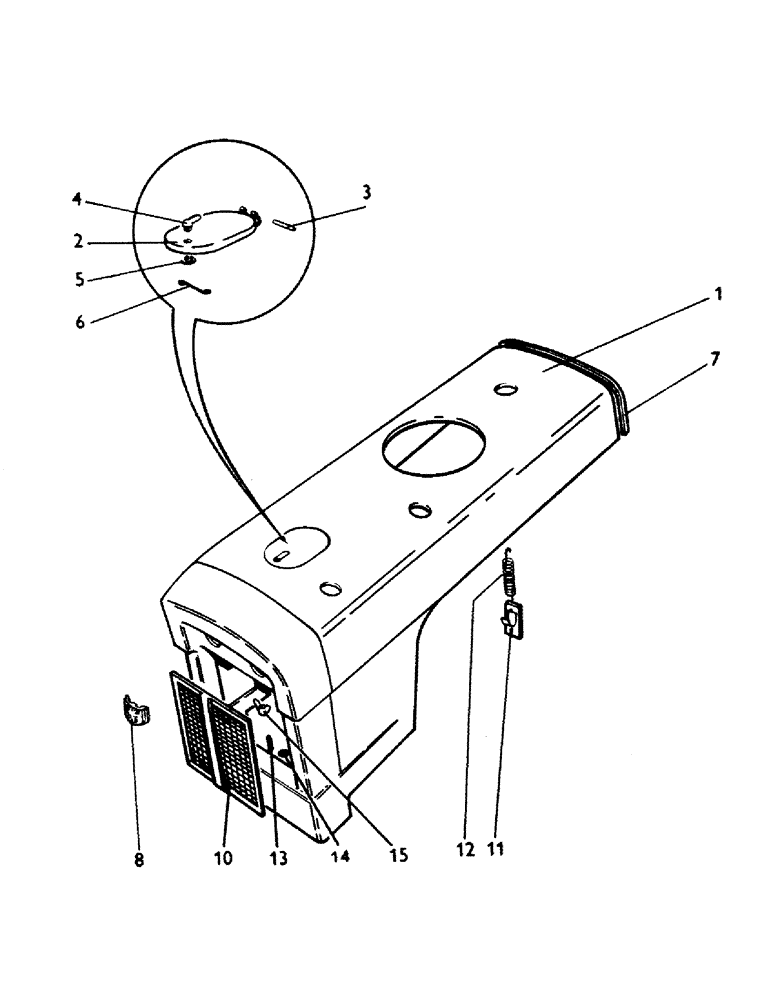

Запчасти Case 380CK (096) - HOOD

1

K964968

HOOD

Includes: Ref. 2 - 7

1шт.

2

K947160

COVER

- radiator cap, Inlcudes: Ref. 3 - 5

1шт.

3

K914557

SPRING

PIN - pivot, radiator cap cover

1шт.

4

K942158

LEVER

- lock, cover

1шт.

K626956

WASHER

- fiber, 7/16"

1шт.

K626899

SHIM

WASHER - brass, 7/16"

1шт.

5

K621588

RING, SNAP

RING - retaining, external (7/16")

1шт.

6

K917749

FASTENER

SPRING - radiator cover lock lever

1шт.

K11405

RIVET

- 1/8" x 3/8"

2шт.

K19495

WASHER

- 1/8"

2шт.

7

K914063

BEAD

BEARING - hood rear

1шт.

K624151

RIVET

- 1/8" x 1/8"

11шт.

8

K947387

DECAL

EMBLEM - tractor grille

1шт.

K916776

SPRING

RETAINER - emblem

1шт.

K627999

PLUG

- hood side

2шт.

K914804

PLUG

- hood front

4шт.

10

K947646

GRILLE

1шт.

K921811

FASTENER

-, Serial Range: grille-hood

2шт.

11

K88680

GRIP

CLIP - hood retaining

2шт.

12

K24728

SPRING

2шт.

13

K608125

STUD

- 5/16" - 18 NC x 1-3/4", Serial Range: hood-frame

1шт.

14

K91374

WASHER - rubber, hood to frame (5/16")

1шт.

K19471

WASHER

- 5/16"

1шт.

15

K607201

NUT

- wing, 5/16" - 18 NC

1шт.

K913139

BUTTON

GROMMET - hood

2шт.
