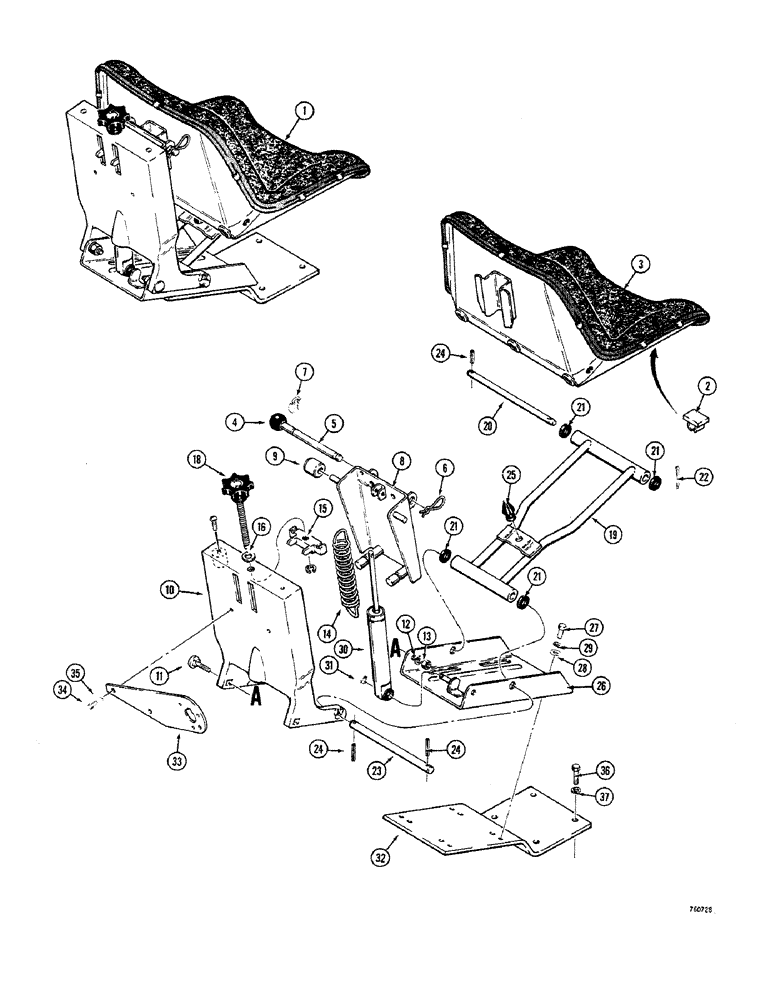

Запчасти Case 380CK (094) - SEAT

1

K950587

SEAT ASSEMBLY - including suspension, Includes: Ref. 2 - 31

1шт.

2

K950588

SEAT

ASSEMBLY, Includes: Ref. 2 - 7

1шт.

2

K963419

CATCH

- plastic

1шт.

3

K964819

SEAT COVER

COVER - seat cushion

1шт.

4

K963425

KNOB

- seat lock pin

1шт.

5

K963611

PIN

- locking

1шт.

6

K962439

SPRING

PIN - spring

1шт.

7

K963612

NO LONGER SERVICED

CLIP - lock pin

1шт.

K950589

SEAT

SUSPENSION ASSEMBLY - seat, Includes: Ref. 8 - 31

1шт.

8

K964786

SUPPORT

CARRIER - seat

1шт.

9

K962432

ROLLER

- nylon

2шт.

10

K964784

SPRING

FRAME - spring

1шт.

11

K963470

BOLT

- carriage, 10 MM

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

K962493

NUT

- 10 MM

2шт.

14

K964944

SPRING

- tension

2шт.

15

K962442

BRACKET

- spring tension

1шт.

16

K19474

HARDWARE

WASHER - flat, 1/2"

1шт.

18

K963418

SCREW

- tension

1шт.

19

K963431

BEAM

- suspension

1шт.

20

K963452

PIN

- locating

1шт.

21

K962431

BUSHING

4шт.

22

132-68

PIN

- cotter, 5/32" x 7/8"

1шт.

23

K962441

PIN

- pivot

1шт.

24

138-95

PIN - roll, 3/16" x 1" 3/16" x 15/16", Slotted

3шт.

25

K962434

STOP

- rubber

1шт.

26

K964791

BRACKET

SUPPORT - sliding

1шт.

27

K602982

SCREW,3/8" - 16 x 3/4", Gr S

HHCS - 3/8" - 16 NC x 3/4"

4шт.

28

K19472

WASHER

- flat, 3/8"

4шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

30

K964817

DAMPER

CYLINDER - hydraulic cushion

1шт.

K962433

PIN

- if used, not illustrated

2шт.

31

K962494

RING, SNAP

RING - retaining

1шт.

32

K943046

BRACKET

- seat attaching

1шт.

33

K948022

BRACKET

- trailer socket

1шт.

34

131-2

NUT,1/4"-20, GB

HHCS - 1/4" - 20 NC x 5/8", plated

2шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
