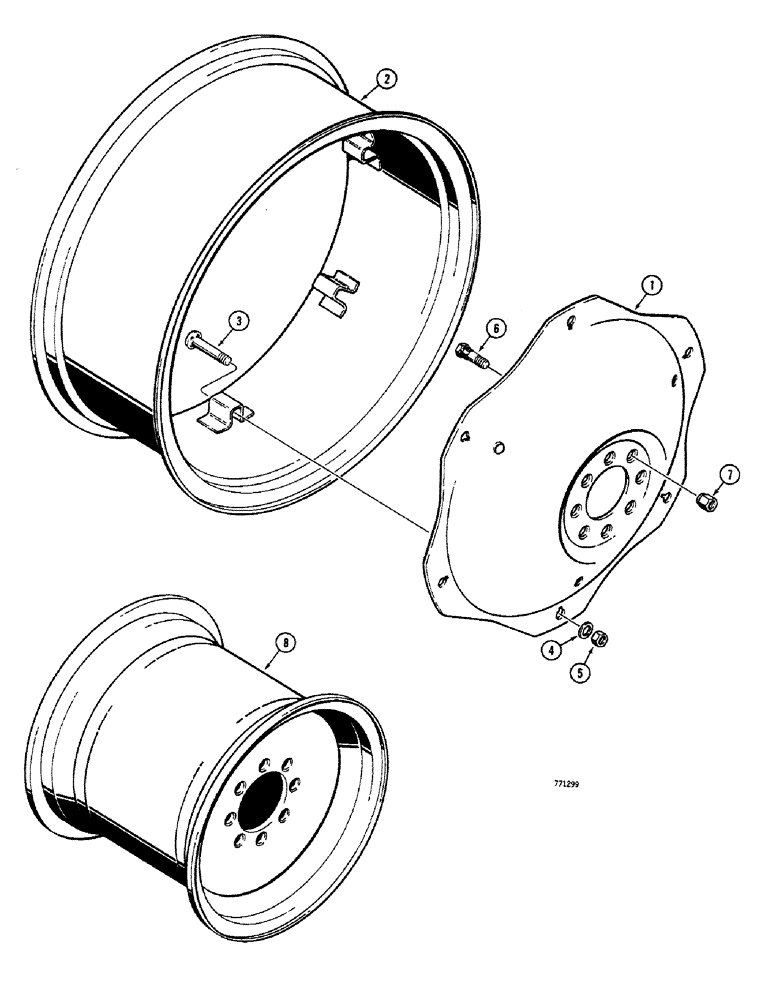

Запчасти Case 380CK (091A) - REAR WHEELS, GENERAL PURPOSE MODELS

K947924

RIM

WHEEL ASSEMBLY - for 14.9/13-28 tires, Includes: Ref. 1 - 5

2шт.

1

K905284

WHEEL

DISC - wheel, demountable

1шт.

2

K67980

WHEEL

RIM - tire

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, special, 5/8" - 18 NF

16шт.

4

K19475

WASHER

- flat, special, 5/8"

16шт.

5

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

16шт.

6

K611266

BOLT

-, Serial Range: hub-wheel

16шт.

7

K617171

WHEEL NUT

- wheel attaching bolt

16шт.

K948185

RIM

WHEEL ASSEMBLY - for 14.9/13-24 tires, Includes: Ref. 1 - 5

2шт.

1

K907539

WHEEL

DISC - wheel, demountable

1шт.

2

K948186

RIM

- tire

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, special, 5/8" - 18 NF

12шт.

4

K19475

WASHER

- flat, special, 5/8"

12шт.

5

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

12шт.

6

K611266

BOLT

-, Serial Range: hub-wheel

16шт.

7

K617171

WHEEL NUT

- wheel attaching bolt

16шт.

6

K611266

BOLT

- hub to wheel, lcg models only

16шт.

7

K617171

WHEEL NUT

- wheel attaching bolt, lcg models only

16шт.

8

A143945

WHEEL

- for 18.4 - 16.1 tires, lcg models only

2шт.
