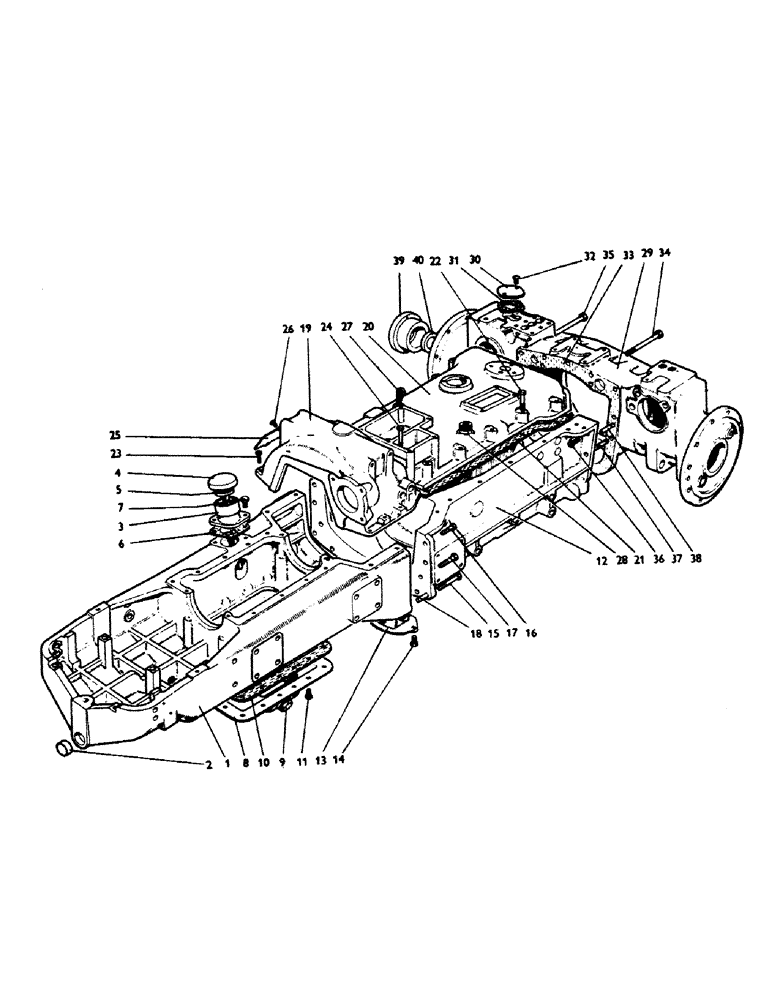

Запчасти Case 380CK (088) - CHASSIS

1

K942478

FRAME

- main front

1шт.

2

K621427

BUSHING

- front, front axle pivot pin

1шт.

K621301

BUSHING

- rear, front axle pivot pin

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

3

K902042

FILLER

- oil

1шт.

4

K912773

DIPSTICK

CAP - filler and dipstick

1шт.

5

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- filler cap

1шт.

6

K902043

SEAL

- filler cap to front main frame

1шт.

7

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

K907339

COVER

PAN - oil

1шт.

9

K623825

PLUG

- drain, 1/2" BSP

1шт.

K626793

WASHER

- sealing, 7/8"

1шт.

10

K907585

GASKET

- oil pan to front main frame

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

12

K929250

FRAME

- main, rear

1шт.

K623789

PLUG

- core, main frame, 1"

2шт.

13

K947404

COVER

- clutch housing

1шт.

14

K602744

BOLT

HHCS - 1/4" - 20 NC x 5/8"

2шт.

K19470

WASHER

- 1/4"

2шт.

15

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Front frame to rear frame Hex, 7/16"-14 x 3 3/4", G5

4шт.

16

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Front frame to rear frame Hex, 7/16"-14 x 1 1/4", G5, Full Thd

2шт.

17

13-734

BOLT,Hex, 7/16" - 14 x 2-1/8", Gr 5

HHCS - 7/16" - 14 NC x 2-1/8", front frame to rear frame

4шт.

25-107

NUT,7/16"-14, G5

- 7/16" - 14 NC

4шт.

92-7

LOCK WASHER,7/16"

10шт.

18

K621852

PIN

DOWEL - 5/8" - 1-5/8", front frame to rear frame

2шт.

19

K929669

CLUTCH HOUSING

HOUSING - clutch

1шт.

K929668

STRIP

- sealing, clutch housing

1шт.

20

K945687

COVER

- gear box

1шт.

K690973

FITTING

- grease, clutch cross shaft

2шт.

21

K929663

GASKET,0.2mm Thk

- gear box, Serial Range: cover-frame

2шт.

22

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

10шт.

92-7

LOCK WASHER,7/16"

10шт.

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Clutch housing to frame Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

23

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

Clutch housing to frame Hex, 3/8"-16 x 1 5/8", G5

4шт.

24

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4", clutch housing to frame

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

25

K89387

COVER

PLATE - inspection, clutch compartment

1шт.

26

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

K942348

SLEEVE

- dipstick

1шт.

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

- dipstick

1шт.

K947615

DIPSTICK

- transmission

1шт.

28

K12362

PLUG

- tapered, 1" BSP

1шт.

29

K924785

SHAFT

CASE - rear axle

1шт.

K623826

PLUG

- drain, 3/4" BSP

1шт.

K626315

WASHER

- sealing, 1-1/16"

1шт.

30

K929463

COVER

PLATE - cover

1шт.

31

K929464

GASKET

- cover plate

1шт.

32

K604089

SCREW

HHCS - 5/16" - 18 NC x 1-5/8"

2шт.

33

K926122

GASKET,0.25mm Thk

- rear main frame to rear axle case and gear box

1шт.

34

13-772

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

Axle to gear box cover Hex, 7/16"-14 x 4 1/2", G5

4шт.

92-7

LOCK WASHER,7/16"

4шт.

35

13-7124

BOLT,Hex, 7/16" - 14 x 7-3/4", Gr 5

HHCS - 7/16" - 14 NC x 7-3/4", axle case to gear box cover

1шт.

92-7

LOCK WASHER,7/16"

1шт.

36

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Axle case to rear main frame Hex, 7/16"-14 x 1 1/4", G5, Full Thd

2шт.

193-11

LOCK WASHER,Ext Tooth, 7/16"

WASHER - external tooth lock, 7/16"

2шт.

37

K608318

STUD

- 7/16" - 14 NC x 2", axle case to rear frame

7шт.

25-107

NUT,7/16"-14, G5

- 7/16" - 14 NC

7шт.

92-7

LOCK WASHER,7/16"

7шт.

K19483

SPRING WASHER

- lock, 7/1"

7шт.

38

K621826

PIN

DOWEL

2шт.

39

K62356

HOUSING

- oil seal

2шт.

40

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

- oil, 1-3/4" x 3-3/16" x 1/2"

4шт.
