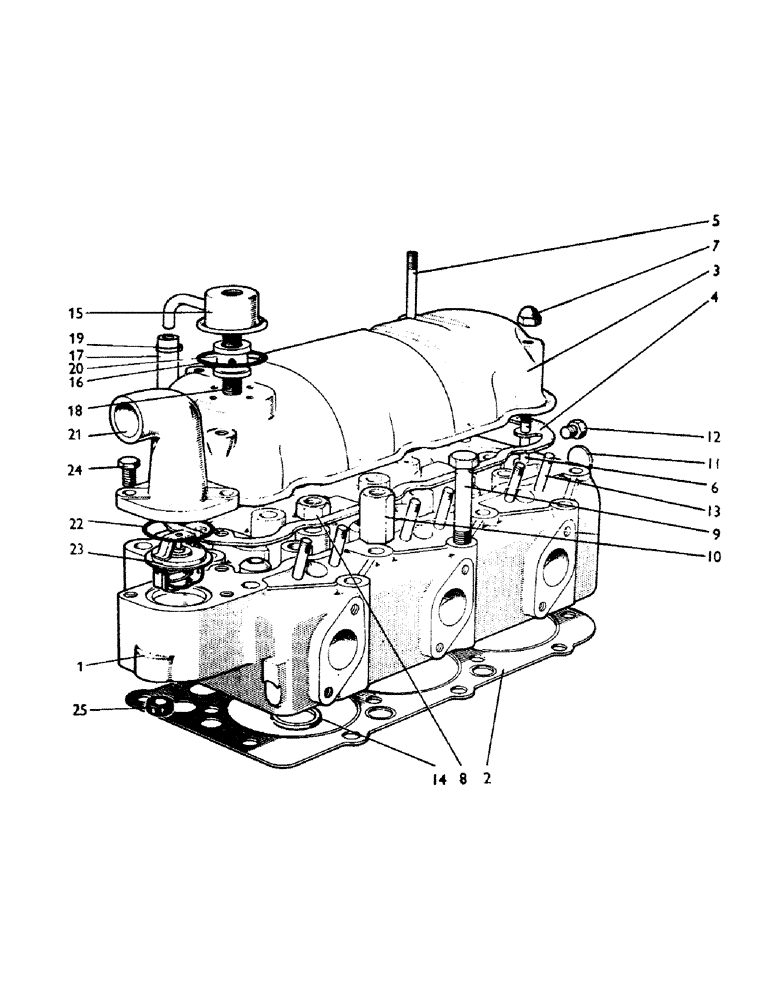

Запчасти Case 380CK (012) - CYLINDER HEAD

1

K962566

CYLINDER

HEAD - cylinder, includes valve seat inserts and plugs

1шт.

2

K942006

GASKET

- head to block, oil impregnated asbestos (See alternate gasket above)

1шт.

3

K921488

COVER

- cylinder head

1шт.

4

K907338

GASKET,3.97mm Thk

- cylinder head cover

1шт.

5

K608118

STUD

- 5/16" - 18 NC x 3-7/16" (Cylinder head cover)

2шт.

6

K608111

STUD

- 5/16" - 18 NC x 3" (Cylinder head cover)

2шт.

K14988

WASHER

- copper-asbestos, 5/16" (Cylinder head cover)

4шт.

7

K607252

NUT

- domed, 5/16" - 18 NC

4шт.

8

K617581

NUT

- special, 1/2" - 20 NF, Serial Range: (Head-block)

4шт.

9

K600870

BOLT

- special, 1/2" - 13 NC x 4-1/4", Serial Range: (Head-block)

9шт.

10

K906898

NUT

- lifting, 1/2" - 13 NC

2шт.

K900431

PLUG

- taper

3шт.

11

K623810

PLUG

- Welch, 1"

2шт.

12

K19591

PLUG

- flanged, 1/8" BSP

1шт.

K16732

WASHER

- copper, 3/8"

1шт.

K608203

STUD

- exhaust manifold, 3/8" - 16 NC x 1-7/16"

5шт.

K608214

STUD

- exhaust manifold, 3/8" - 16 NC x 2"

1шт.

13

K608107

STUD

- fuel injector, 5/16" - 18 NC x 2-11/16"

6шт.

9635082

NUT,5/16" - 18, Gr 5

- fuel injector mtg., 5/16" - 18 NC

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

14

K921246

INSERT

- intake valve seat

3шт.

K921247

INSERT

- exhaust valve seat

3шт.

15

K921489

COVER

- breather

1шт.

16

K626901

O-RING,40554" ID x 40575" OD x 0.12"

- "O"ring, 1-5/8" I.D.

1шт.

17

K920676

PIPE

HOSE - 5/8" I.D. x 20" long

1шт.

18

K920677

BREATHER

CONNECTOR - breather

1шт.

19

214-107

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, 3/4" I.D.

1шт.

20

KK909672

SPACER - breather

1шт.

K626443

WASHER

- copper, 1/2"

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

- lock, 1/2" - 20 NF

1шт.

21

K921853

OUTLET

- water

1шт.

22

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

23

K900368

THERMOSTAT

1шт.

K910411

GASKET

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

25

K915330

SEALING RING

SEAL - rubber, water pump to cylinder head

1шт.
