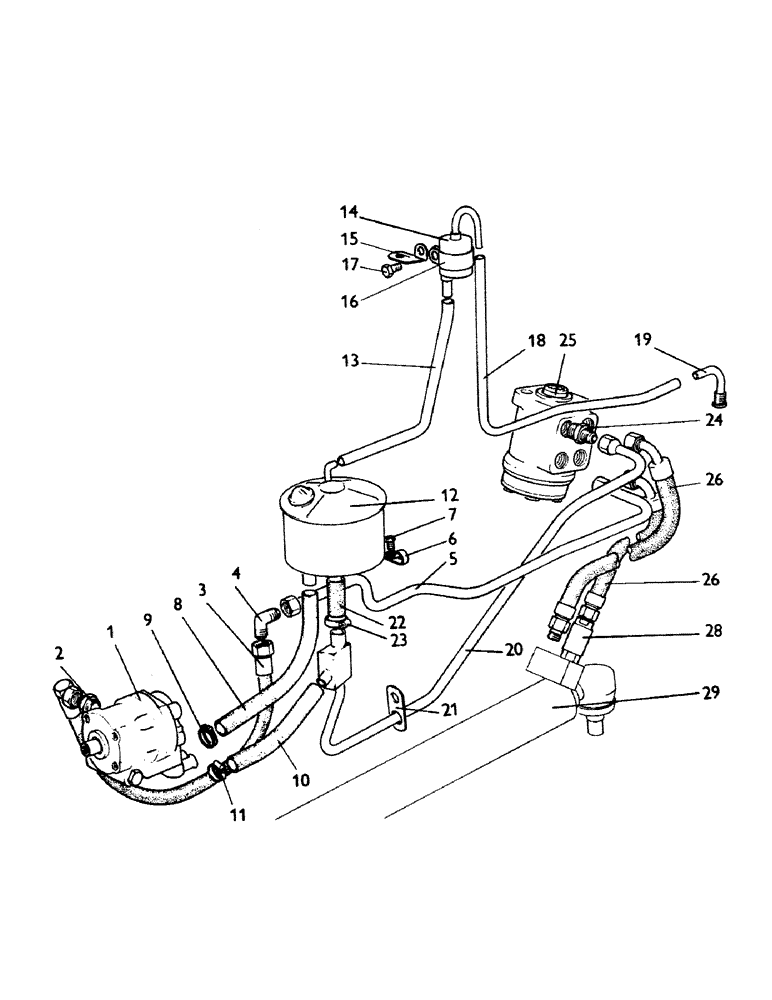

Запчасти Case 380CK (084) - STEERING HYDRAULICS

1

K944379

PUMP

- power steering, parts list Figure 80

1шт.

2

K626059

ADAPTER

- pump outlet

1шт.

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - sealing

1шт.

3

K759670

HOSE

- pressure, 20-1/2" long

1шт.

4

K622121

FITTING

ELBOW - male

1шт.

5

K944972

PIPE

TUBE - pump to steering valve

1шт.

6

K621689

CLIP

CLAMP - tube

1шт.

7

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- #10 - 32 NF x 1/2", tube to reservoir bracket

1шт.

K626380

WASHER

- med. sect. lock, 3/16"

1шт.

K617080

NUT

- #10 - 32 NF

1шт.

8

K913632

HOSE

- pump inlet, 5/8" I.D. x 12" long

1шт.

9

K13070

HOSE

CLAMP - hose, 7/8"

2шт.

10

K944383

HOSE

- pump by-pass, 1/2" I.D. x 8-3/4" long

1шт.

11

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16"

2шт.

K19928

CLIP

CLAMP - hose

1шт.

12

K943592

RESERVOIR

- steering pump, parts list Figure 80

1шт.

13

K940961

BREATHER

TUBE - plastic, 5/16" I.D. x 10-1/2" long

1шт.

14

K940377

SEPARATOR

- oil

1шт.

15

K929319

SUPPORT

BRACKET - support

1шт.

16

K913053

WASHER

CLAMP - oil separator

1шт.

K929320

CLIP

STRIP - rubber

1шт.

17

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" - 18 NC

1шт.

18

K928174

BREATHER,0.375" OD x 28.75" L

TUBE - plastic, 5/16" I.D. x 30" long

1шт.

19

K928171

BREATHER

ELBOW - special

1шт.

K15735

WASHER

- 1/2"

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" - 20 NF

1шт.

20

K944973

PIPE

TUBE - steering, Serial Range: valve-reservoir

1шт.

21

K944366

CLIP

CLAMP -, Serial Range: tube-starter

1шт.

K627723

GROMMET

-, Serial Range: tube-starter

1шт.

22

K926992

HOSE

- return, tee to reservoir, 1/2" I.D. x 2-1/8"

1шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16"

1шт.

24

K626039

FITTING

UNION - steering valve

4шт.

25

K964189

MOTOR

VALVE - steering, parts list Figure 76

1шт.

26

K945756

HOSE

- flexible, steering valve to steering cylinder

2шт.

K19928

CLIP

CLAMP - hose

3шт.

28

K945714

VALVE

- in-line, parts list Figure 78

1шт.

29

K945702

CYLINDER

- steering, parts list Figure 78

1шт.
