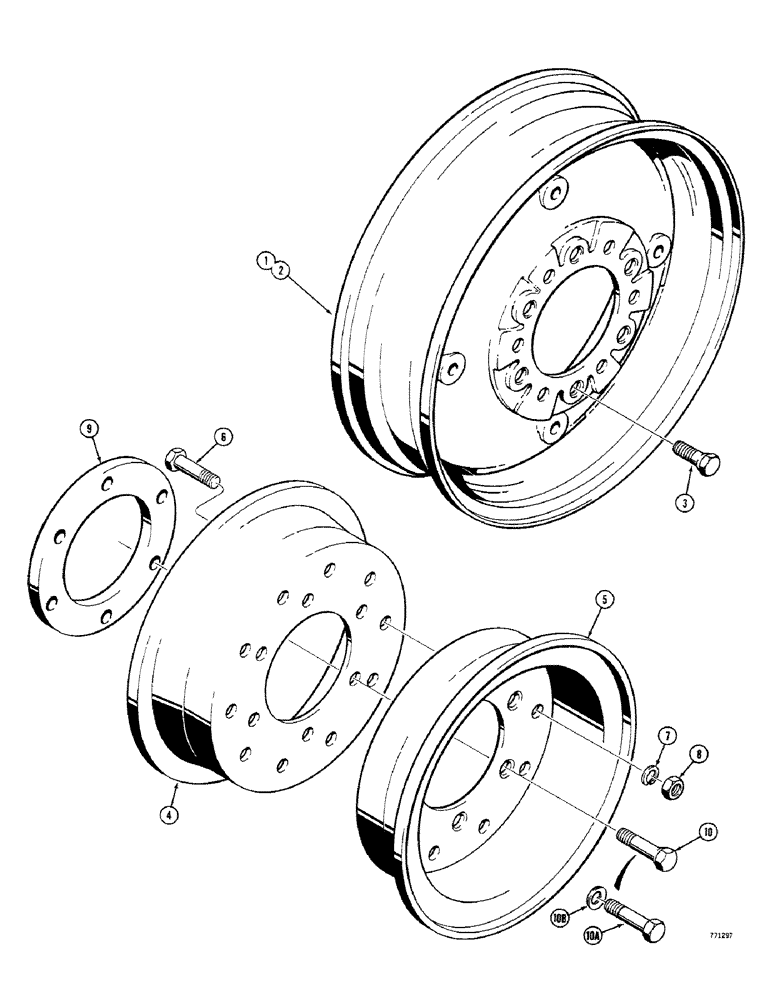

Запчасти Case 380CK (077E) - FRONT WHEELS, GENERAL PURPOSE MODELS

1

G57046

WHEEL ASSY.

WHEEL - front, for 7.50 x 16 tires

2шт.

2

K947937

WHEEL

- front, for 6.00 x 16

2шт.

3

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

BOLT - wheel, special tapered head

12шт.

4

A143944

WHEEL

HALF - inner, for 7.50 x 10 tires, lcg models only

2шт.

5

A143943

WHEEL

HALF - outer, for 7.50 x 10 tires, lcg models only

2шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 1-7/8", plated, lcg models only

20шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , LCG models only 1/2"

20шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

LCG models only 1/2"-13, G5

20шт.

9

A145049

SPACER

- front wheel, lcg models only

2шт.

10

113-2408

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- wheel, special tapered head, if used, lcg models only

12шт.

10a

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used, LCG models only Hex, 1/2"-13 x 2", G5

12шт.

10b

K626687

WASHER

- cone, used with ref 10A, if used, lcg models only

12шт.
