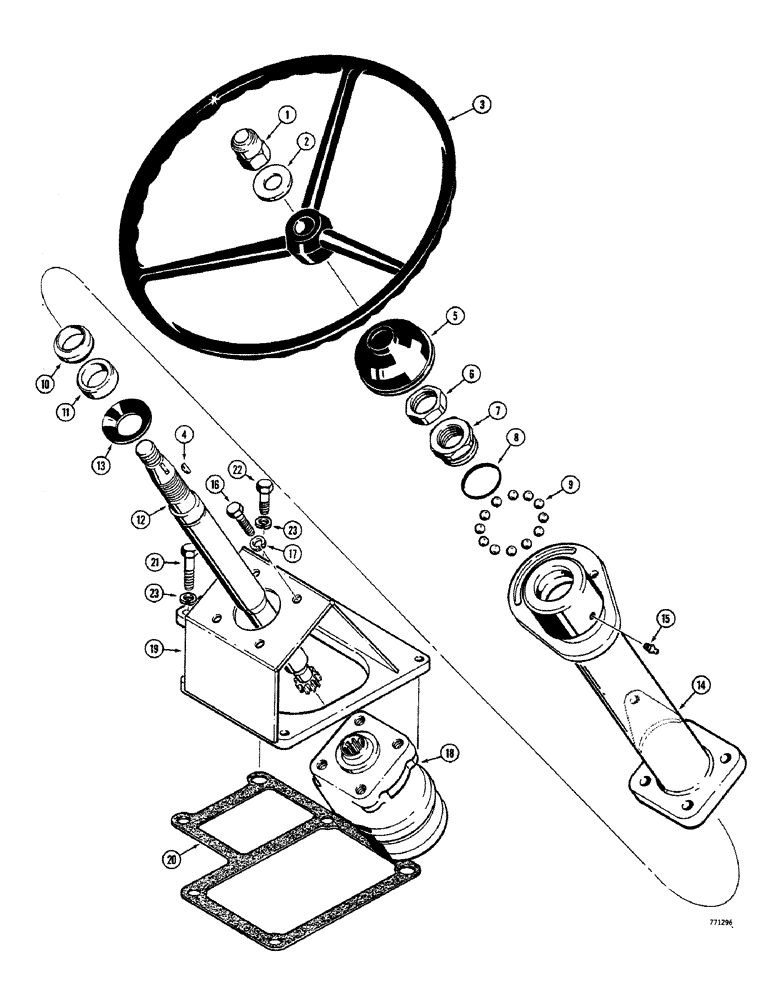

Запчасти Case 380CK (076) - STEERING WHEEL AND COLUMN

1

K905679

NUT

- dome, 5/8" - 11 NC

1шт.

2

K626671

WASHER

- special, 5/8"

1шт.

3

K912634

HANDWHEEL

WASHER - steering

1шт.

4

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(No. 606) #9, 3/16" x 3/4"

1шт.

5

K923681

SEAL

BOOT - steering column

1шт.

6

K924967

NUT

- lock

1шт.

7

K903463

BEARING CONE

BEARING - adjustable

1шт.

8

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

- seal

1шт.

9

211-210

BALL,3/8" Dia

- steel,3/8"

12шт.

10

K903462

SPHERICAL BEARING

BEARING - lower

1шт.

11

K903461

SPACER

SEAT - bearing

1шт.

12

K943340

SHAFT

- steering

1шт.

13

K903469

PAD, RUBBER

BAFFLE - rubber

1шт.

14

K943336

SUPPORT ASSY.

COLUMN - steering

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

16

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-3/8" column to support

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

REF

INSTRUCTION

VALVE - steering, parts list figure 77A or 77C

1шт.

19

K943335

SUPPORT

BRACKET - support

1шт.

20

K914138

GASKET

-, Serial Range: bracket-gearbox

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

22

13-REF

HHCS - 3/8" - 16 NC x 7/8"

4шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.
