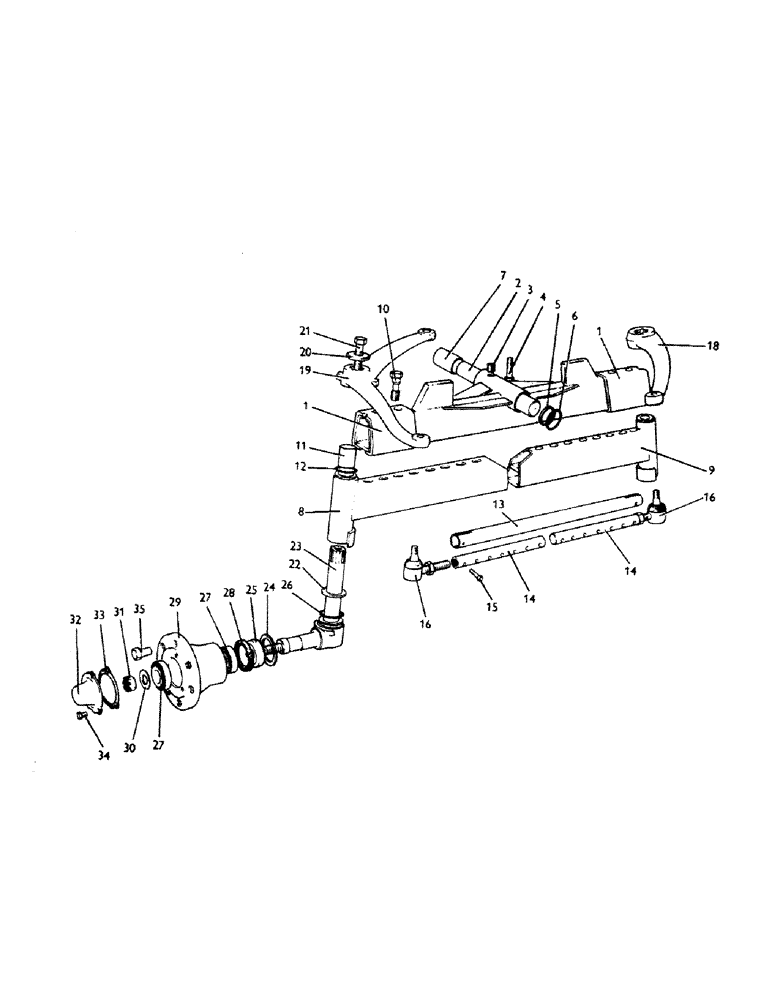

Запчасти Case 380CK (074) - FRONT AXLE

1

K942414

BEAM

- center, front axle

1шт.

2

K942480

TRUNNION

PIN - pivot, front axle

1шт.

K16351

O-RING,3.53mm Thk x 24.99mm ID

SEAL - "O"ring, 1" I.D. (Pivot pin)

1шт.

3

K913092

NUT

BUSHING

1шт.

4

K600508

BOLT

HHCS - 3/8" - 16 NC x 2-1/2"

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

K917440

WASHER

- thrust

2шт.

6

K14508

O-RING,1.975" ID x 2.395" OD x 0.12"

SEAL - "O"ring, 15/16" I.D.

2шт.

7

K621427

BUSHING

- front, main frame

1шт.

K621301

BUSHING

- rear, main frame

1шт.

8

K963520

SHAFT

BEAM - extension, L.H. (Includes 2 - K11598 bushings)

1шт.

9

K963521

SHAFT

BEAM - extension, R.H. (Includes 2 - K11598 bushings)

1шт.

10

K601308

BOLT

- special, 3/4" - 10 NC x 3-1/8"

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

11

K11598

BUSHING

- extension beam

4шт.

12

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

SEAL - "O"ring, 2" I.D.

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Main frame) 1/4"-28 NPT x .54" lg

2шт.

K942479

ADAPTER

- 7/16" - 14 NC 10 1/4" ANF, grease fitting

1шт.

13

K942852

DRAG LINK,25.8 mm ID x 28.875 " L

TUBE - spacer, 28-7/8" long

1шт.

14

K912709

ROD

- tread width adjusting

2шт.

15

K600316

BOLT

HHCS - 5/16" - 18 NC x 2-1/4"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

K955528

BALL

JOINT

2шт.

K961701

BOOT

SHIELD - dirt, rubber

1шт.

K622500

LOCK NUT

- special, lock 3/4"

1шт.

K617104

NUT

- slotted, 1/2" - 20 NF

1шт.

132-28

COTTER PIN,3/32" x 1"

PIN, Split (Cotter), 3/32" x 1"

2шт.

18

K942525

LEVER

- steering, R.H.

1шт.

19

K943346

LEVER

- steering, L.H.

1шт.

20

K15595

WASHER

- special, 5/8"

2шт.

21

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4"

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

- thrust

2шт.

23

K963522

SHAFT

AXLE ASSEMBLY - stub, Includes: Ref. 24 and 25

2шт.

24

K906568

RING

SHIELD - dirt

1шт.

25

K906569

SLEEVE

- oil seal

1шт.

26

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

SEAL - "O"ring, 2" I.D.

2шт.

27

K620046

BEARING

- tapered roller

4шт.

28

K623450

OIL SEAL

- oil, 2-1/8" x 3" x 1/2"

2шт.

29

K910176

HUB

- front

2шт.

30

K626673

WASHER

- special, 3/4"

2шт.

31

K617157

NUT

- slotted, 3/4" - 16 NF

2шт.

K623603

PIN

- cotter, 11/64" x 1-1/8"

2шт.

32

K908913

CAP

- hub

2шт.

33

K15344

GASKET,0.25mm Thk

2шт.

34

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

HHCS - 5/16" - 18 NC x 5/8"

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Front hub) 1/4"-28 NPT x .54" lg

12шт.

35

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

BOLT - wheel

12шт.

K628086

PLUG,Cap, .848" OD

- plastic, beam extension holes

12шт.
