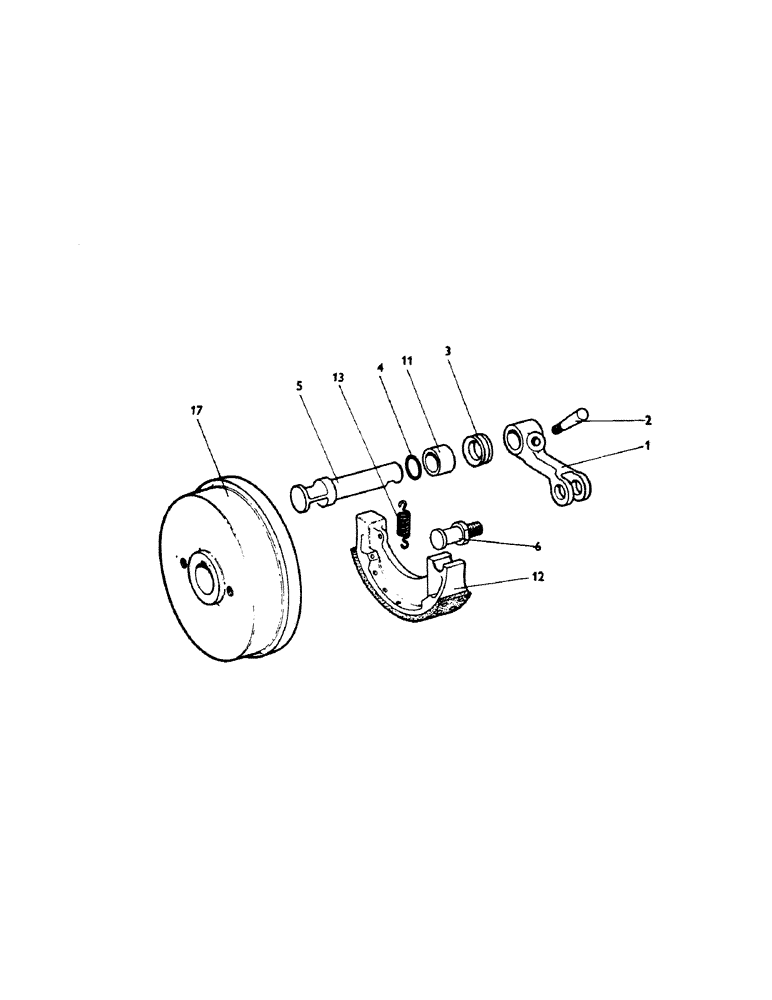

Запчасти Case 380CK (072) - BRAKE DRUMS, SHOES AND INSTRUMENT PANEL, BRAKE DRUMS AND SHOES

1

K928589

LEVER

- cam, 4-1/2"

2шт.

2

K609425

LARGE PIN

PIN - cam lever

2шт.

K19472

WASHER

- 3/8"

2шт.

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC

2шт.

3

K85417

SEAL

BOOT

2шт.

4

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O"ring, 1" I.D.

2шт.

5

K912000

BRAKE

CAMSHAFT - brake, L.H.

1шт.

K912001

BRAKE

CAMSHAFT - brake, R.H.

1шт.

K912002

GUARD

SHIELD - dirt, brake camshaft

2шт.

6

K906002

PIN

- pivot

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

K30835

BUSHING

- axle house

4шт.

12

K903806

BRAKE ASSY.

SHOE - brake, includes lining and rivets

4шт.

K960595

PADDING

LINING - brake shoe, includes rivets

4шт.

13

K63462

SPRING

- brake shoes

4шт.

17

K905641

BRAKE

DRUM - brake

2шт.
