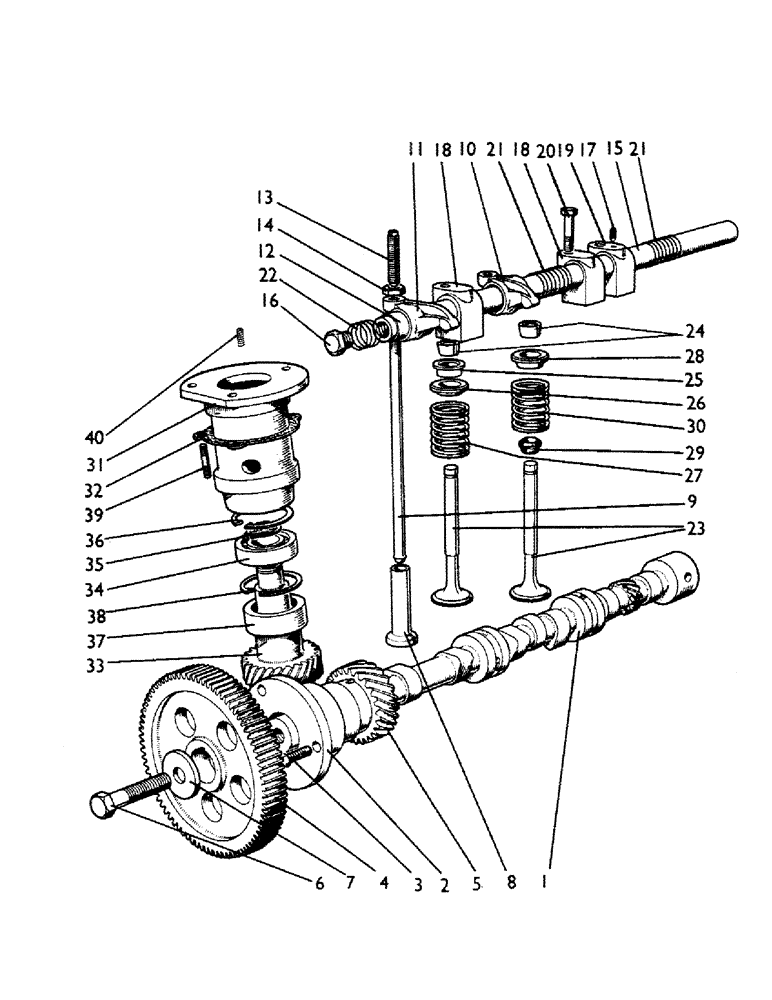

Запчасти Case 380CK (010) - VALVE MECHANISM AND TIMING GEAR

1

K914527

CAMSHAFT

1шт.

2

K907336

HOUSING

- camshaft locating

1шт.

3

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

4

K907335

PINION

GEAR - camshaft

1шт.

5

K909920

DRIVE

GEAR - injection pump drive

1шт.

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

(No. 506) #8, 5/32" x 3/4"

2шт.

6

K907572

BOLT

- 1/2" - 13 NC x 2-1/4" (Camshaft gear retaining)

1шт.

7

K907571

WASHER

- special, 1/2" I.D. (Camshaft gear retaining)

1шт.

8

K901137

TAPPET

6шт.

9

K902035

ROD

- push

6шт.

10

K961052

ROCKER

ARM - valve (2, 4, 6 - from front), Includes: Ref. 12

3шт.

11

K961053

ROCKER

ARM - valve (1, 3, 5 - from front), Includes: Ref. 12

3шт.

12

K11060

BUSHING

- rocker arm

1шт.

13

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

- adjusting, 3/8" - 16 NC

6шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

- lock, 3/8" - 16 NC

6шт.

15

K907920

TUBE

SHAFT - rocker arm

1шт.

16

K19590

PLUG

- 3/8" BSP

2шт.

17

K606051

SET SCREW,5/16" - 18 x 1/2"

- set. 5/16" - 18 NC x 1/2"

1шт.

18

K921431

BRACKET

- rocker arm shaft (No's. 1 and 2)

2шт.

19

K921432

BRACKET

- rocker arm shaft (Rear)

1шт.

20

13-742

BOLT,Hex, 7/16" - 14 x 2-5/8", Gr 5

3шт.

92-7

LOCK WASHER,7/16"

3шт.

K19473

WASHER

- 7/16" I.D.

3шт.

21

K11017

SPRING

- locating, intermediate

2шт.

22

K907919

WASHER

SPRING - locating ends

2шт.

23

K928622

STD INLET VALVE

VALVE - intake and exhaust, standard

6шт.

23

K928986

VALVE

- intake and exhaust, .010" oversize stem

6шт.

23

K928987

VALVE

- intake and exhaust, .020" oversize stem

6шт.

24

K943439

LOCKING DEVICE

LOCK - intake and exhaust valve

12шт.

25

K928623

COLLAR

- inner, exhaust valve

3шт.

26

K928624

COLLAR

- outer, exhaust valve

3шт.

27

K921436

VALVE SPRING

SPRING - exhaust valve

3шт.

28

K921437

COLLAR

- intake valve

3шт.

29

K940481

OIL SEAL

- intake valve

3шт.

30

K921435

SPRING

- intake valve

3шт.

31

K910608

HOUSING

- bearing

1шт.

32

K907922

GASKET

- housing to cylinder block

1шт.

33

K912483

GEAR

- driven, injection pump

1шт.

34

K24489

BALL BEARING

BEARING - ball

1шт.

35

K11128

CIRCLIP

RING - retaining, external (1")

1шт.

36

K13170

RING, SNAP

RING - retaining, external (52 MM)

1шт.

37

K620072

BEARING

- needle roller

1шт.

38

K621680

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

39

K608121

STUD

- 5/16" - 18 NC x 1-7/8"

3шт.

40

K624903

SPRING

- pump shaft location

1шт.
