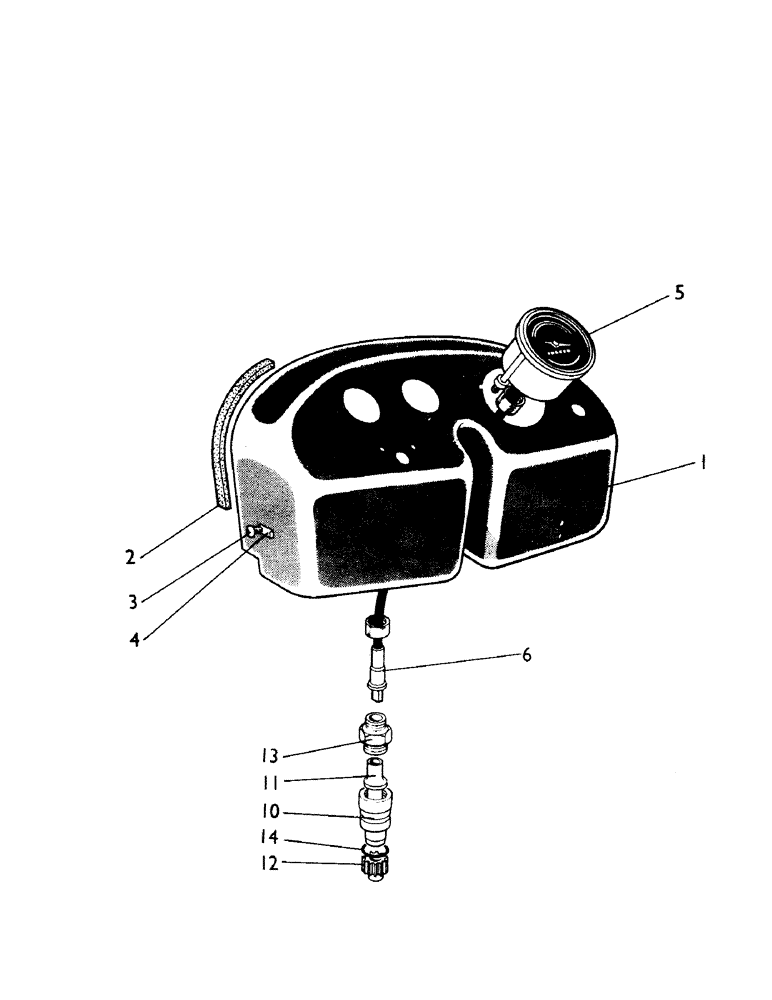

Запчасти Case 380CK (072[1]) - INSTRUMENT PANEL

1

K943349

PANEL

- instrument

1шт.

2

K913391

STRIP

- seating

3шт.

3

K615403

SCREW

- #10 - 32 NF x 3/8"

4шт.

K626572

WASHER

- lock, 3/16"

4шт.

4

K624583

NUT

- cage, #10 - 32 NF

4шт.

5

K942232

ELECTRICAL GAUGE

TACHOMETER - AC-Delco 7979160

1шт.

6

K942235

FLEXIBLE DRIVE SHAFT

CABLE ASSEMBLY - Tachometer, AC-Delco 7979151

1шт.

K942236

CABLE

- Tachometer, (Inner) AC-Delco 7979152

1шт.

K10518

BUCKLE

CLAMP - cable

1шт.

10

K908181

HOUSING

- tachometer drive

1шт.

11

K908182

DRIVE

SPINDLE - tachometer drive

1шт.

12

K908183

DRIVE

GEAR - driven (13 teeth)

1шт.

K623933

SPRING

PIN - roll, 1/8" x 5/8"

1шт.

13

K620008

ADAPTER

-, Serial Range: housing-cable

1шт.

K19502

WASHER

- fiber, 7/8"

1шт.

14

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

SEAL "O"ring, 3/4" I.D.

1шт.

K908184

SCREW

- locking, 5/16" - 18 NC

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.
