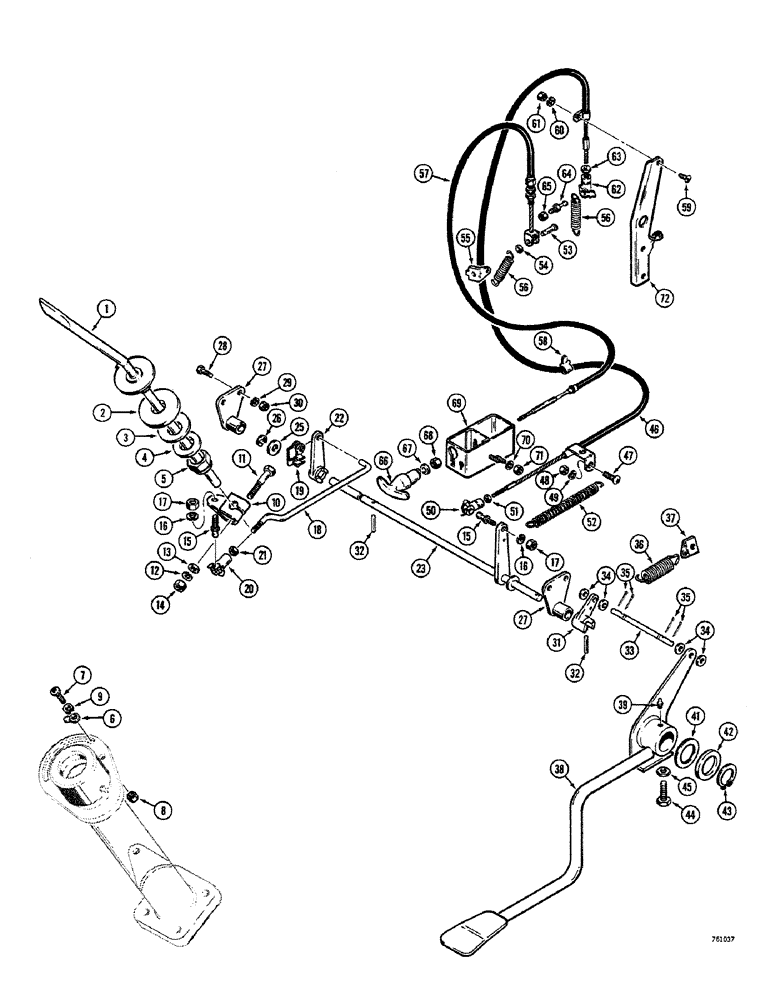

Запчасти Case 380CK (066) - THROTTLE AND FUEL SHUT-OFF CABLE

1

K913384

LEVER

- hand throttle

1шт.

2

K85546

DISC

- friction

1шт.

3

K626740

WASHER

- Belleville, 5/8"

1шт.

4

K19475

WASHER

- lock, 5/8"

1шт.

5

K623003

NUT

- Nyloc, 5/8" BSF

1шт.

6

K910157

WASHER

PAD - stop

2шт.

7

K605633

SCREW

- 1/4" - 20 NC x 1/2"

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

K89372

LEVER

1шт.

11

K600144

BOLT

HHCS - 1/4" - 20 NC x 1-3/8"

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

K19470

WASHER

- 1/4"

1шт.

14

25-104

NUT,1/4"-20, G5

1шт.

15

K621904

BALL JOINT

- 1/4" - 28 NF, ball half

2шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

25-104

NUT,1/4"-20, G5

- 1/4" - 28 NF

2шт.

18

K943482

ROD

- control, hand lever to cross shaft

1шт.

SERIAL NUMBER 11013529 AND AFTER USE K954317 ROD

1шт.

19

K908778

CLIP

- special

1шт.

20

K621903

BALL JOINT

- 1/4" - 28 NF, socket half

1шт.

21

25-154

JAM NUT,Jam, 1/4"-28, G5

- lock, 1/4" - 28 NF

1шт.

22

K928177

LEVER

- cable actuating

1шт.

23

K943480

SHAFT

- cross

1шт.

24

RESERVED

1шт.

25

K19472

WASHER

- 3/8"

1шт.

26

K621587

RING, SNAP

RING - retaining

1шт.

27

K943483

BRACKET

- guide

2шт.

28

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Bracket to tank support Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

25-104

NUT,1/4"-20, G5

4шт.

31

K928178

LEVER

- shaft actuating

1шт.

32

K623747

SPLIT PIN/SAFETY PIN

PIN - Mills, 5/32" x 3/4"

2шт.

33

K943877

ROD

- cross, Serial Range: shaft-pedal

1шт.

34

K19470

WASHER

- flat, 1/4"

4шт.

35

132-3

COTTER PIN,1/16" x 3/8"

PIN, Split (Cotter), 1/16" x 3/8"

4шт.

36

K624928

SPRING

1шт.

37

K942651

SHIM

BRACKET - anchor

1шт.

38

K940308

PEDAL

- throttle

1шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

40

K626440

WASHER

- copper, 1/4", if used, not shown

1шт.

41

K626738

WASHER

SHIM - .030" (0.762 MM)

1шт.

42

K626716

WASHER

- special, 7/8"

1шт.

43

K34454

RING, SNAP

RING - retaining

1шт.

44

K620500

BOLT

- special

1шт.

45

K19440

NUT

- lock, 1/4" BSF

1шт.

46

K943463

CABLE

- throttle control

1шт.

47

K605605

SCREW

- 1/4" - 20 NC x 5/8", cable tube to tank support

1шт.

48

25-104

NUT,1/4"-20, G5

1шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

50

K621901

BALL JOINT

- no. 10 - 32 NF, socket half

1шт.

51

K617080

NUT

- no. 10 - 32 NF

1шт.

52

K624926

SPRING

- return

1шт.

53

K913180

PIN

- clevis

1шт.

54

K19471

WASHER

- flat

1шт.

55

K913184

ANCHOR

- spring

1шт.

56

K624938

SPRING

- return

2шт.

57

K918846

CABLE

- fuel shut-off

1шт.

58

K621672

HOSE CLAMP

CLIP - buckle

4шт.

59

K12189

SCREW

- special

1шт.

60

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

61

K11109

NUT

- special

1шт.

62

K621901

BALL JOINT

- No. 10 - 32 NF, socket half

1шт.

63

K617080

NUT

- No.10 - 32 NF

1шт.

64

K621904

BALL JOINT

- 1/4" - 28 NF, ball half

1шт.

65

25-104

NUT,1/4"-20, G5

- 1/4" - 28 NF

1шт.

66

K947418

HANDLE

KNOB - fuel shut-off

1шт.

67

K12939

WASHER

- special, 3/16"

1шт.

68

K617080

NUT

- No. 10 - 32 NF

1шт.

69

K943270

BRACKET

- fuel shutoff

1шт.

70

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

71

219-16

LUBE NIPPLE,5/16" NPTF

NUT - No. 8 - 36 NF

1шт.

72

K918844

BRACKET

- injection pump controls

1шт.
