Запчасти Case 380CK (065A) - REAR AUXILIARY HYDRAULIC COUPLINGS, BALL CHECK COUPLINGS

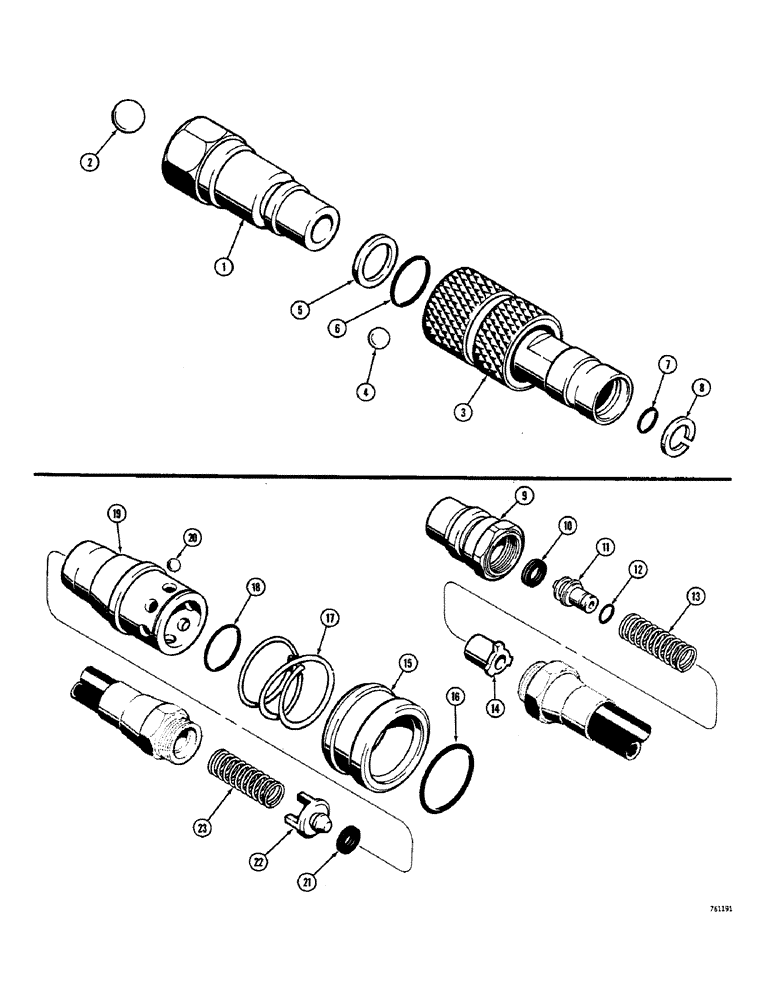

Схема запчастей Case 380CK - (065A) - REAR AUXILIARY HYDRAULIC COUPLINGS, BALL CHECK COUPLINGS

Артикул

Название

Примечание

Количество

A66816

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - hydraulic, male, Includes: Ref. 1 and 2

2шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - coupling

1шт.

2

211-316

BALL,17/32" Dia

- steel, 17/32"

1шт.

A141156

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - hydraulic, female, Includes: Ref. 3 - 8

2шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - coupling

1шт.

4

211-355

BALL

- steel, 3/16"

10шт.

A45281

SEAL KIT

KIT - seal, Includes: Ref. 5 - 8

1шт.

5

A44890

RING

- back-up

1шт.

6

A45236

O-RING,0.796" ID x 1.074" OD x 0.139"

- large

1шт.

7

A45363

SEAL

O-RING - small

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

A28541

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - hydraulic, male, poppet check, Includes: Ref. 9 - 14

2шт.

9

A27356

PIPE FITTING

BODY - couplings, poppet check

1шт.

10

A33964

SEAL

- poppet check couplings

1шт.

Part of Hydraulic Couplings Repair Kit, P/N A40459

1шт.

11

A27508

PISTON

poppet check couplings

1шт.

Part of Hydraulic Couplings Repair Kit, P/N A40459

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- poppet check couplings

1шт.

Part of Hydraulic Couplings Repair Kit, P/N A40459

1шт.

13

A27351

SPRING

- poppet check couplings

1шт.

Part of Hydraulic Couplings Repair Kit, P/N A40459

1шт.

14

51200858

SLEEVE

-poppet check couplings

1шт.

Part of Hydraulic Couplings Repair Kit, P/N A40459

1шт.

A28542

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - hydraulic, female, poppet check, Includes: Ref. 15 - 23

2шт.

15

A27353

SLEEVE

SLEEVE couplings, poppet check

1шт.

16

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - retaining, sleeve, poppet check couplings

1шт.

17

A27354

SPRING

- sleeve, poppet check couplings

1шт.

18

A34848

O-RING

- body, poppet check couplings

1шт.

Part of Hydraulic Couplings Repair Kit, P/N A40459

1шт.

19

A27349

BODY

- coupling, poppet check

1шт.

20

211-7

BALL,1/4" Dia

steel, poppet check couplings 1/4" Dia

8шт.

21

A33964

SEAL

- poppet check couplings

1шт.

Part of Hydraulic Couplings Repair Kit, P/N A40459

1шт.

22

A26215

PISTON

poppet check couplings

1шт.

Part of Hydraulic Couplings Repair Kit, P/N A40459

1шт.

23

A11324

SPRING

- poppet check couplings

1шт.

Part of Hydraulic Couplings Repair Kit, P/N A40459

1шт.

A40459

KIT

- repair, hydraulic couplings, Includes: Ref. 10 - 14, 18 and 21 - 23, poppet check

1шт.

Выбрано товаров: 38
