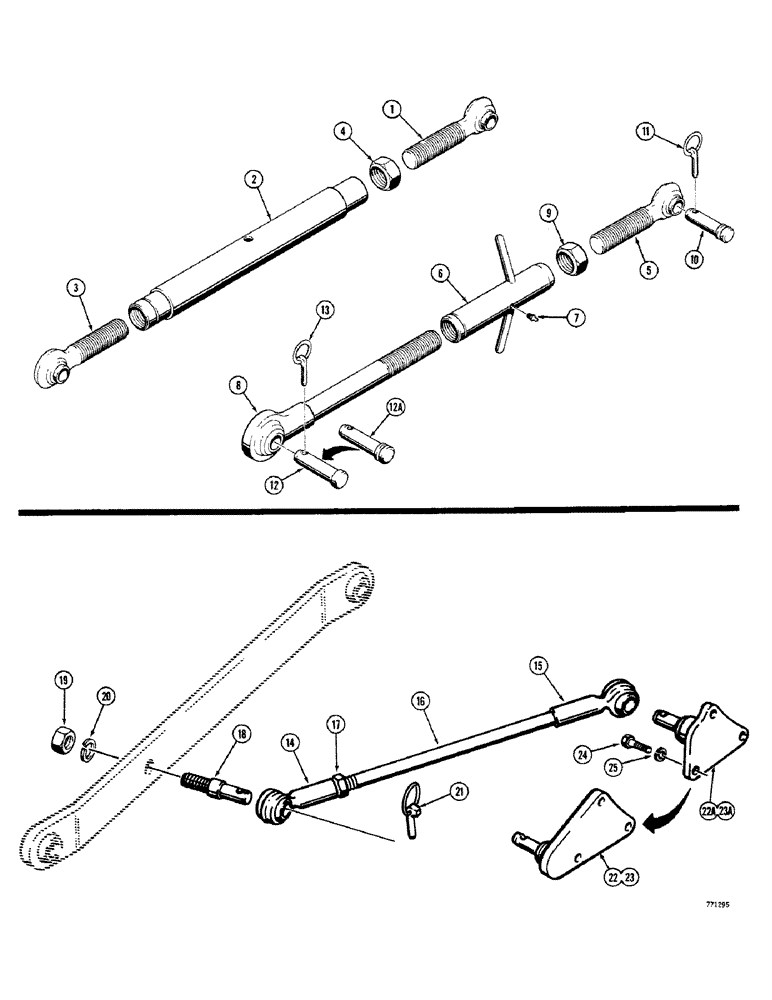

Запчасти Case 380CK (060) - TOP LINK AND STABILIZER BARS, TOP LINK

K927079

LINK

- top, used with category I hitch, Includes: Ref. 1 - 4

1шт.

Category I hitch uses 7/8" (22 mm) dia. lower pins and 3/4" (19 mm) dia. top pin. Category II hitch uses 1-1/4" (29 mm) dia. lower pins and 1" (25 mm) dia. top pin.

1шт.

1

K912362

SCREW

- tractor end

1шт.

2

K927080

TUBE

TURN BUCKLE - center

1шт.

3

K912365

SCREW

- attachment end

1шт.

4

25-1416

NUT,Jam, 1"-8, G5

- hex, jam, 1" - 8 NC

1шт.

K942056

LINK

- top, used with category I-II hitch, Includes: Ref. 5 - 9

1шт.

Category I hitch uses 7/8" (22 mm) dia. lower pins and 3/4" (19 mm) dia. top pin. Category II hitch uses 1-1/4" (29 mm) dia. lower pins and 1" (25 mm) dia. top pin.

1шт.

5

K920796

SCREW

- tractor end

1шт.

6

K920800

TURNBUCKLE

TURN BUCKLE - center

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

8

K942057

SCREW

- attachment end

1шт.

9

K19448

LOCK NUT

- hex, jam, 1-1/4" BSF

1шт.

10

K912936

PIN

- link to sensing unit

1шт.

11

K66408

PIN

- retaining

1шт.

12

K903981

HITCH PIN

PIN - link to category I equipment

1шт.

Category I hitch uses 7/8" (22 mm) dia. lower pins and 3/4" (19 mm) dia. top pin. Category II hitch uses 1-1/4" (29 mm) dia. lower pins and 1" (25 mm) dia. top pin.

1шт.

12a

K65690

HITCH PIN

PIN - link to category II equipment

1шт.

Category I hitch uses 7/8" (22 mm) dia. lower pins and 3/4" (19 mm) dia. top pin. Category II hitch uses 1-1/4" (29 mm) dia. lower pins and 1" (25 mm) dia. top pin.

1шт.

13

K920359

PIN

- retaining

1шт.

K921690

STABILIZER

ASSEMBLY - stabilizer bars, Includes: Ref. 14 - 17

2шт.

14

K912232

BALL

HOUSING - ball, R.H. thread, rear, stabilizer bars

1шт.

15

K912230

BALL

HOUSING - ball, L.H. thread, front, stabilizer bars

1шт.

16

K912234

SCREW,3/4" - 10 x 2 1/4"

BAR - threaded, stabilizer

1шт.

17

25-1412

JAM NUT,Jam, 3/4"-10, G5

- lock, 3/4" - 10 NC, stabilizer bars

1шт.

18

K912228

PIN

- lower link, stabilizer bars

2шт.

19

129-107

NUT,5/8"-11, G5

Stabilizer bars 5/8"-11, G5

2шт.

20

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Stabilizer bars 5/8"

2шт.

21

K920359

PIN

- retaining, stabilizer bars

4шт.

22

K948525

PLATE

BRACKET - left hand, category I-II hitch, stabilizer bars

1шт.

Category I hitch uses 7/8" (22 mm) dia. lower pins and 3/4" (19 mm) dia. top pin. Category II hitch uses 1-1/4" (29 mm) dia. lower pins and 1" (25 mm) dia. top pin.

1шт.

22a

K922654

PLATE

BRACKET - left hand, category I hitch, stabilizer bars

1шт.

Category I hitch uses 7/8" (22 mm) dia. lower pins and 3/4" (19 mm) dia. top pin. Category II hitch uses 1-1/4" (29 mm) dia. lower pins and 1" (25 mm) dia. top pin.

1шт.

23

K948526

PLATE

BRACKET - right hand, category I-II hitch, stabilizer bars

1шт.

Category I hitch uses 7/8" (22 mm) dia. lower pins and 3/4" (19 mm) dia. top pin. Category II hitch uses 1-1/4" (29 mm) dia. lower pins and 1" (25 mm) dia. top pin.

1шт.

23a

K922656

PLATE

BRACKET - right hand, category I hitch, stabilizer bars

1шт.

Category I hitch uses 7/8" (22 mm) dia. lower pins and 3/4" (19 mm) dia. top pin. Category II hitch uses 1-1/4" (29 mm) dia. lower pins and 1" (25 mm) dia. top pin.

1шт.

24

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Stabilizer bars Hex, 1/2"-13 x 3 1/4", G5

6шт.

25

92-8

LOCK WASHER,1/2"

stabilizer bars 1/2"

6шт.

25

92-8

LOCK WASHER,1/2"

stabilizer bars 1/2"

6шт.
