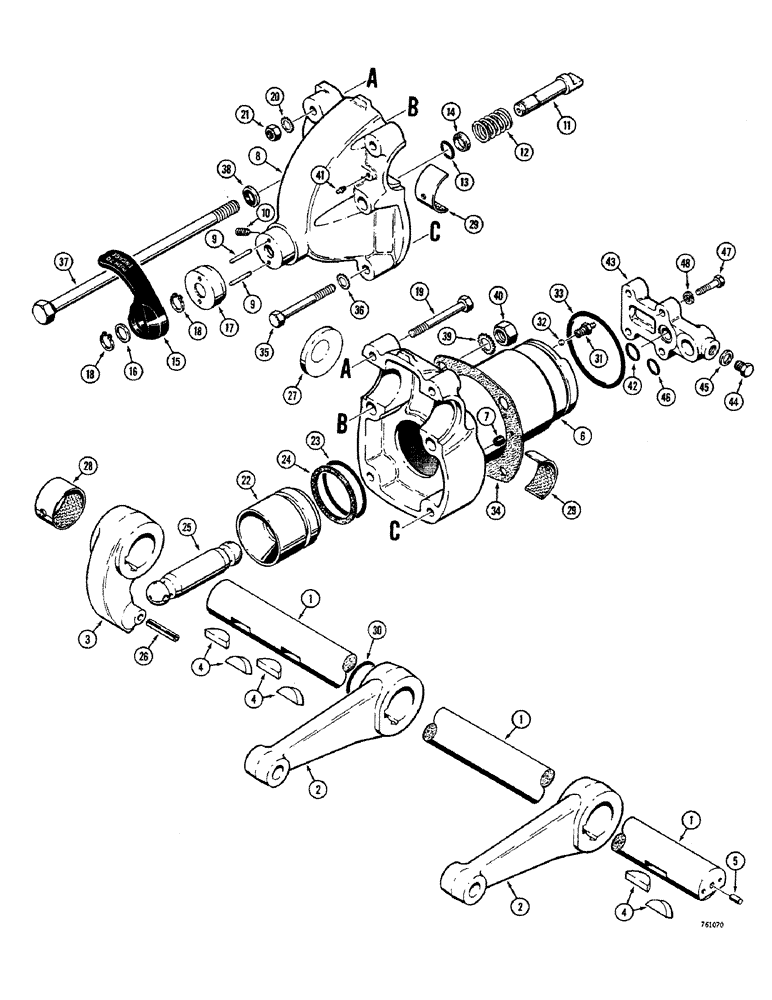

Запчасти Case 380CK (054) - SELECTAMATIC LIFT SHAFT AND CYLINDER

K921719

SHAFT

LIFT SHAFT AND LEVER ASSEMBLY, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - lift

1шт.

2

K906478

ARM

LEVER - lift shaft

2шт.

3

K906796

ARM

LEVER - lift shaft

1шт.

4

K622381

KEY

-, Serial Range: lever-shaft

6шт.

5

K621807

PIN

DOWEL - 5/16" - 1/2"

1шт.

K961748

CYLINDER

BODY AND COVER ASSEMBLY, Includes: Ref. 6 - 21

1шт.

6

NSS

NOT SOLD SEPARAT

CYLINDER BODY

1шт.

7

K924685

RUBBER

RESTRICTER - rubber

1шт.

K961742

COVER

CYLINDER COVER ASSEMBLY, Includes: Ref. 8 - 18

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - cylinder

1шт.

9

K620027

NEEDLE

ROLLER - needle

2шт.

10

K606052

SET SCREW,Hex Skt, 5/16" - 18 x 3/4"

- locating

1шт.

11

K913846

PIN

- latch

1шт.

12

K913436

SPRING

- latch pin

1шт.

13

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- latch pin

1шт.

14

K907061

BUSHING

RING - spacer

1шт.

15

K947974

LEVER ASSY.

LEVER - operating

1шт.

16

K626210

SHIM,.030" Thk

Lever .030" Thk

1шт.

17

K913724

DUST CAP

CAP - protector

1шт.

18

K11290

RING, SNAP

RING - retaining

2шт.

19

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

20

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

22

K907502

PISTON

ASSEMBLY - includes insert

1шт.

23

K623542

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

- piston

1шт.

24

K628050

RING,69.6mm ID x 79.65mm OD x 2.64mm Thk

- backup

1шт.

25

K910106

ROD

- connecting

1шт.

26

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

1шт.

27

K30061

COVER

DISC - shaft end seal

1шт.

28

K912012

BUSHING

- lift shaft end

1шт.

29

K912013

BEARING HALF,50.22mm ID x 54.52mm OD x 30.63mm W

BUSHING - lift shaft, halves

2шт.

30

K623538

O-RING,6.99mm Thk x 50.16mm ID, 60 Duro

- lift shaft

1шт.

31

K910104

SCREW

- vant

1шт.

32

211-208

BALL,5/16" Dia

- steel, 5/16"

1шт.

33

K623566

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

- cylinder body

1шт.

34

K913768

GASKET

- cylinder to rear axle case

1шт.

35

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

36

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

37

K601274

BOLT

HHCS - 5/8" - 11 NC x 12/1-2"

2шт.

38

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - sealing, 5/8"

2шт.

39

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

40

25-1010

NUT,5/8"-11, G5

2шт.

41

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

42

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- cylinder to connector case

1шт.

43

K910107

HYD CONNECTOR

PLATE - connector

1шт.

44

K619527

PLUG

- special, 1/2" - 20 NF

1шт.

45

K15735

WASHER

- sealing, 1/2"

1шт.

46

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- connector plate to tube

1шт.

47

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
