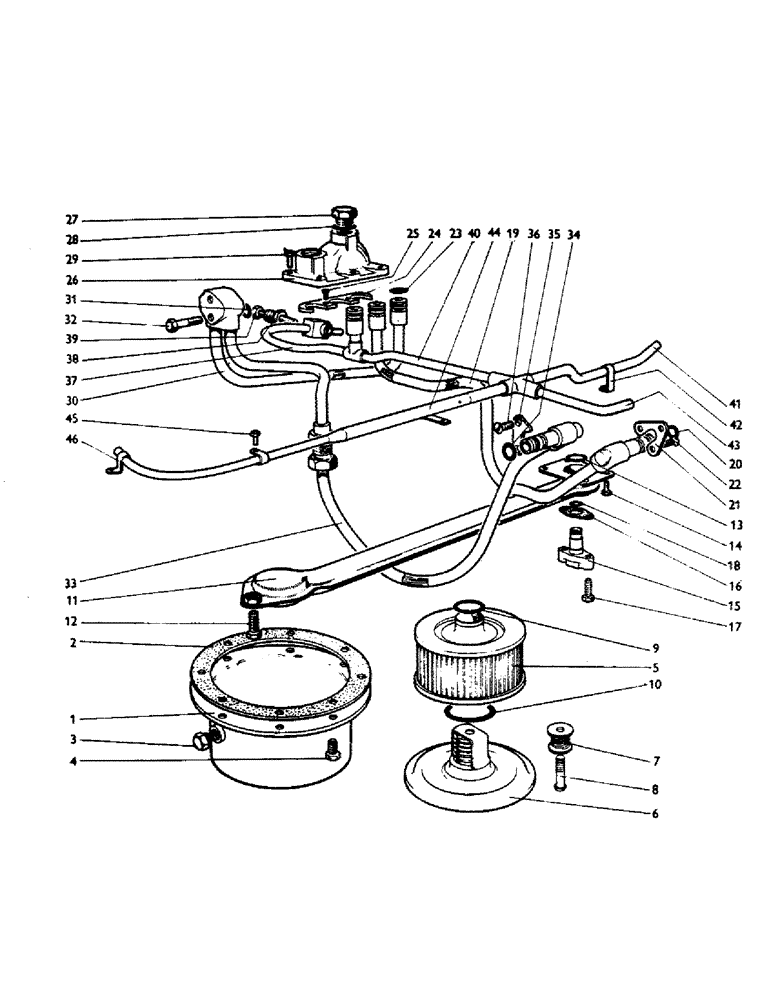

Запчасти Case 380CK (040) - SELECTAMATIC OIL FILTER AND LINE

1

K920520

COVER

- rear sump

1шт.

2

K906764

GASKET

- rear sump cover

1шт.

3

K19581

PLUG

- drain, 1/4" BSP

1шт.

K626765

GASKET

WASHER - sealing, 1/2"

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

K920806

FILTER, ELEMENT

FILTER ASSEMBLY, Includes: Ref. 5 - 11

1шт.

5

K920522

FILTER, ELEMENT

ELEMENT

1шт.

6

K920521

VALVE

SCREEN AND VALVE, Includes: Ref. 7 and 8

1шт.

7

K942788

PLUG

MAGNET

1шт.

8

K624300

SCREW

- magnet retaining

1шт.

K623002

LOCK NUT

- Nyloc

1шт.

9

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O"ring, 1-3/8" I.D.

1шт.

10

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, 2-1/8" I.D.

1шт.

11

K920860

PIPE

TUBE - oil suction

1шт.

12

K602850

SCREW,Set, 5/16" - 18 x 1 1/8", Gr S

HHCS - 5/16" - 18 NC x 1-1/8"

1шт.

K626620

SPRING WASHER

- med. sect. lock, 5/16"

1шт.

13

K15596

RING,3.63mm Thk x 31.34mm ID

SEAL - "O"ring, 1-1/4" I.D., Serial Range: (Tube-pump)

1шт.

14

K12131

BOLT

- special, Serial Range: tube-pump

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

K921214

ADAPTER

- warning lamp switch

1шт.

16

K921220

GASKET

- adapter to PTO case

1шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

K14658

O-RING,0.07" Thk x 0.239" ID

SEAL - "O"ring, 1/4" I.D.

1шт.

19

K915684

TUBE

- pump outlet

1шт.

20

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

SEAL - "O"ring, 5/8" I.D.

1шт.

21

K89170

SHIM

PLATE - clamping

1шт.

22

K603662

SCREW

- 1/4" - 20 NC x 5/8"

3шт.

23

K623557

O-RING

SEAL - "O"ring, 9/16" I.D.

3шт.

24

K915344

WASHER

PLATE - locating

1шт.

25

K603662

SCREW

- 1/4" - 20 NC x 5/8"

2шт.

26

K917127

CONNECTOR, ELEC

PLATE - connector, axle case

1шт.

K619528

PLUG

- 7/8" - 14 NF, oil return

1шт.

K30085

GASKET

WASHER - fiber, 7/8"

1шт.

27

K947236

PLUG

- magnetic, 3/4" NF

1шт.

28

K623589

O-RING

WASHER - sealing, 3/4"

1шт.

K917387

GASKET

- connector plate to rear axle case

1шт.

29

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-3/8"

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

K915687

TUBE

- control valve

1шт.

31

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

SEAL - "O"ring, 7/16" I.D.

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

32

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

33

K928511

TUBE

- union to ram cylinder

1шт.

34

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

SEAL - "O"ring, 5/8" I.D.

1шт.

35

K910105

WASHER

PLATE - clamping

1шт.

36

K603662

SCREW

- 1/4" - 20 NC x 5/8"

2шт.

37

K915339

TUBE

- hydraulic, Serial Range: valve-tee

1шт.

38

K912269

BUSHING

- reducing, axle case

1шт.

129-45

NUT - lock, 1/2" - 13 NC

1шт.

K626577

WASHER

- sealing, 1/2"

1шт.

39

113-107

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5, Full Thd

HHCS - 5/16" - 18 NC x 2-3/4"

1шт.

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

40

K915337

PIPE

TUBE - valve to cross piece

1шт.

41

K913783

PIPE

TUBE - hydraulic, PTO

1шт.

42

K621660

CLIP

CLAMP - tube

1шт.

43

K913785

PIPE,0.5" OD

TUBE - hydraulic, ram cylinder

1шт.

44

K939551

TUBE - hydraulic, gear box

1шт.

45

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
