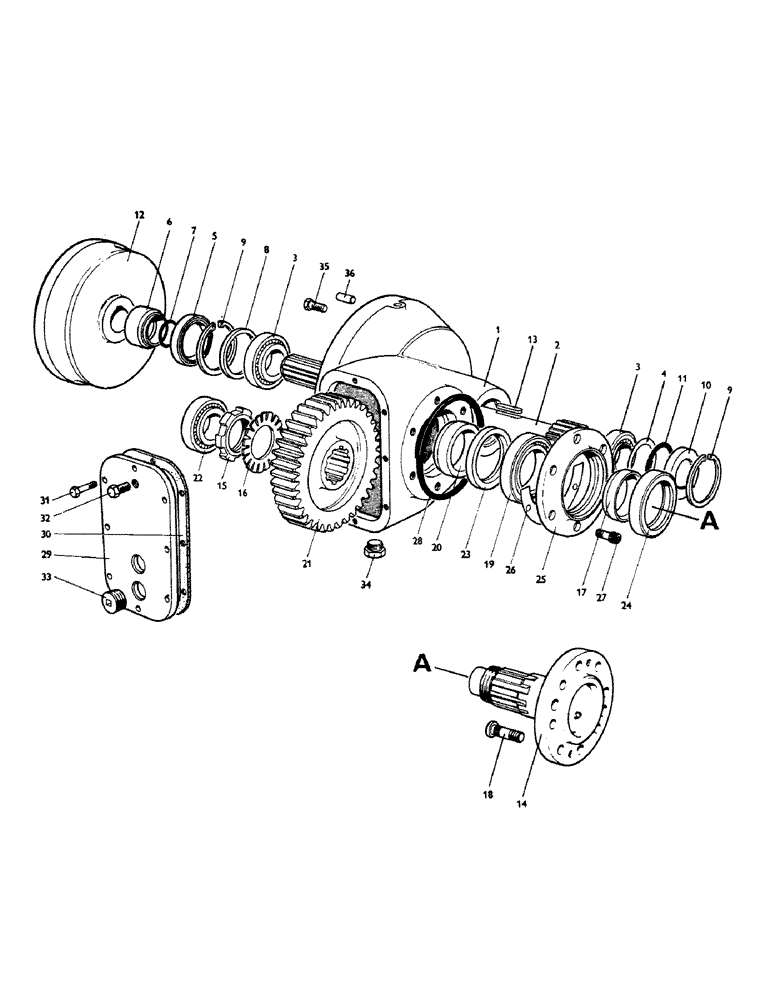

Запчасти Case 380CK (038) - FINAL DRIVE REDUCTION UNITS

1

K929042

CASE

- differential

2шт.

2

K946664

GEAR-SET

SHAFT - spur pinion, 10 teeth (10/37 ratio)

2шт.

3

K19186

BEARING, ROLLER

BEARING - tapered roller

4шт.

4

K907514

SHIM,.003" Thk

1шт.

4

K907515

SHIM,.010" Thk

1шт.

5

K623455

SEAL

- oil

2шт.

6

K929046

COLLAR

2шт.

7

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O"ring, 1-3/4" I.D.

2шт.

8

K904256

SPACER

2шт.

9

K13042

RING, SNAP

RING - retaining, internal (3-1/4")

4шт.

10

K929045

COVER

- end

2шт.

11

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O"ring, 3" I.D.

2шт.

12

K905641

BRAKE

DRUM - brake, 1-3/4" wide

2шт.

13

K19615

KEY

- 11/32" x 1/2" x 2", brake drum

2шт.

14

K963569

SHAFT ASSY.

SHAFT - final drive, Includes: Ref. 15 - 17

2шт.

15

K13368

NUT

- special, 2-1/4" ring

1шт.

16

K13367

WASHER

TAB WASHER

1шт.

17

K905287

SPLIT COLLAR

COLLAR

1шт.

18

K611266

BOLT

- special, wheel mounting

16шт.

19

K19185

TAPERED BEARING

BEARING - tapered roller

2шт.

20

K929048

SLEEVE

- final drive shaft

2шт.

21

K946663

WHEEL

- spur, 37 teeth (10/37 ratio)

2шт.

22

K19186

BEARING, ROLLER

BEARING - tapered roller

2шт.

23

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

- oil, 90 MM x 110 MM x 12 MM

2шт.

24

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil, 3-1/4" x 4-1/4" x 5" (Outer)

2шт.

25

K929044

HOUSING

- oil seal

2шт.

26

K902772

SHIM,.003" Thk

1шт.

26

K902773

SHIM,.006" Thk

1шт.

26

K902774

SHIM,.009" Thk

1шт.

26

K902775

GASKET

SHIM - .015"

1шт.

26

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

-.030"

1шт.

27

K606894

SCREW

BOLT - 7/16" - 14 NC, Wedglock, Serial Range: (Housing-case)

12шт.

28

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O"ring, 6-1/2" I.D. (Housing to case)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

29

K921755

COVER

2шт.

30

K923220

GASKET

2шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

32

K907203

PLUG

- vent, 1/2" - 13 NC

2шт.

K19501

WASHER

WASHER - sealing, 1/2"

2шт.

33

K12362

PLUG

- tapered, 1" BSP

2шт.

34

K628092

PLUG,Cap, .547" OD

- flanged, 1/2" BSP

2шт.

K27935

PLUG - plastic, 1/2" (Stabilizer bracket holes)

6шт.

35

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Case to rear axle Hex, 1/2"-13 x 1 3/8", G5, Full Thd

20шт.

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

20шт.

36

K11482

PIN

DOWEL - 7-16" x 1-1/4" (Case to rear axle)

4шт.
