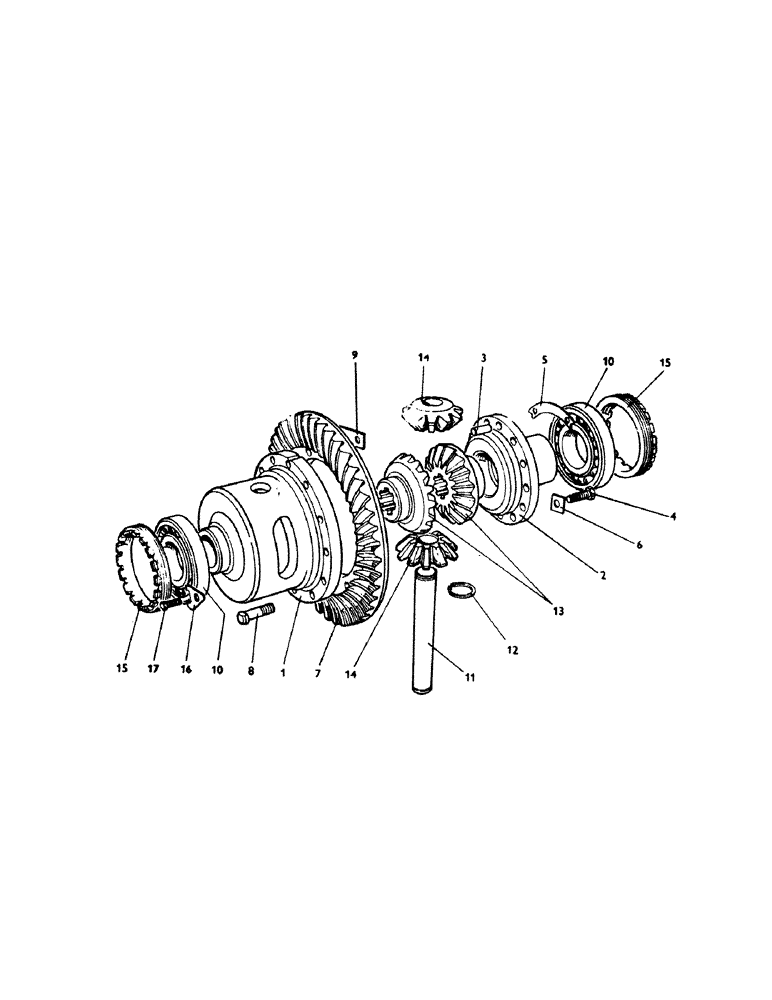

Запчасти Case 380CK (036) - DIFFERENTIAL AND DIFFERENTIAL LOCK

1

K942316

DIFFERENTIAL

CAGE - differential

1шт.

2

K903184

FLANGE

PLATE - end, cage

1шт.

3

K621801

PIN

DOWEL - 3/8" x 3/4"

3шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

9шт.

5

K903185

WASHER

TAB WASHER

3шт.

6

K626372

WASHER

TAB WASHER

1шт.

7

K962960

GEAR

- bevel pinion and spiral (7/43 teeth)

1шт.

8

K905664

WHEEL BOLT

- special, 7/16" - 14 NC

12шт.

9

K30236

WASHER

TAB WASHER

6шт.

25-107

NUT,7/16"-14, G5

- 7/16" - 14 NC

12шт.

10

K19010

BALL BEARING

BEARING - ball

2шт.

11

K942318

PIN

- 1-1/8" dia.

1шт.

12

K12207

RING, SNAP

RING - retaining, external (1-1/8")

2шт.

13

K30234

CONE PINION

GEAR - bevel (16 teeth)

2шт.

14

K942317

DIFFERENTIAL

GEAR - bevel pinion (10 teeth), models w/ poppet check couplings

2шт.

15

K15007

RING, LOCKING

NUT - special, adjuster

2шт.

16

K626420

WASHER

PLATE - lock

2шт.

17

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.
